50+10 uF 50/10 MFD ±5% 370V/440VAC Dual Run Start Capacitor CBB65B Works for AC Unit Fan Motor Start or Heat Pump or Condenser Straight Cool

Product description

1 Explosion Proof Principle

2 Excellent Performance

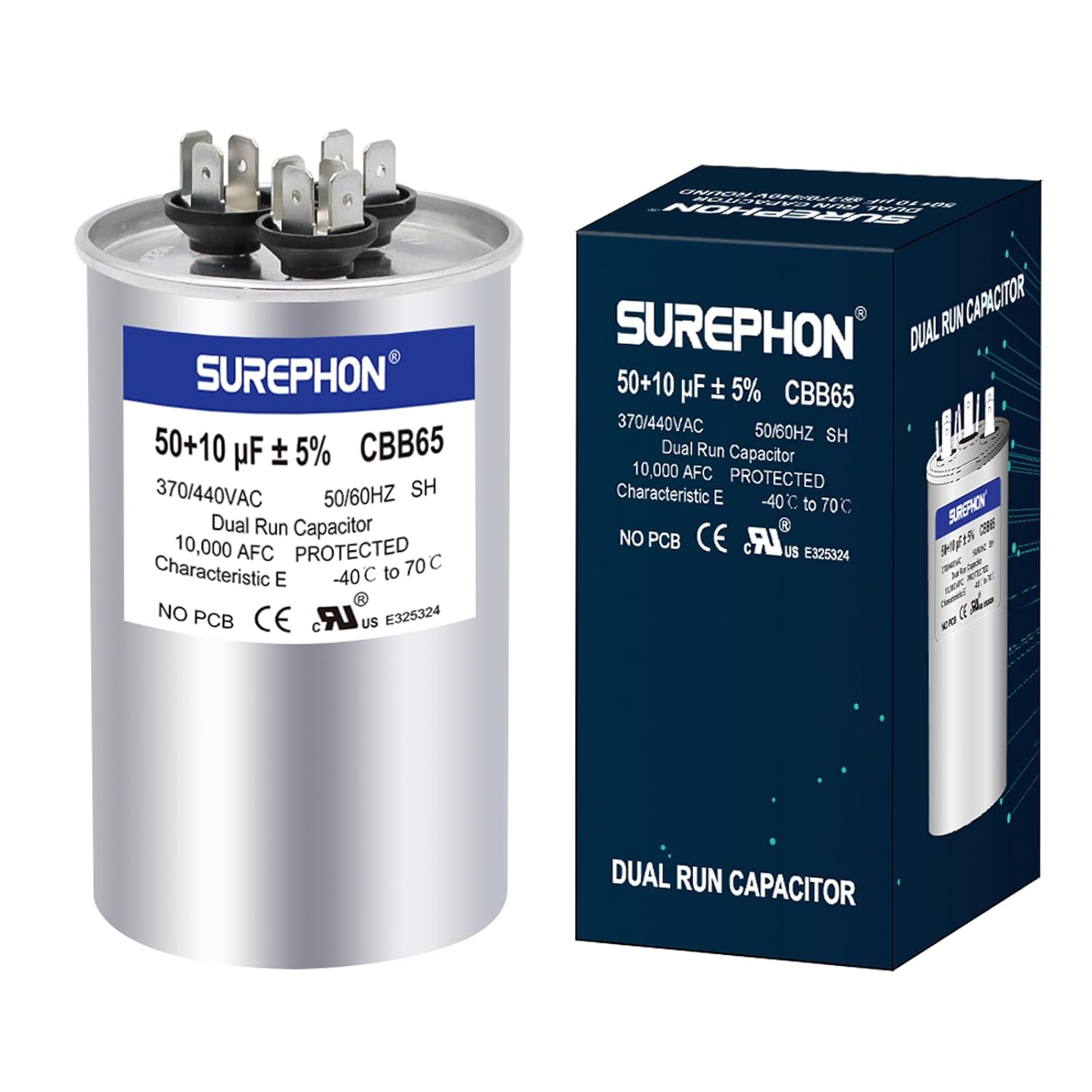

SUREPHON 50+10uF ±5% 370V/440V CBB65B Dual run circular start capacitor, A Class, 10000 AFC.

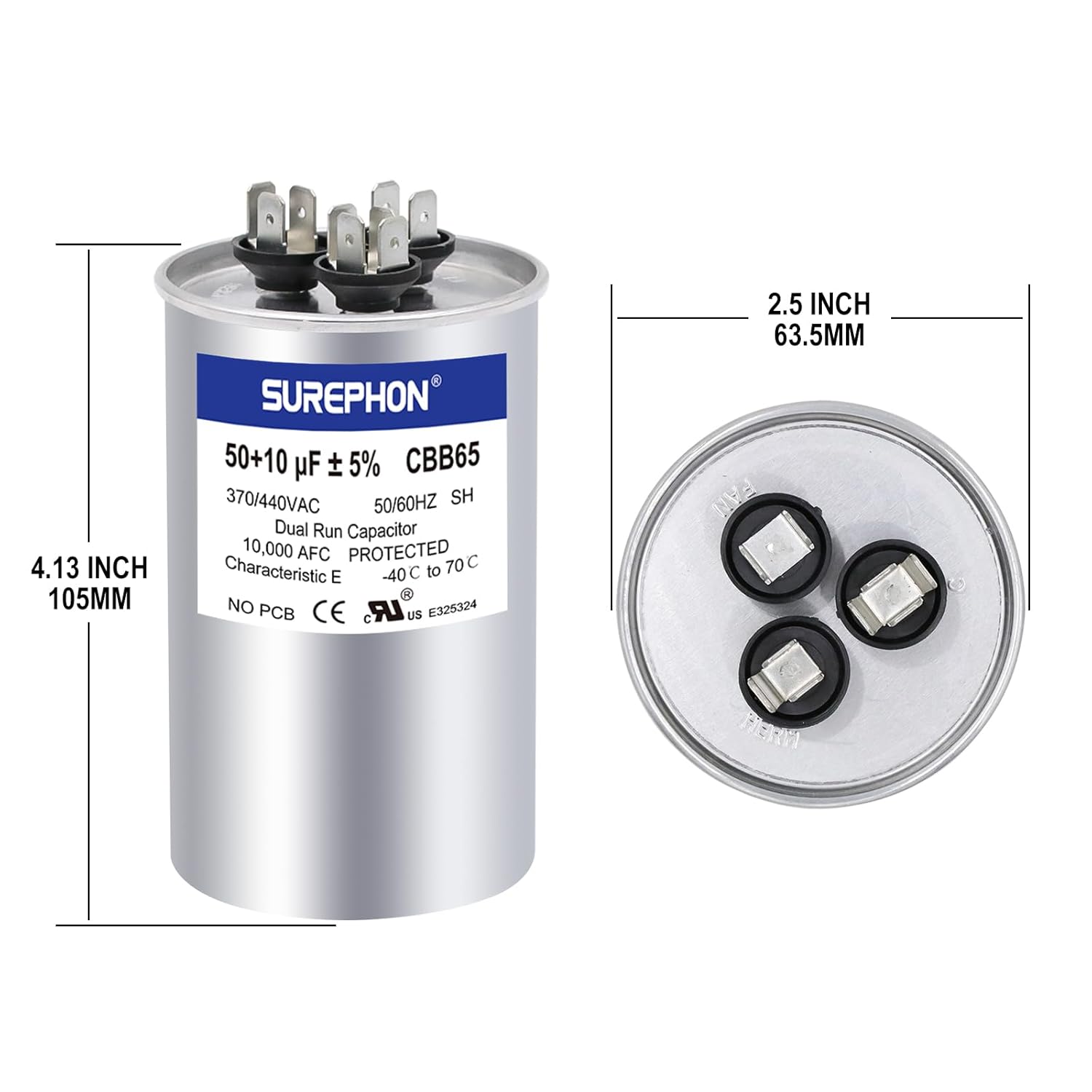

50+10 uF CBB65B capacitor Diameter (63.5 mm/2.5 inches) Height (105 mm/4.13 inches) .

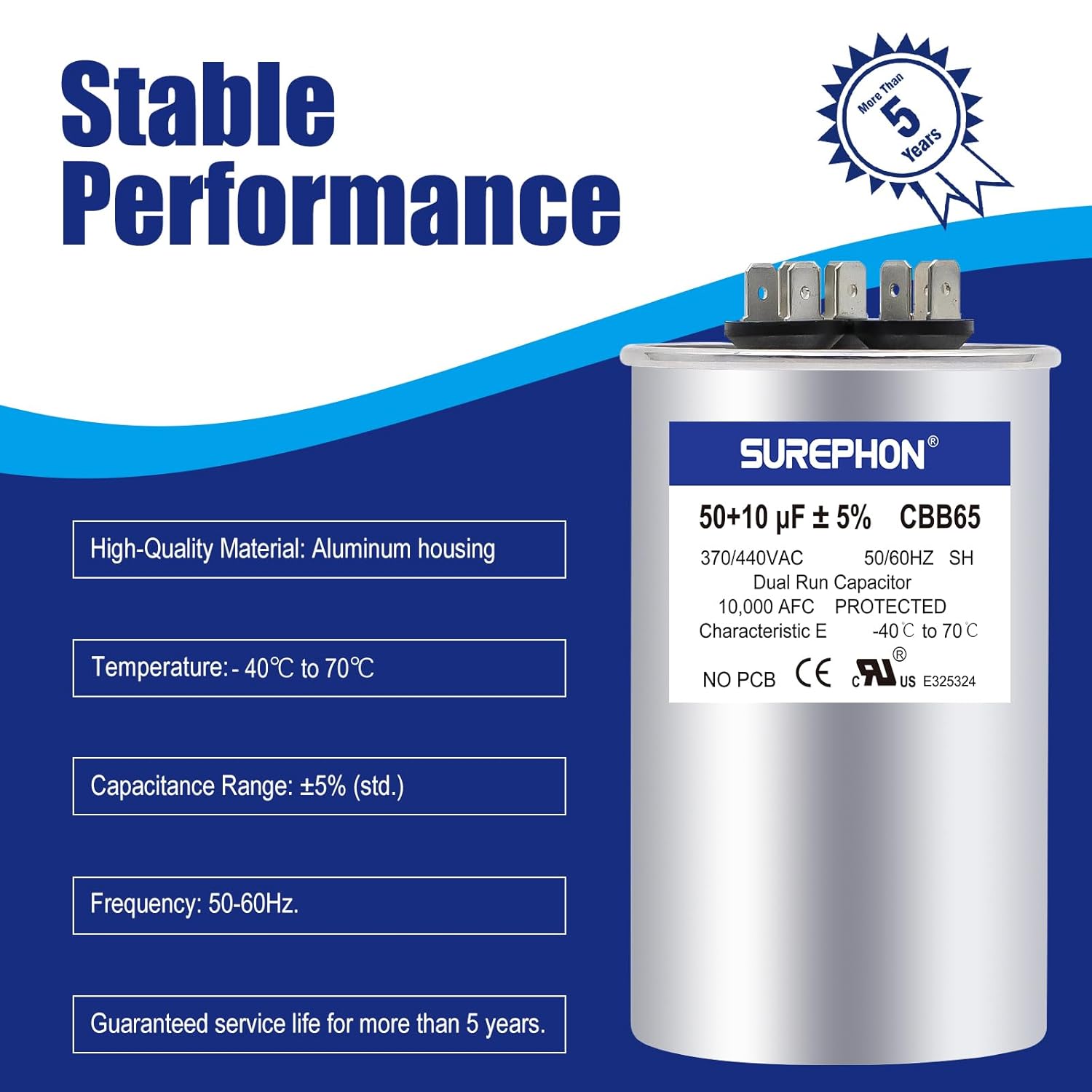

Capacitance Range: ±5% (std.). Frequency: 50-60Hz. Operating Temperature Range: -40°C to +70°C / -104°F to +158°F
Built to the TOUGHEST U.S. standards for AC motor run capacitors. Designed to the highest standards – meets EIA-456-A and IEC 60252-1:2001 specifications. With UL certificate:E325324 (Certificate No.)

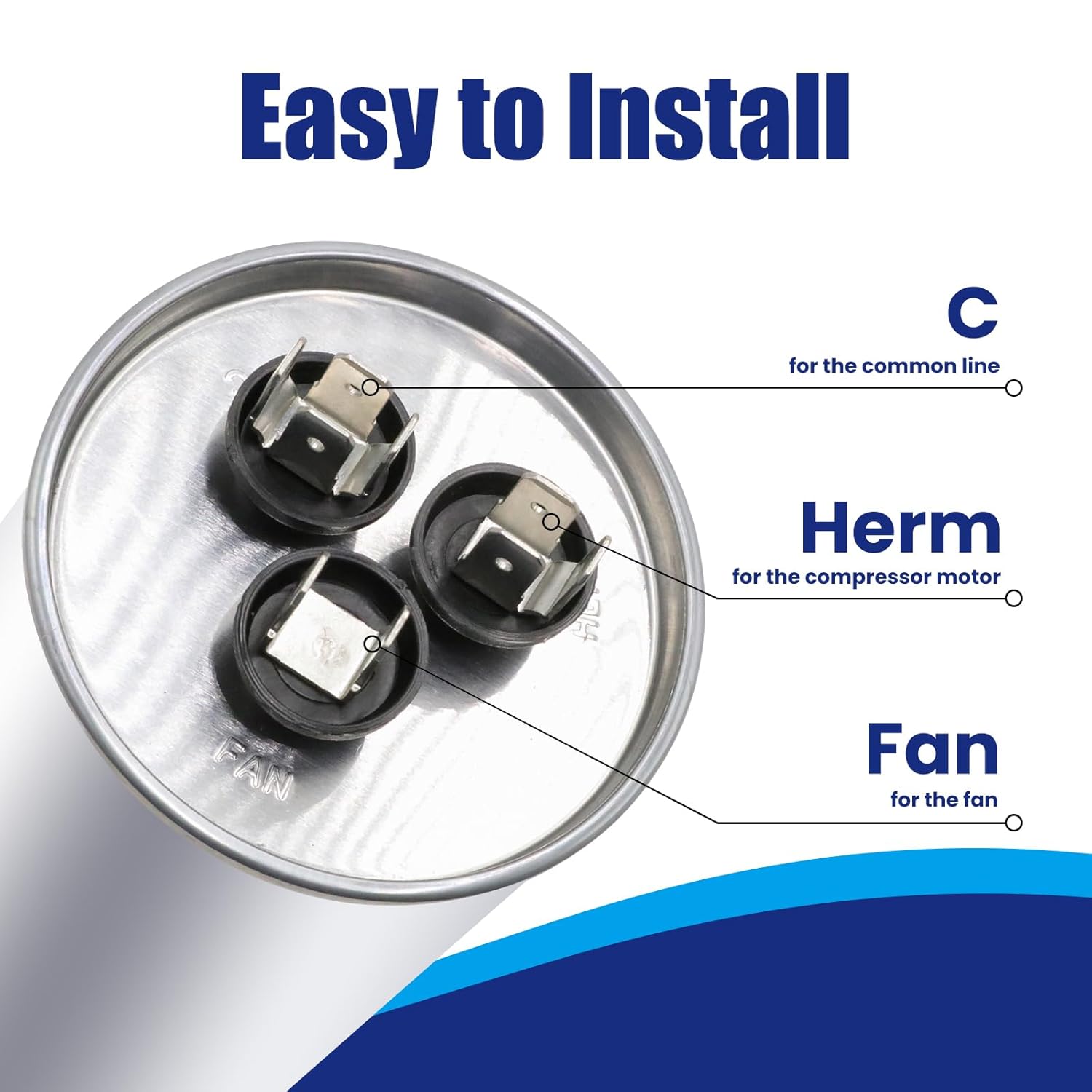

No wiring or adapter changes are required. Three terminals on the top are labeled “Herm”/”H” for the compressor motor, “Fan”/”F” for the fan, and “C” for the common line.

Product summary
