697978 01919 Carburetor for Troy-Bilt 030343 030476 5000 5550 Watt Generator Compatible with Briggs and Stratton Nikki 697978 695114 695115 793779 692475 10hp 305cc Engine

Product description

Pro Chaser PC210591378 Carburetor Package

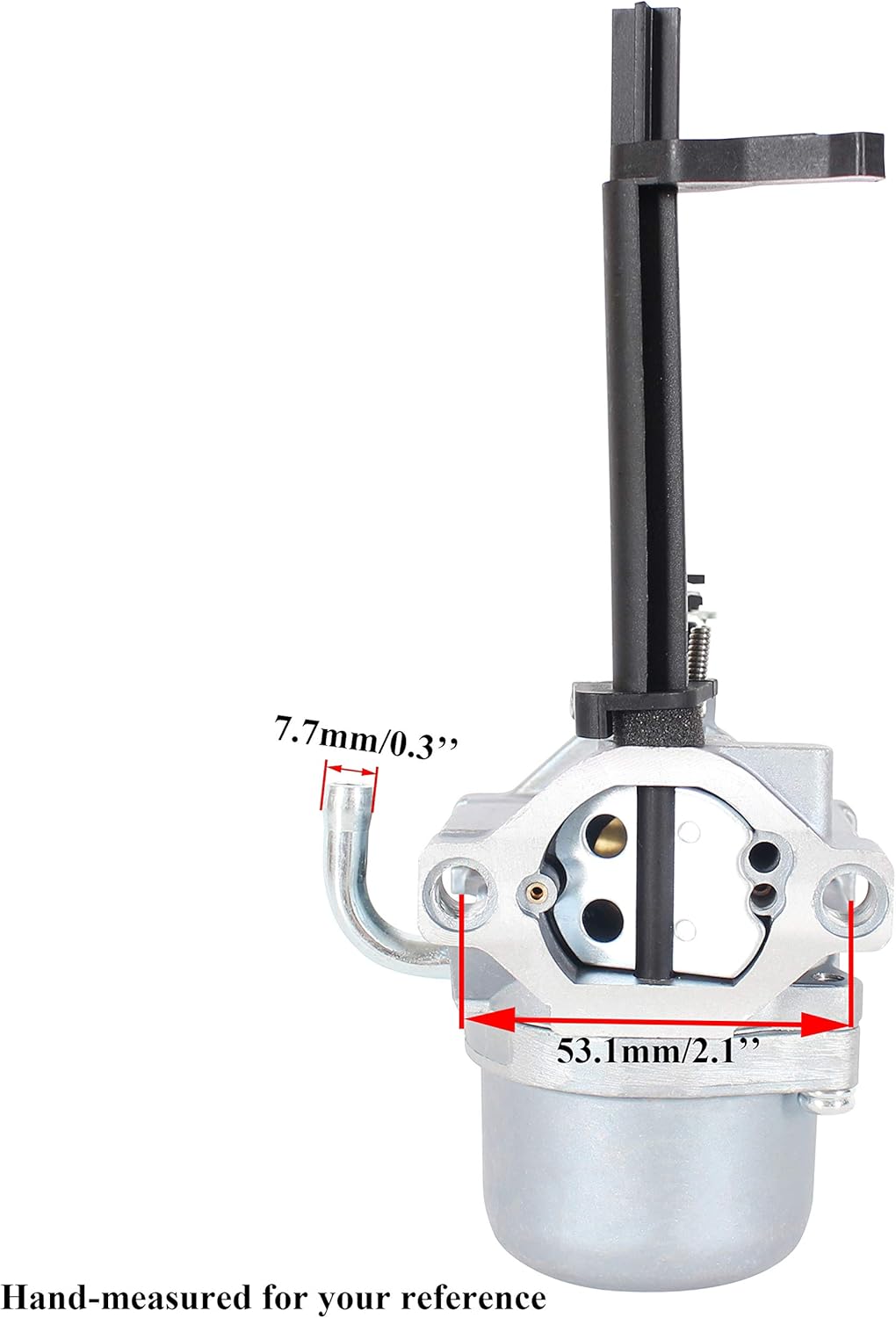

Center to center mounting hole distance: 53mm / 2.1”

Fuel Nozzle O.D.: 7.7mm / 0.3”

Replaces BS part number 591378 697978 796321 696132 696133 796322 699958 697351 699966 698455 695918 694952 695919 695330 796323 695920 695328

Center to center mounting hole distance: 53mm / 2.1”

Fuel Nozzle O.D.: 7.7mm / 0.3”

Replaces Craftsman 580.325600 580.325601 580.326301 580.325610 GeneratorReplaces Briggs & Stratton 030430 030430B 01646 Storm Responder 5500 Generator

Package comes with all parts listed below:

1 x Carburetor2 x Gaskets & 1 x Insulator1 x Fuel Filter1 x Spark Plug1 x Fuel Hose2 x Clamps1 x Safety Switch (low oil alert)1 x Shut Off Valve1 x Air Filter & 1 x Pre Filter1 x Accessory Kit

This kit includes four different choke levers. Please install the choke lever that best fits your needs.

To replace the choke lever, follow these steps:

First, use a pair of pliers to firmly pull the butterfly valve towards yourself. This will allow you to remove the original choke lever.To install the new choke lever, simply reverse the process.Select the choke lever that matches your machine, install it onto the carburetor, and then push the butterfly valve back into place.

Carburetor Compatible with Briggs and Stratton Nikki 695114 694615 695115 697978 697798
Carburetor fits Troy-Bilt 01919 030343 030476 030343B 030475A 030475 5000 5550 Watt Generator
Steps to Change the Choke Handle: Use pliers to grip the choke plate (or butterfly) and pull it out. The plate is secured in a slot on the plastic shaft. Once removed, you can replace the shaft with the model that fits your needs.

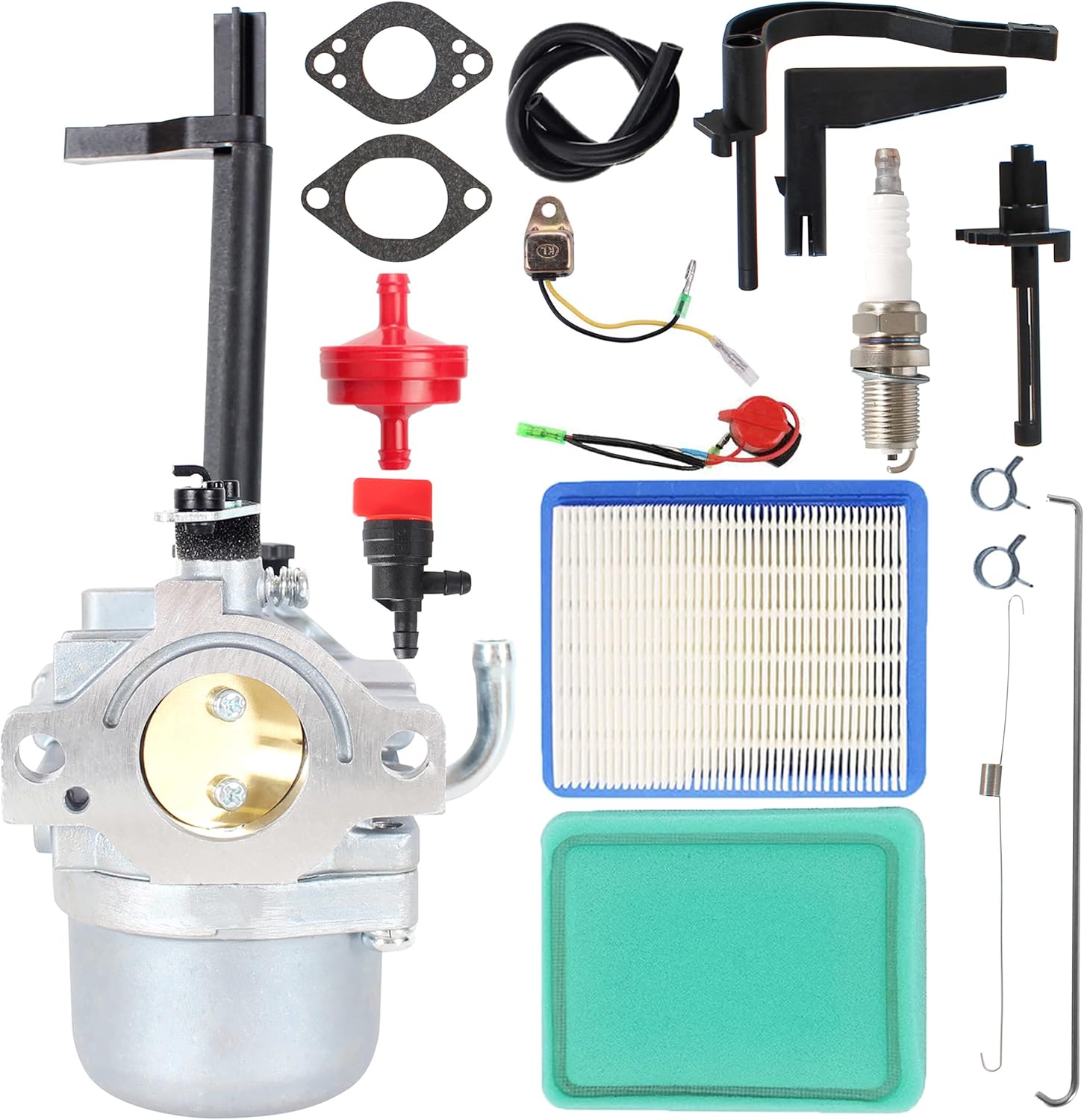

Package comes with 1 * carburetor, 2 * gaskets, 1 * fuel filter, 1 * spark plug, 1 * fuel hose, 2 * clamps, 1 * insulator, 1 * safety switch (low oil alert), 1 * Shut Off Valve, 1 * air filter, 1 x Accessory Kit as shown in the picture
