Acegoo DC 12V Light Dimmer, Rotary Dimming Switch for RV Boat Truck LED Lighting, Halogen, Incandescent, Strip Lights, Rated 6A

For new custom installations or RV truck boat light fixtures upgrade projects, create dimming lighting ambiance and save battery power drain.

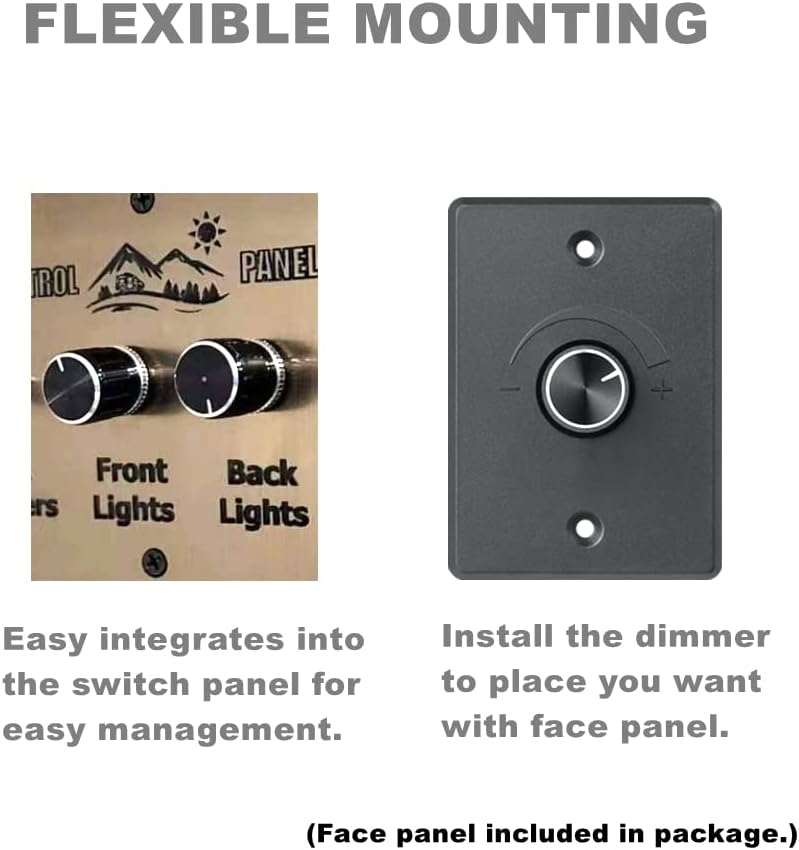

Custom Mount – Small size design easy mount on OEM custom control panel for convenient control and management.
Independent Mount – You can mount the dimmer where you want independently with face panel (panel included in package).
Built-in off switch – The dimmer itself has off position, no need add extra on/off switch to control the light on/off.
Versatile – Widely used in RV boat trailer camper van truck motorcycle or anywhere 12 volt DC power is present.
Important::
The dimmer switch need connecting to light fixture negative and power ground wire to work.
Specification:
Rated Current: 6 Amps
Input Voltage: DC12V
Dimmer Type: PWM dimming
Compatible: LED lights, incandescent, halogen

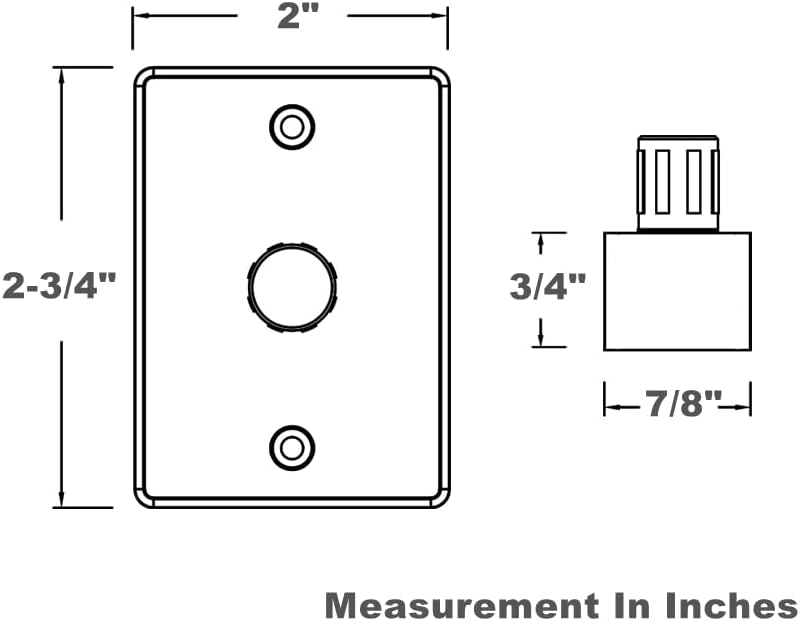

Cutout: 1″ x 3/4 ” x 1″ (Depth)
Dimension: 1″ (W) x 1”(L) x 1-1/2”(H)
Front Plate: 2-3/4″ (W) x 2″ (L)
Packing List:
1 x Dimmer Switch
1 x Front Plate
1 x Instruction

For 12V DC Circuit: Rated 6A, compatible with LED lighting, incandescent, halogen or anywhere 12 volt DC power is present

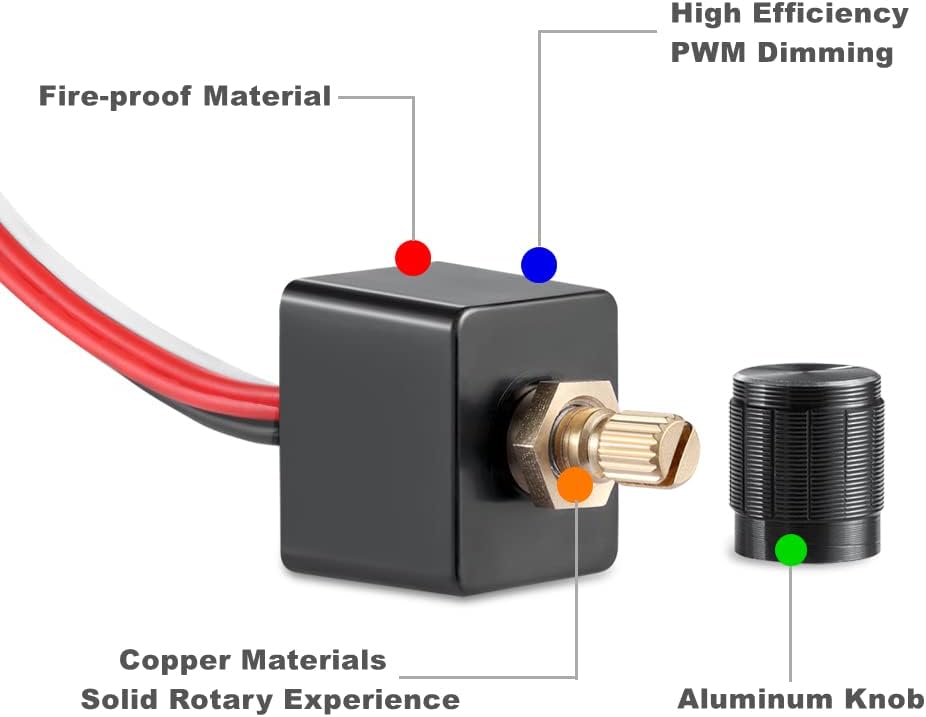

PWM Dimming: Pulse width modulation dimming control, reduce heat and raise energy efficiency, no buzz and flicker-free dimming
Easy to Connect: Clear 4 wires configuration, 2 power input wires, positive and negative, 2 output wires to lamp positive and negative

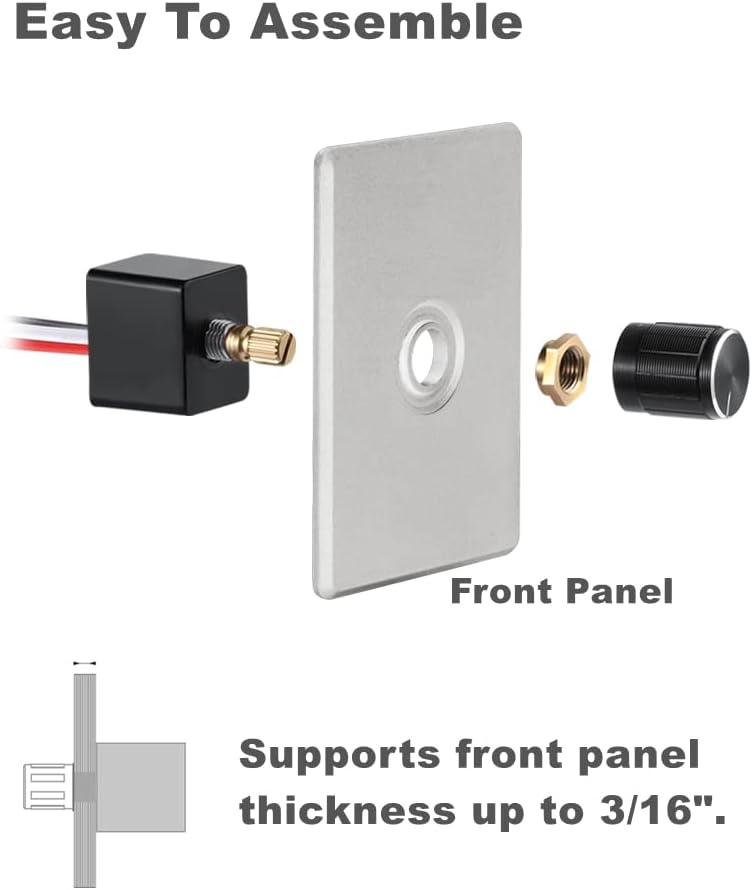

Easy to Install: Compact size easily integrated into custom control panel or install it independently with front panel (included in package)
Easy to Use: Rotate the knob to smooth adjust the brightness from full bright to the lowest dim setting, finally a click sound of turning off
