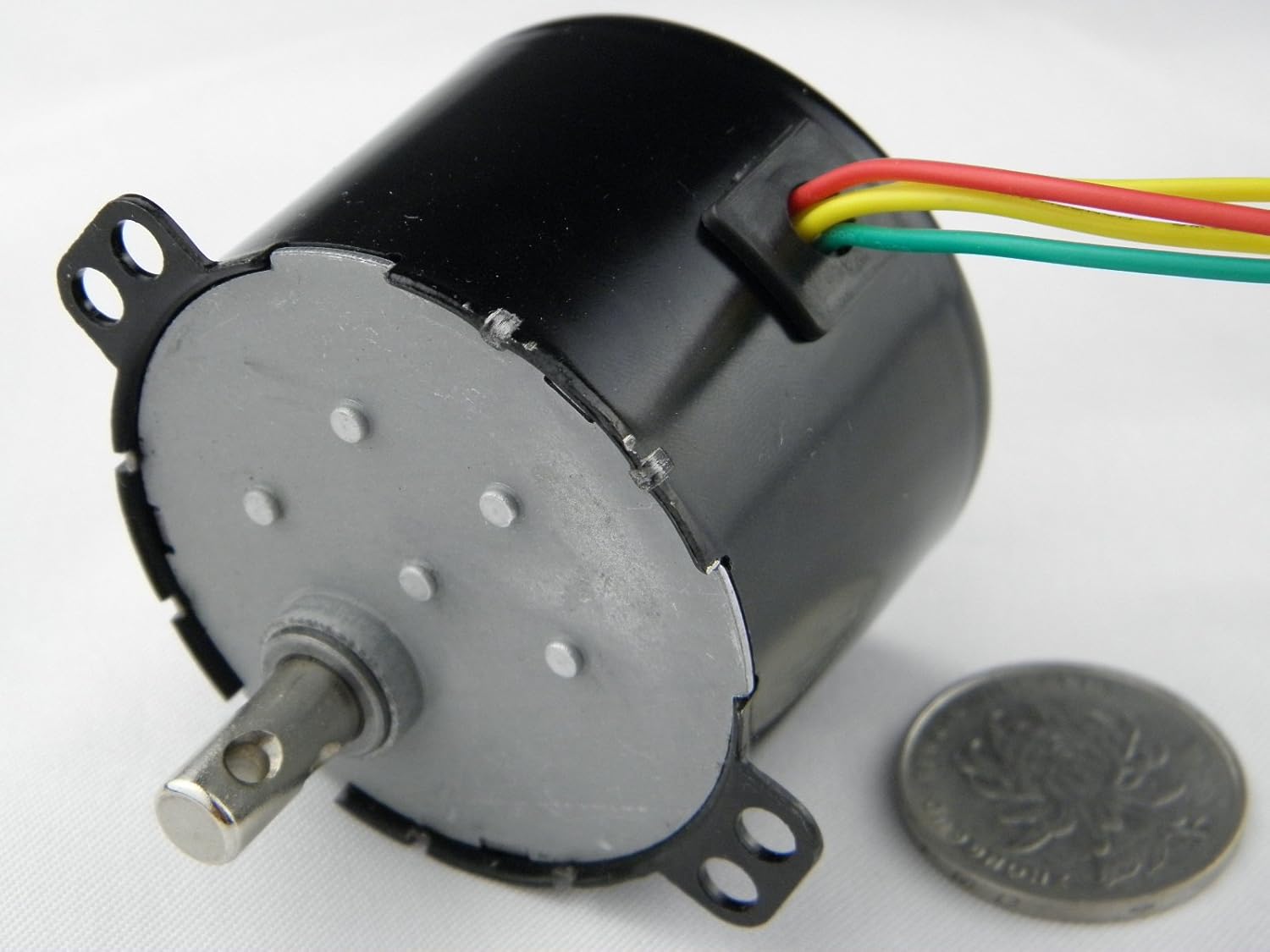

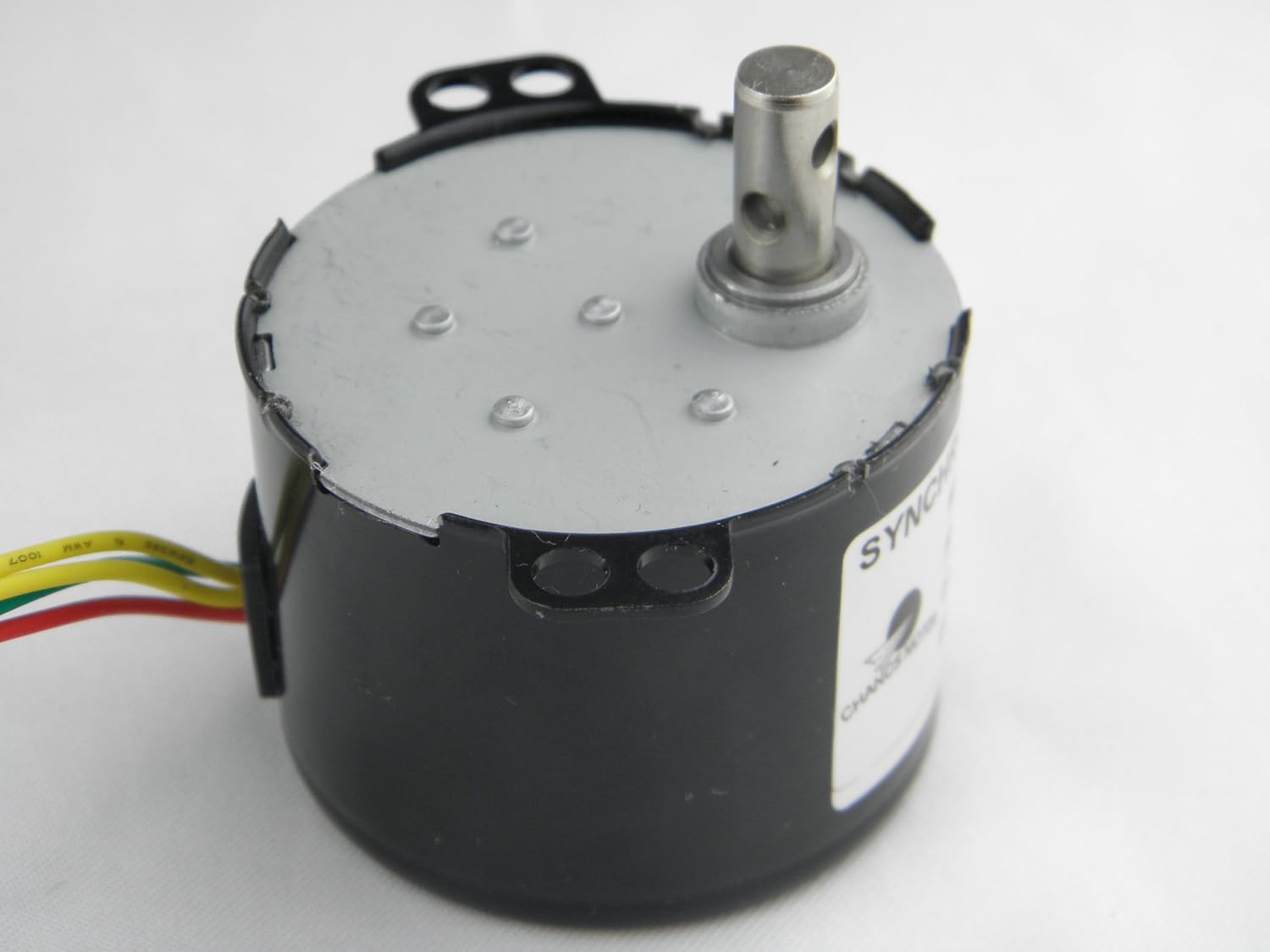

CHANCS 50KTYZ AC 110V 20/24RPM Synchronous Motor Geared 7W CE Pass Gear Motor

Product description

Low Noise, Good Quality

Less noise, quieter motor operation.

Small Size, Big Torque

Motor length 57mm, thickness 38mm. Maximum torque up to 30Kgf.cm.

Motor Steering Controllable

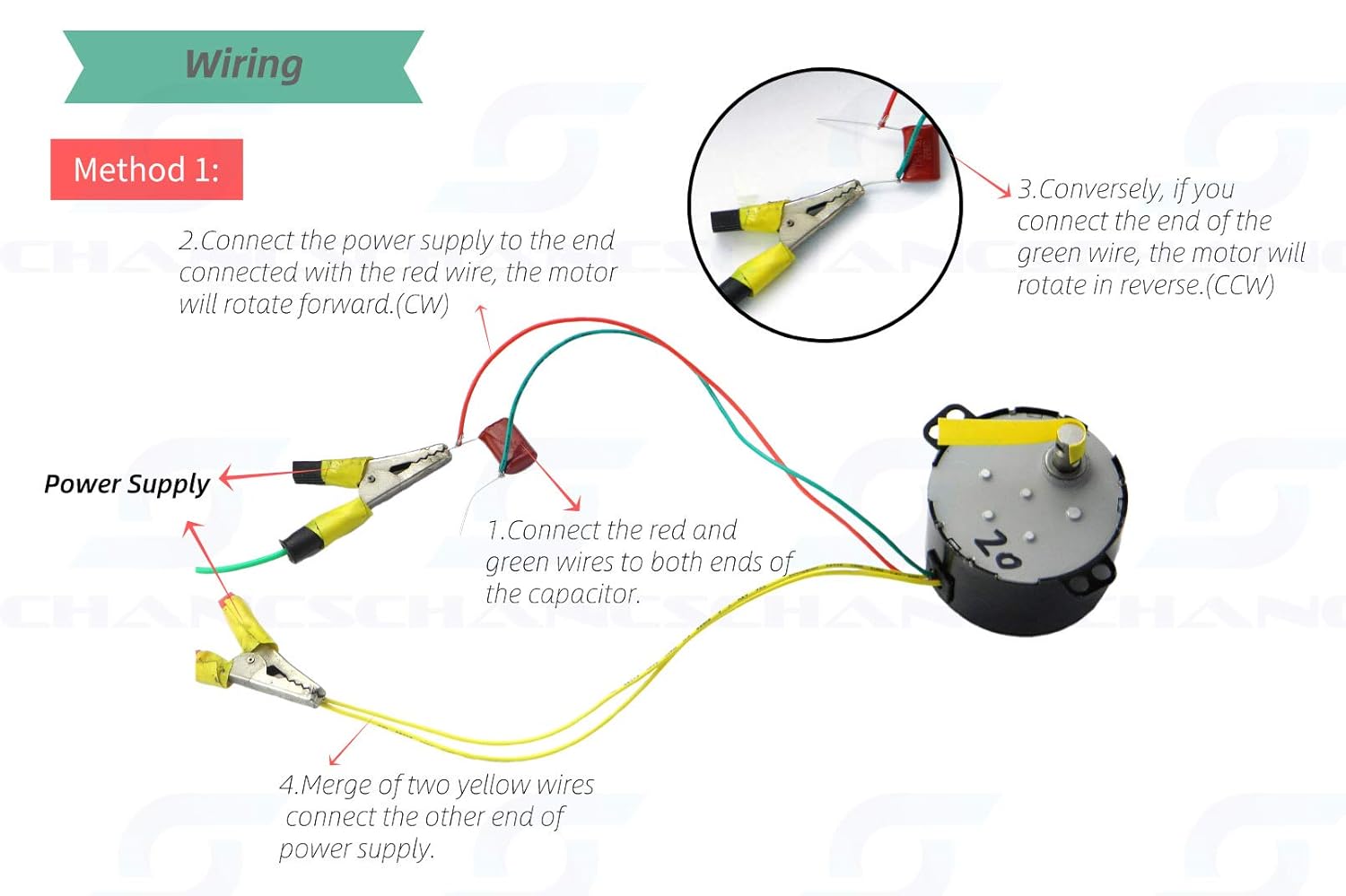

Motor steering can be controlled by changing the wiring.

Easy to Install

Small weight, easy to install and use.

Speed:

1-1.2RPM2.5-3RPM5-6RPM10-12RPM20-24RPM30-36RPM50-60RPM100-120RPM

Specification:

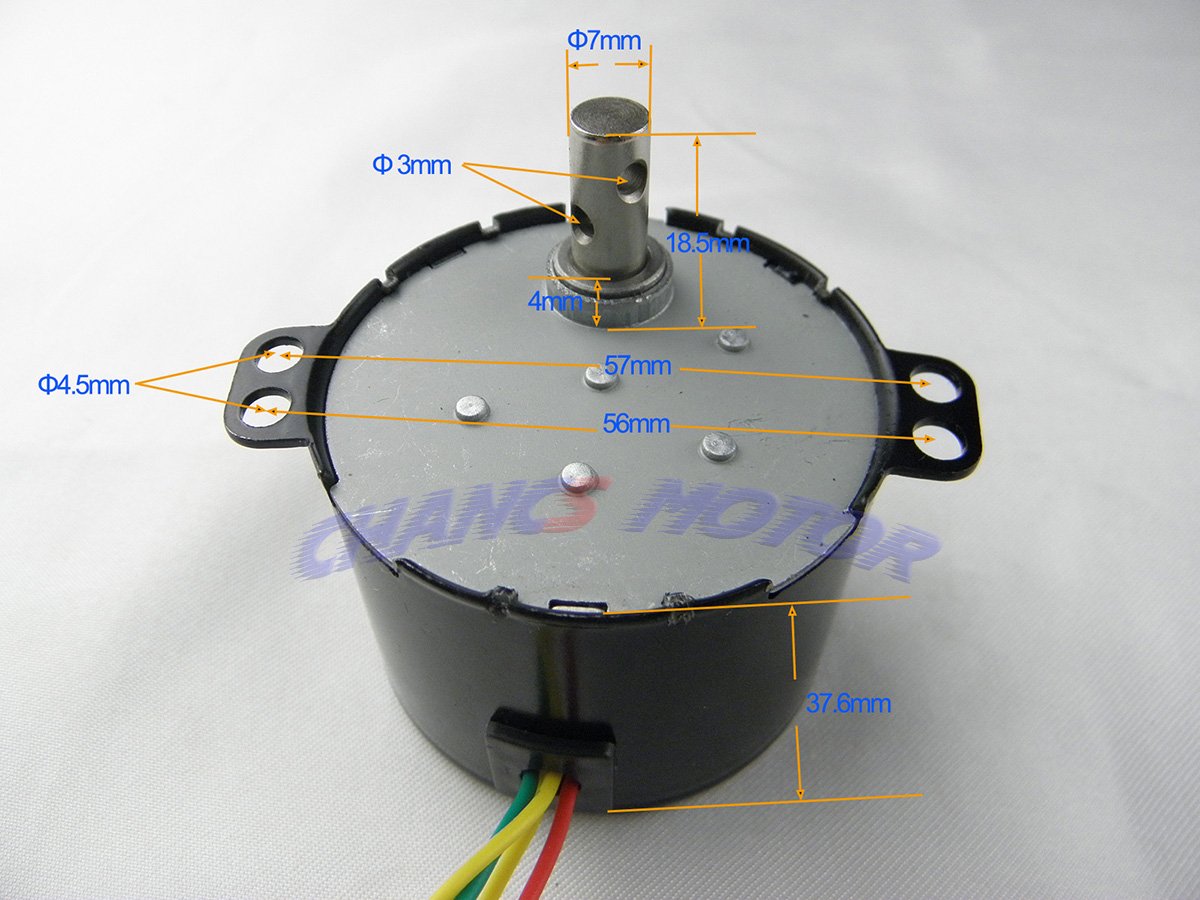

Shaft Diameter: 7mm ；

Shaft Length: 14.5mm ；

Working Voltage: AC 110V ；

Frequency: ~50/60Hz ；

Power: 6W ；

Capacitor: 0.56uF ；

Rotation: CW/CCW (controllable)

Package:

1 x Synchronous Motor1 x Capacitor

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars 13

4.0 out of 5 stars 208

4.1 out of 5 stars 301

4.5 out of 5 stars 1,889

4.2 out of 5 stars 1,757

Price

$9.99$9.99 $11.99$11.99 $26.99$26.99 $12.99$12.99
— no data

Size
30*20*55(mm) 65*65*65(mm) 50*50*60(mm) 57.5*57.*5*20.8(mm) 49.5*18.7(mm)

Shaft Length
no data
no data
25mm 16mm 35mm

Voltage
no data
no data
110V 110V 12V AC

Speed
no data
no data
1.5RPM 5-6RPM 5RPM

Torque
no data
no data
100Kgf.cm 4.8Kgf.cm 0.5Kgf.cm

【Description:】This is a 50KTYZ 110V 20-24RPM CW/CCW synchronous motor, this motor is a high torque motor,can work for a longt time. Low noise and more robust. This synchronous motor is stable, durable, and compatible. We promise we will tested ever motor before shipment.
【Specification:】 Shaft Diameter: 7mm ； Shaft Length: 14.5mm ； Working Voltage: AC 110-130V ； Speed: 20-24RPM ； Frequency: ~50/60Hz ； Power: 7W ； Capacitor: 0.56uF ； Tourque: ≤3.5Kgf.cm； Rotation: CW/CCW (controllable)；
【Application:】An good motor for household, hand-made, school project, model, light, AD and anything you want. Mainly used in instrument, automation, gluing machine, stage lamps and advertising display equipment, curtain automatic control, automatic voltage regulator, electric image, etc.
【Attention:】 1.When the motor is running, it will hot, please do not touch it, It is normal that the motor becomes hot during motor working (the surface temperature may reach to 80-90℃ ). It does not affect the use, please do not worry. 2.Motor shaft, line length, speed, voltage can be designed according to customer requirements. If you need other models of motor, you can contact us. Welcome to bulk purchase and OEM orders!

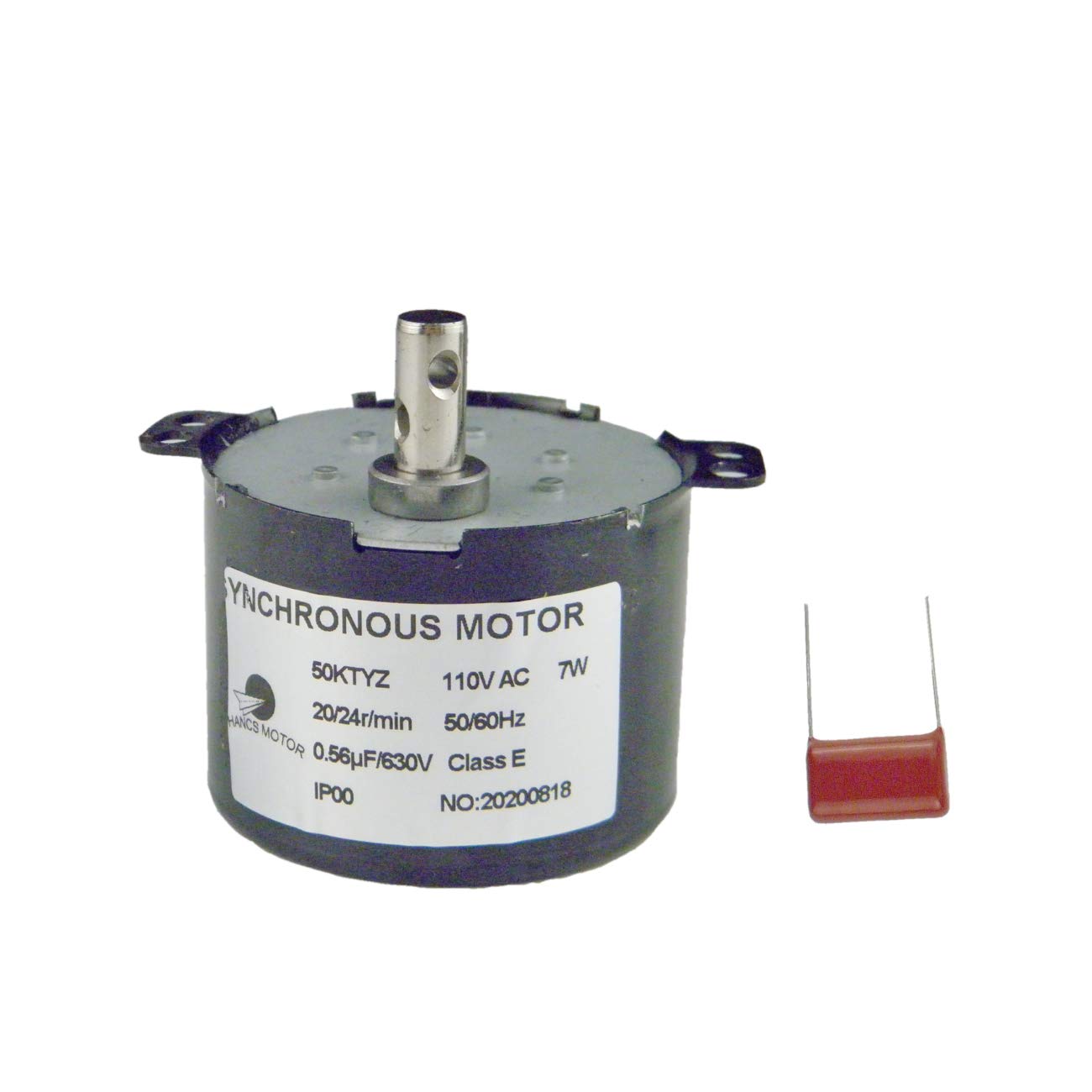

【Package:】1 x Synchronous Motor, 1 x capacitor
