ECO-WORTHY Solar Connectors Y Branch 1 to 4 Parallel PV Adapter Cable Wire Plug Tool Kit for Solar Panel(M/FFFF and F/MMMM)

From the brand

Back in 2007,three engineers realized that independent clean energy could change our life.So they decided to devote themselves into it.From then,they initiated the exploration in Solar Energy and established the brand ECO-WORTHY.

After 16 years of consecutive R&D,they have built their own factory and production chain now,and take the lead in selling lithium batteries.ECO-WORTHY has become a mature brand with a place in internationaI markets.

Solar System Connectors

Solar System Connectors

Solar Charge Controller

Solar Cables

Solar Cables

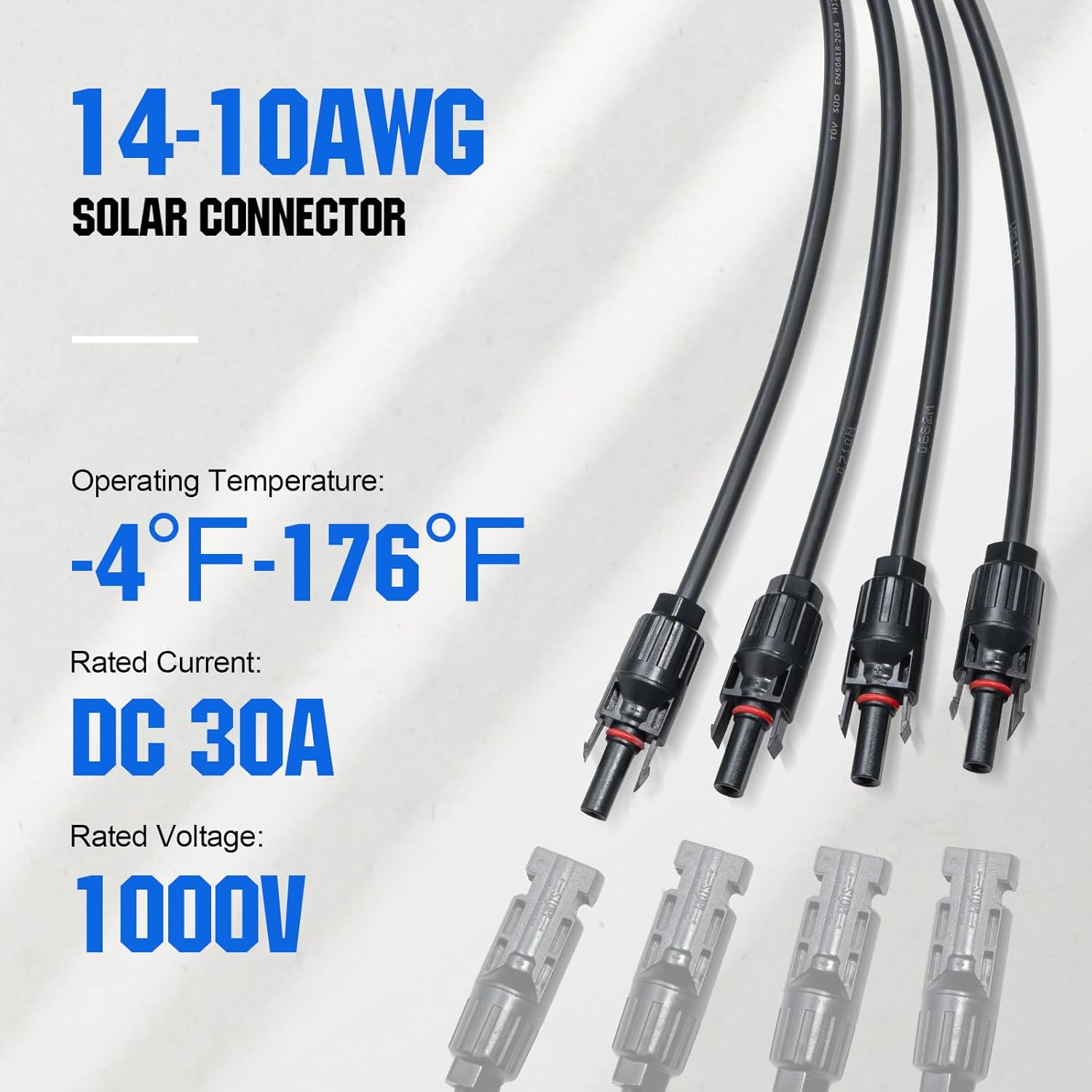

Y Branch Parallel Connector: 1 male to 4 female and 1 female to 4 male solar connectors can connect 4 solar panels in parallel to provide greater power usage

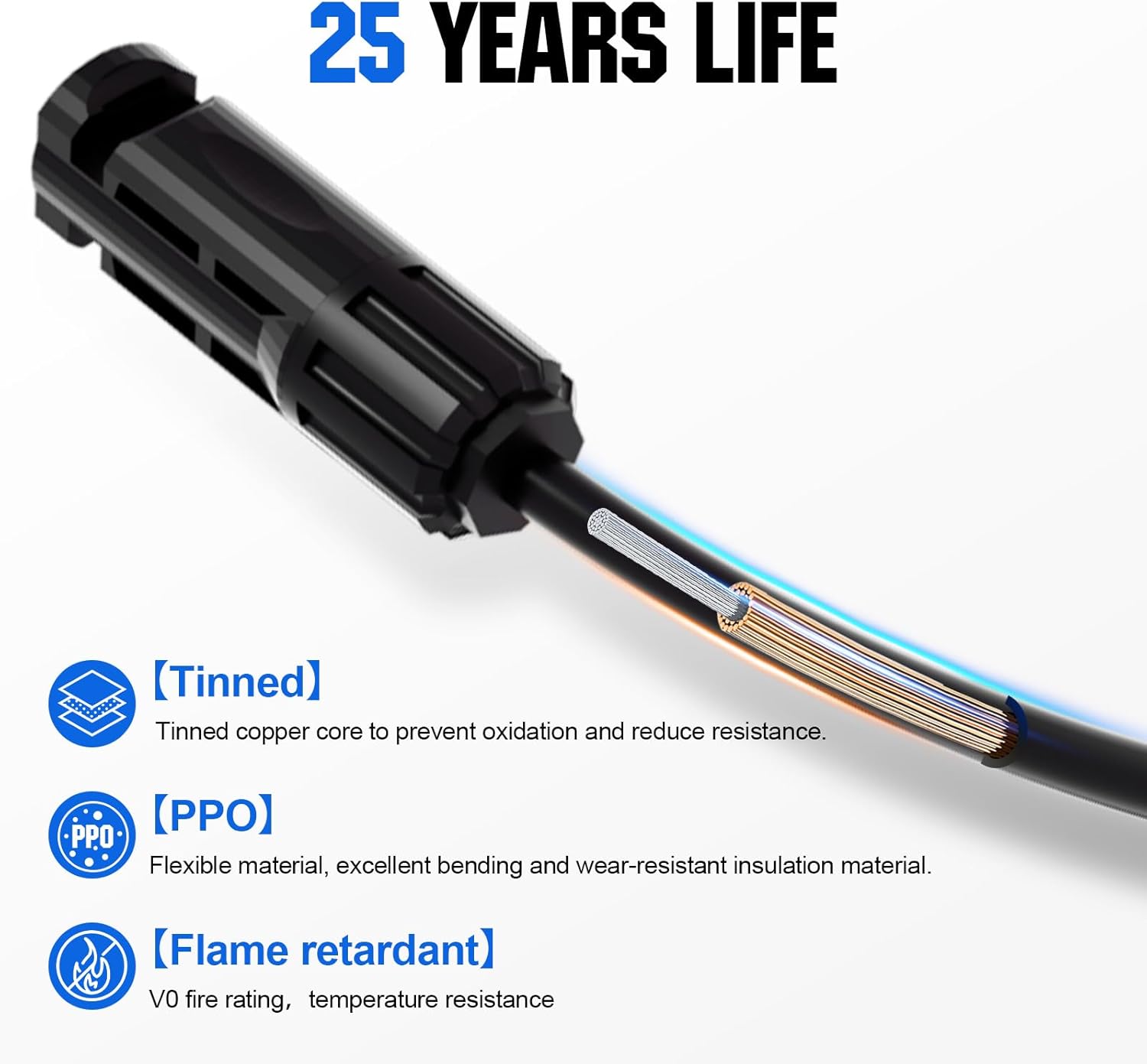

Wide Application: The solar Y connector is made of PPO and tinned copper and is compatible with various solar cables: 14-10 AWG (1.5 mm² – 6 mm²)
IP67 Waterproof: Better waterproof and dustproof performance, with the IP67 waterproof ring in the male connector.V0 flame retardant grade, working temperature -4℉-176℉, which can work normally in harsh environments
Plug and Play: The solar Y branch is connected by pressing and unlocked by pressing the buckles on both sides, and will not slip off easily
Technical Specification: Solar cable rated current: 30 A, rated voltage: DC 1000V; Suitable for most solar systems
