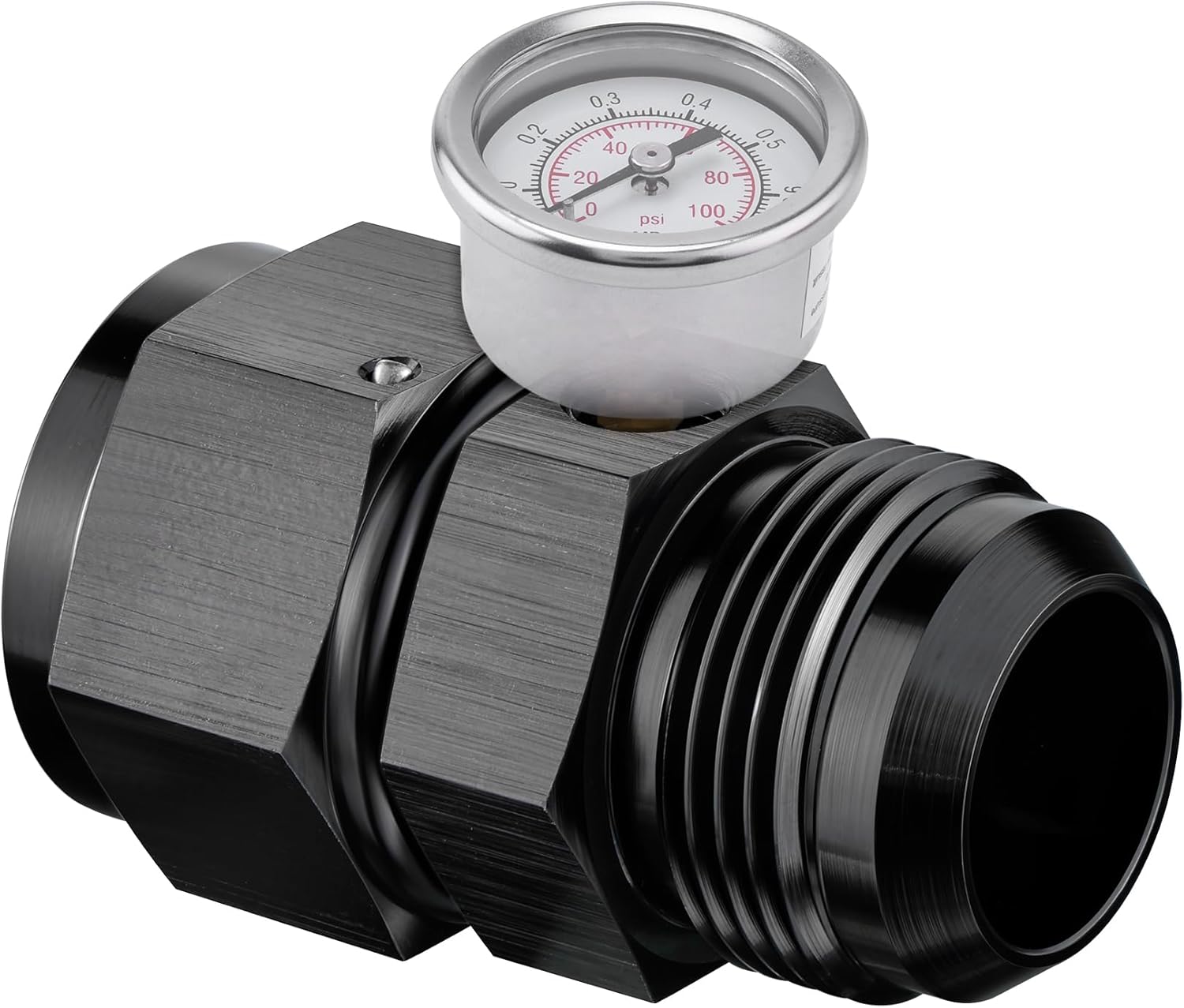

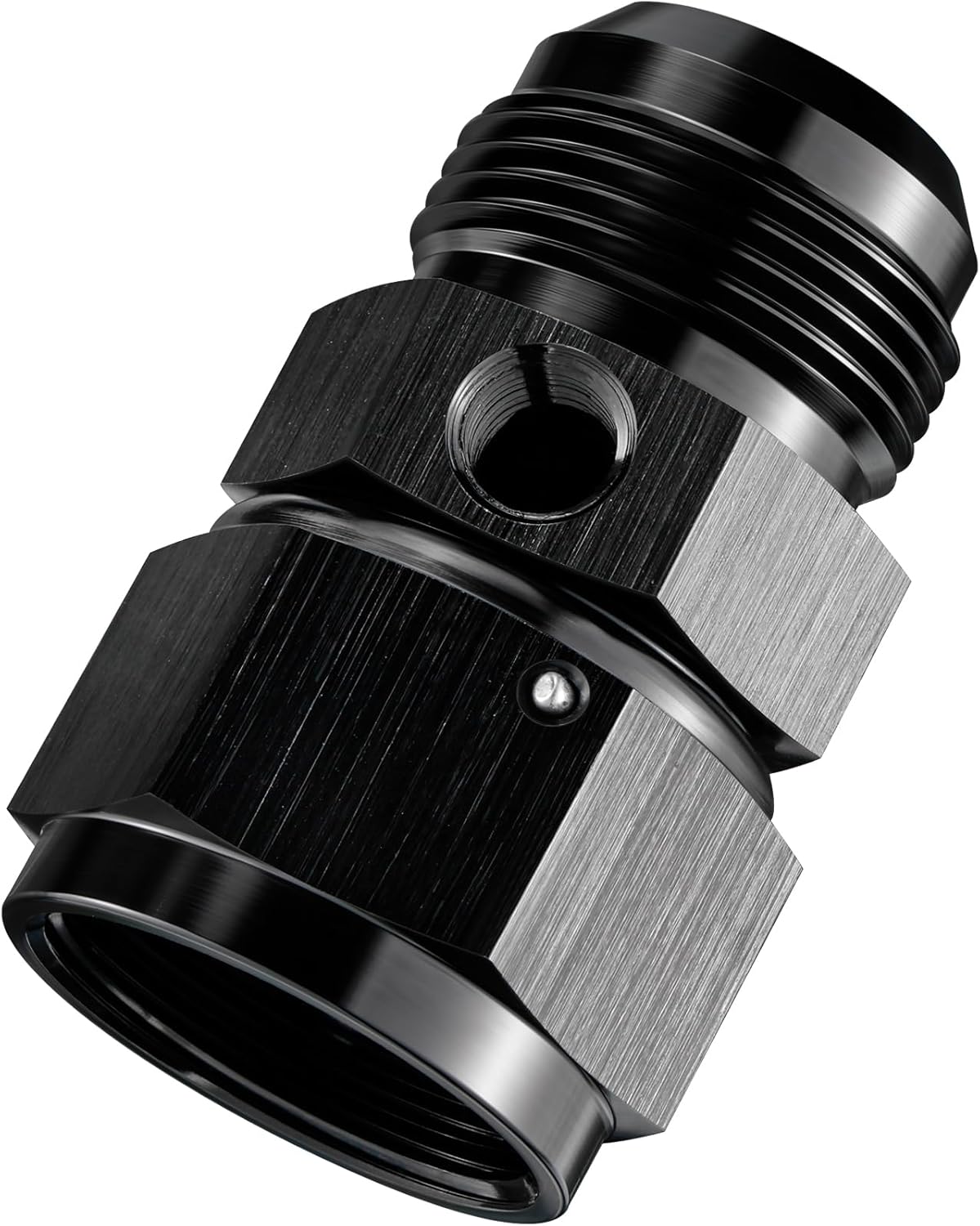

EVIL ENERGY 16AN Male Flare to -16 Female Swivel with 1/8″ NPT Gauge Port Fuel Pressure Take off Fitting Adapter Aluminum

Product description

1 Seal

2 Size

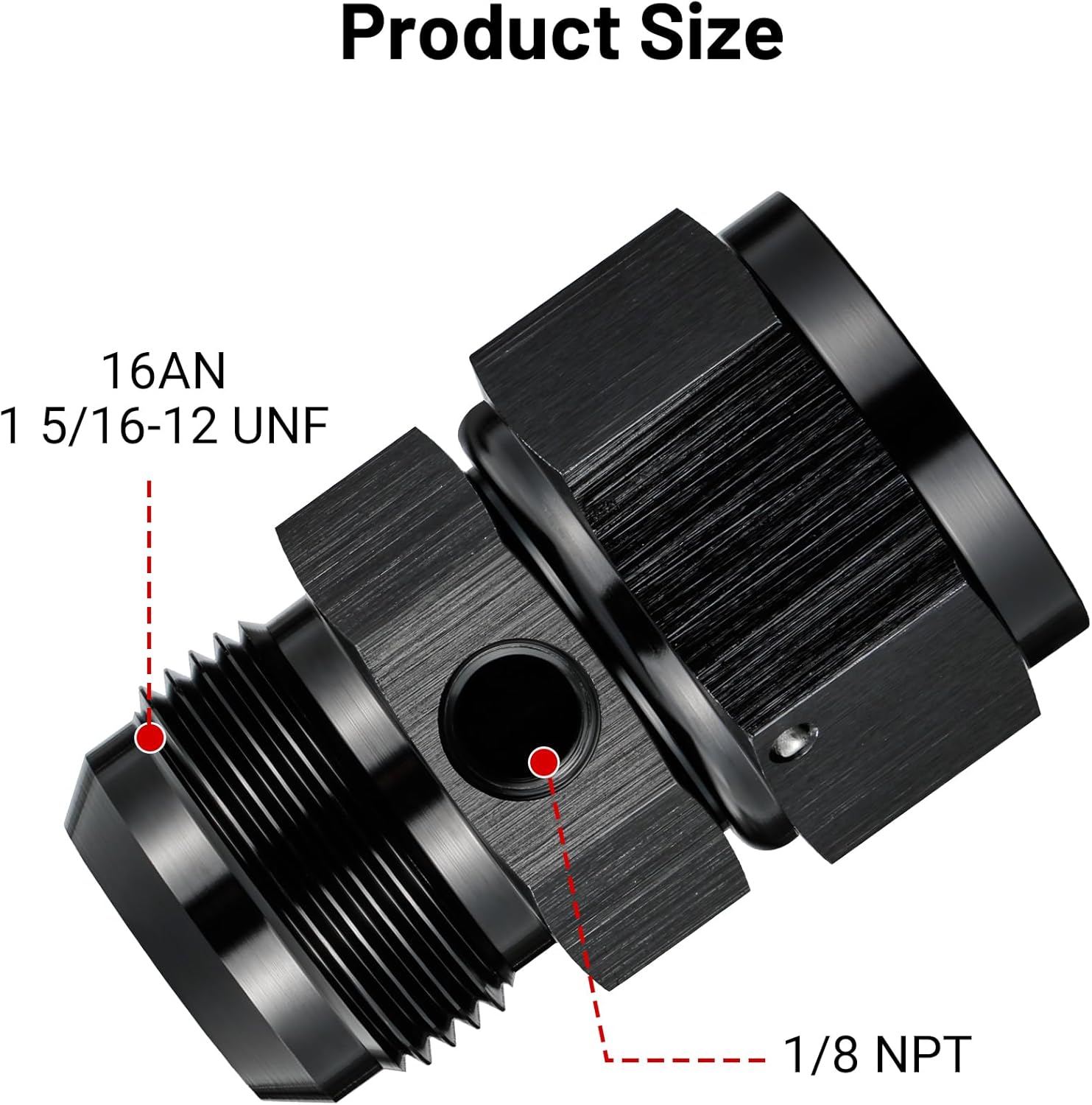

Fuel Pressure Take-off Fitting: The fuel pressure take-off fitting is an AN16 male to -16 female with a 1/8″ NPT gauge/gage port. The thread size of the 16AN is 1 5/16-12 UNF.
Sealing: The AN thread of the flare is sealed at a 37-degree angle, and the NPT thread is sealed with a 60-degree taper. It is highly recommended to use sealant or PTFE (polytetrafluoroethylene) tape on the NPT port.

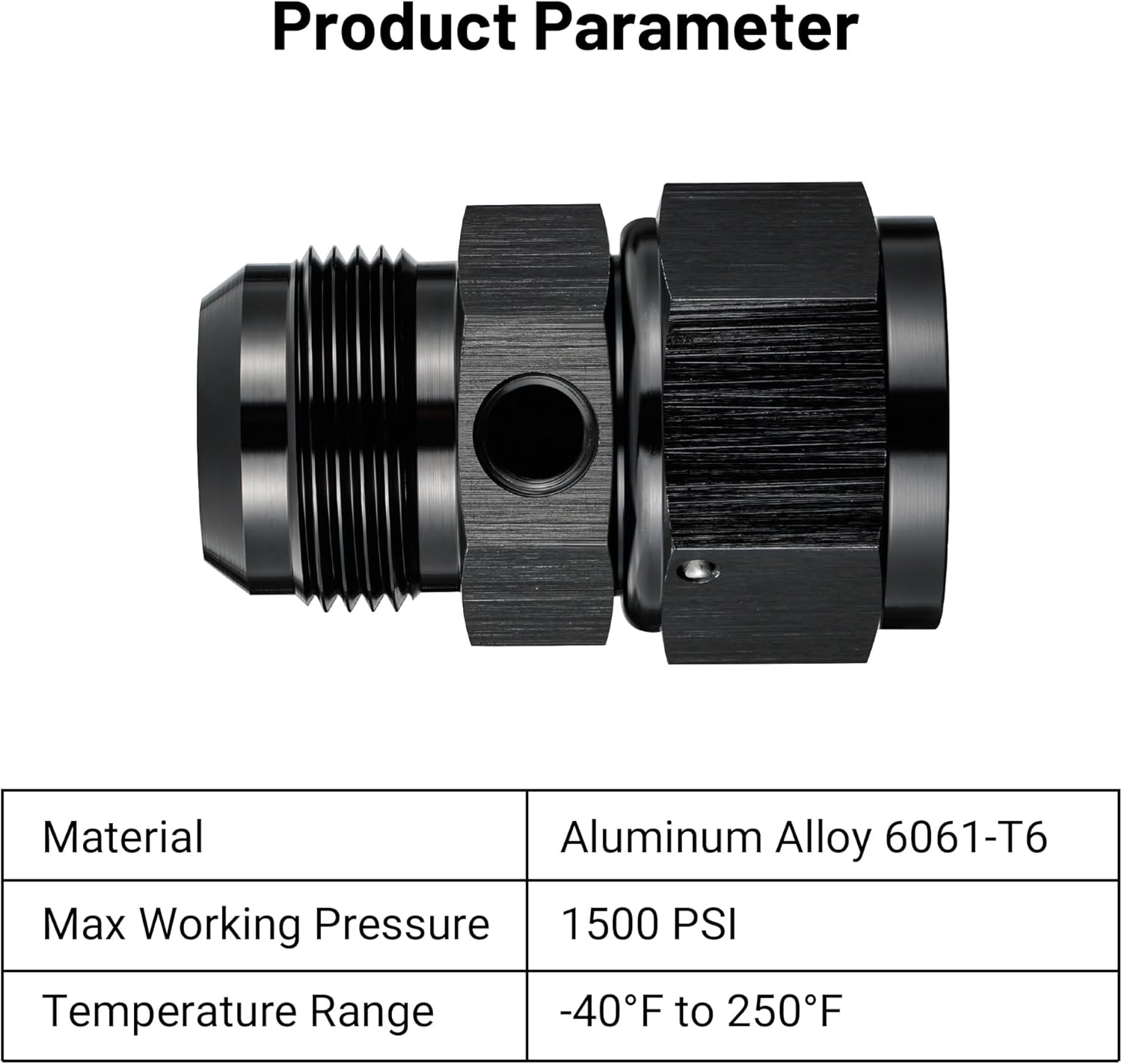

Material: The fitting is made of 6061-T6 aluminium alloy.
Parameter: The maximum working pressure is 1,500 PSI. The working temperature range is -40°F to 250°F.

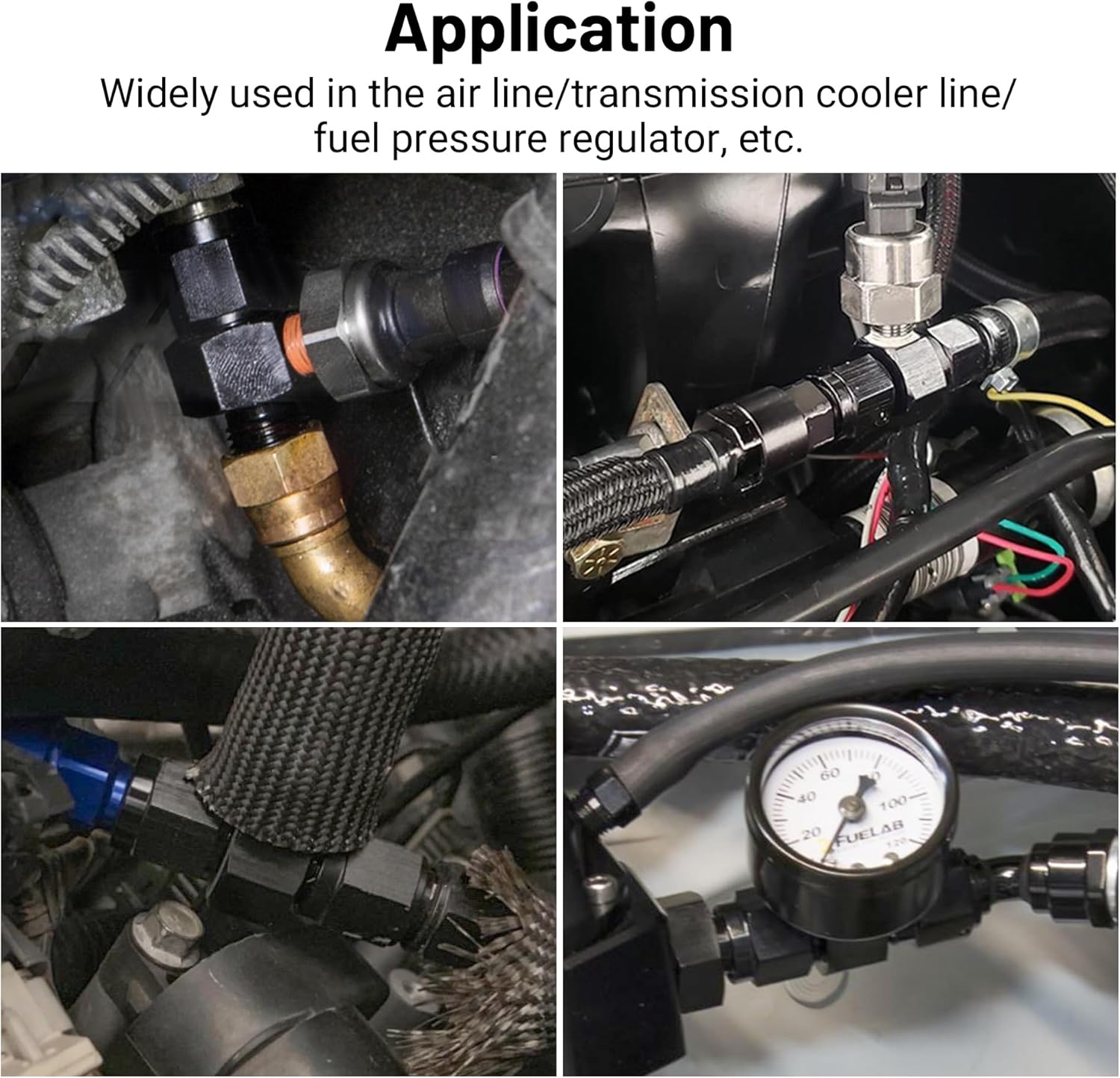

Application: The fitting is widely used in fuel systems to add a fuel pressure gauge or sensor between fuel lines.
