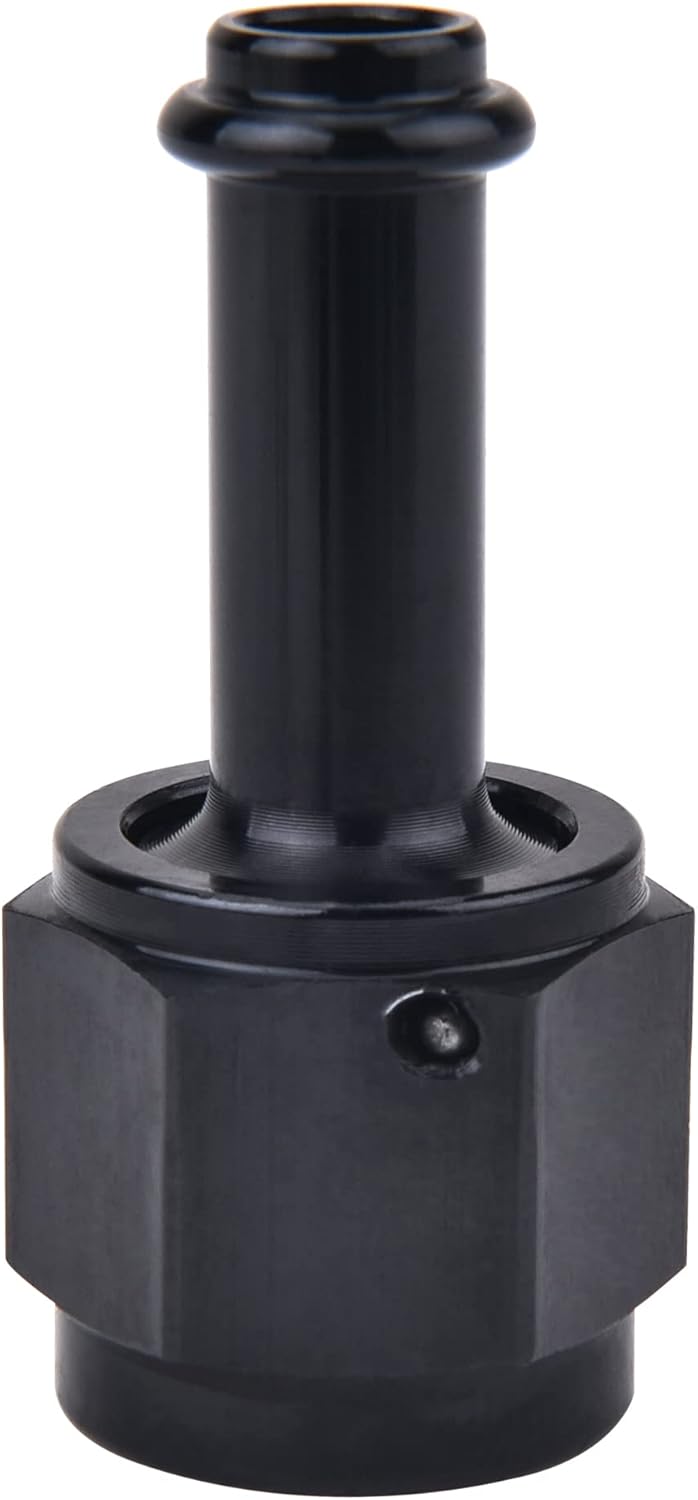

EVIL ENERGY 6AN Female to 5/16″ Barb Hose Fitting Straight Swivel

Product description

1 Seal

2 Installation

NPT Male to Barb Fitting

EVIL ENERGY provides NPT to barb fittings with striaght, 45 degree and 90 degree.The NPT side is sealed with tapered threads

Push Lock Hose Fitting

EVIL ENERGY provides push lock hose fittings with striaght, 45 degree and 90 degree. The push lock hose barb only compatible with rubber fuel line.

PTFE Hose End Fitting

EVIL ENERGY provides PTFE hose fittings with striaght, 45 degree and 90 degree. The PTFE hose end can be work with PTFE fuel line ONLY.

Swivel Fuel Hose End Fitting

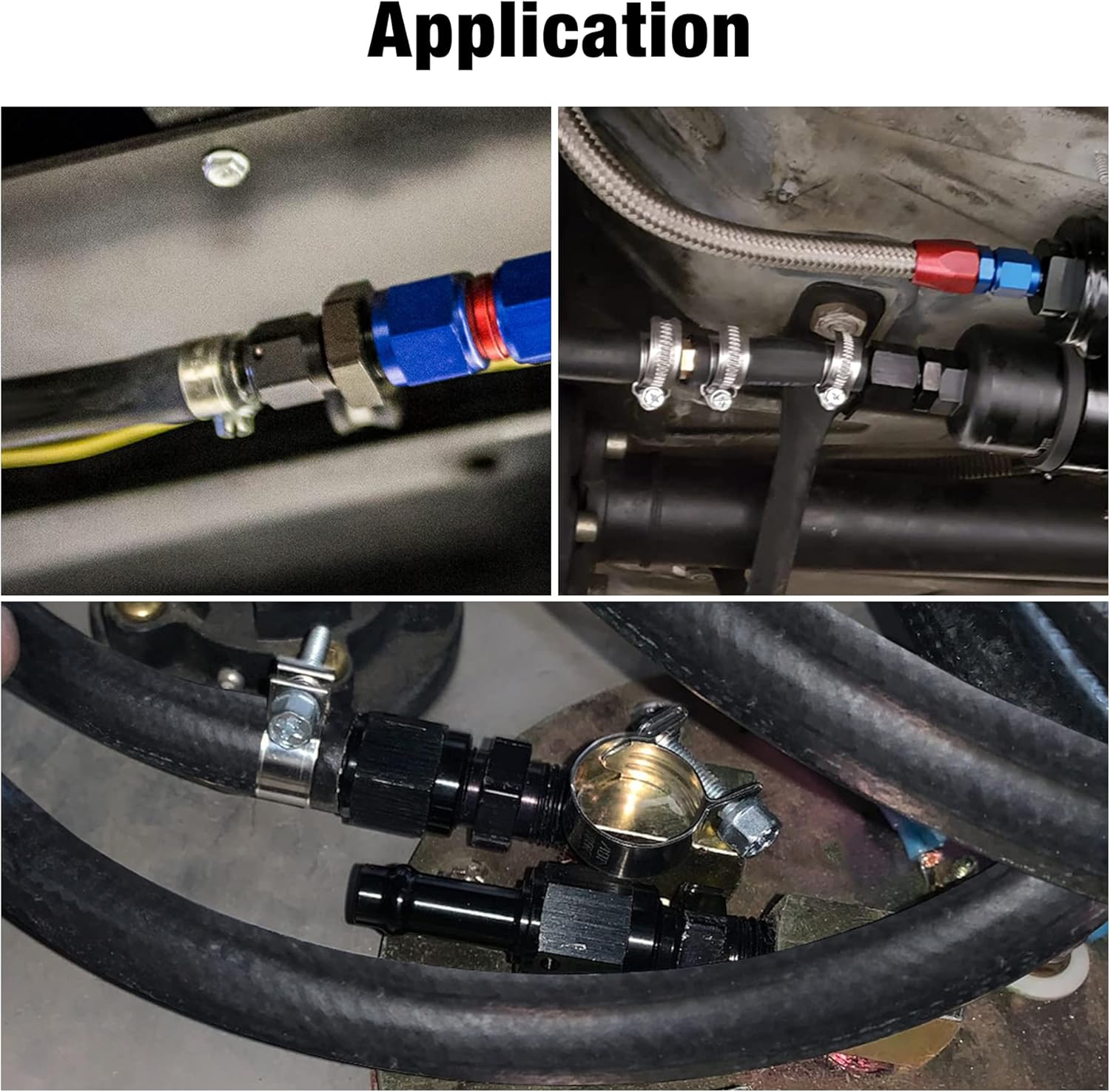

The swivel fitting is working with nylon braided and stainless steel fuel hose. Widely used in fuel systems, such as oil gas line, braided fuel line , turbo line, etc.

AN Male to Hardline Fitting

Applicable to stainless steel or aluminum hardline tubing. Widely used in brake systems, oiling systems and cooling systems.

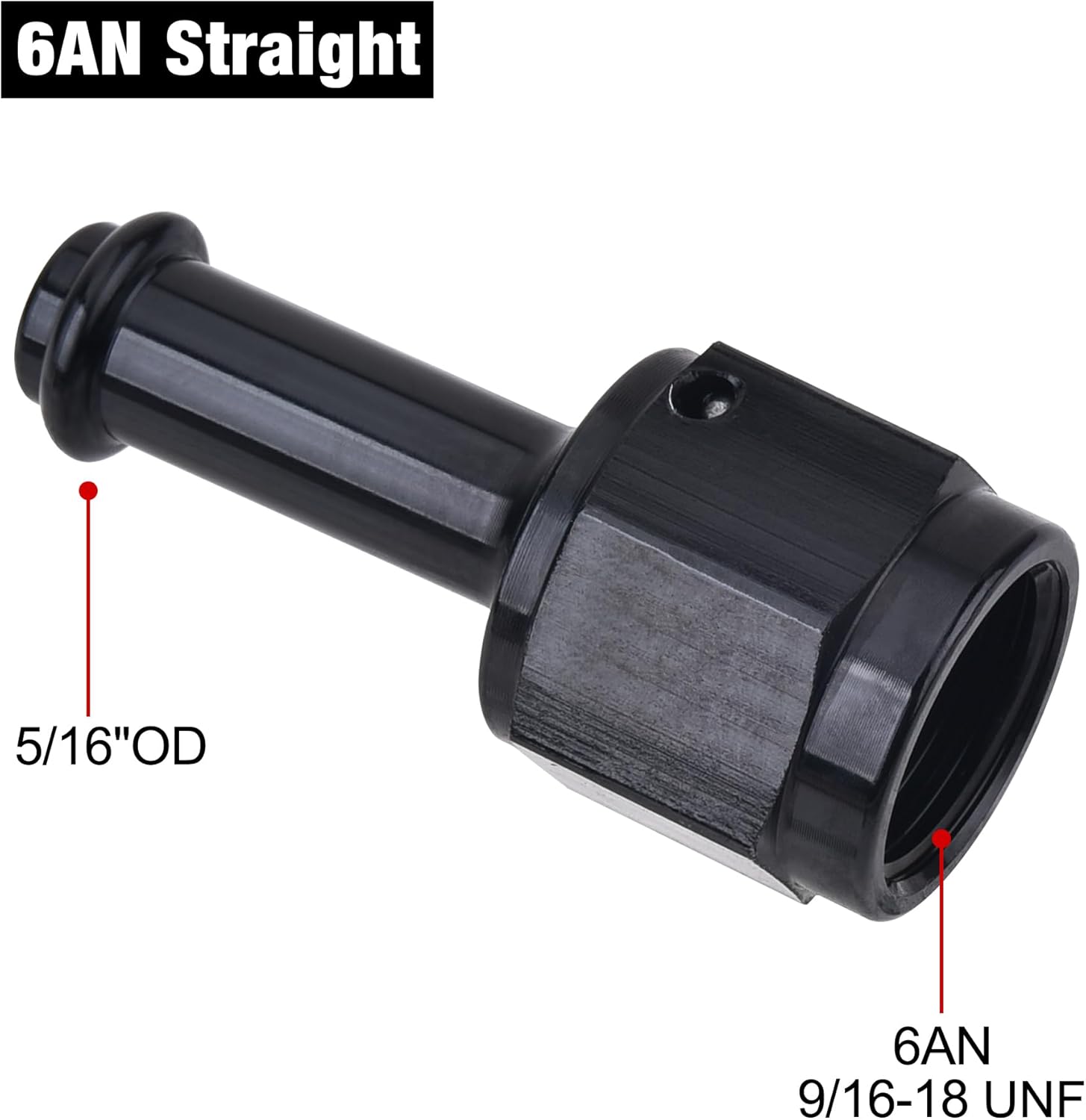

Size: The thread size of 6AN is 9/16-18UNF. OD of brab: 5/16 inch.
Material: Made of aluminum alloy 6061-T6.
Seal: The AN side of the flare is sealed by a 37 degree angle.

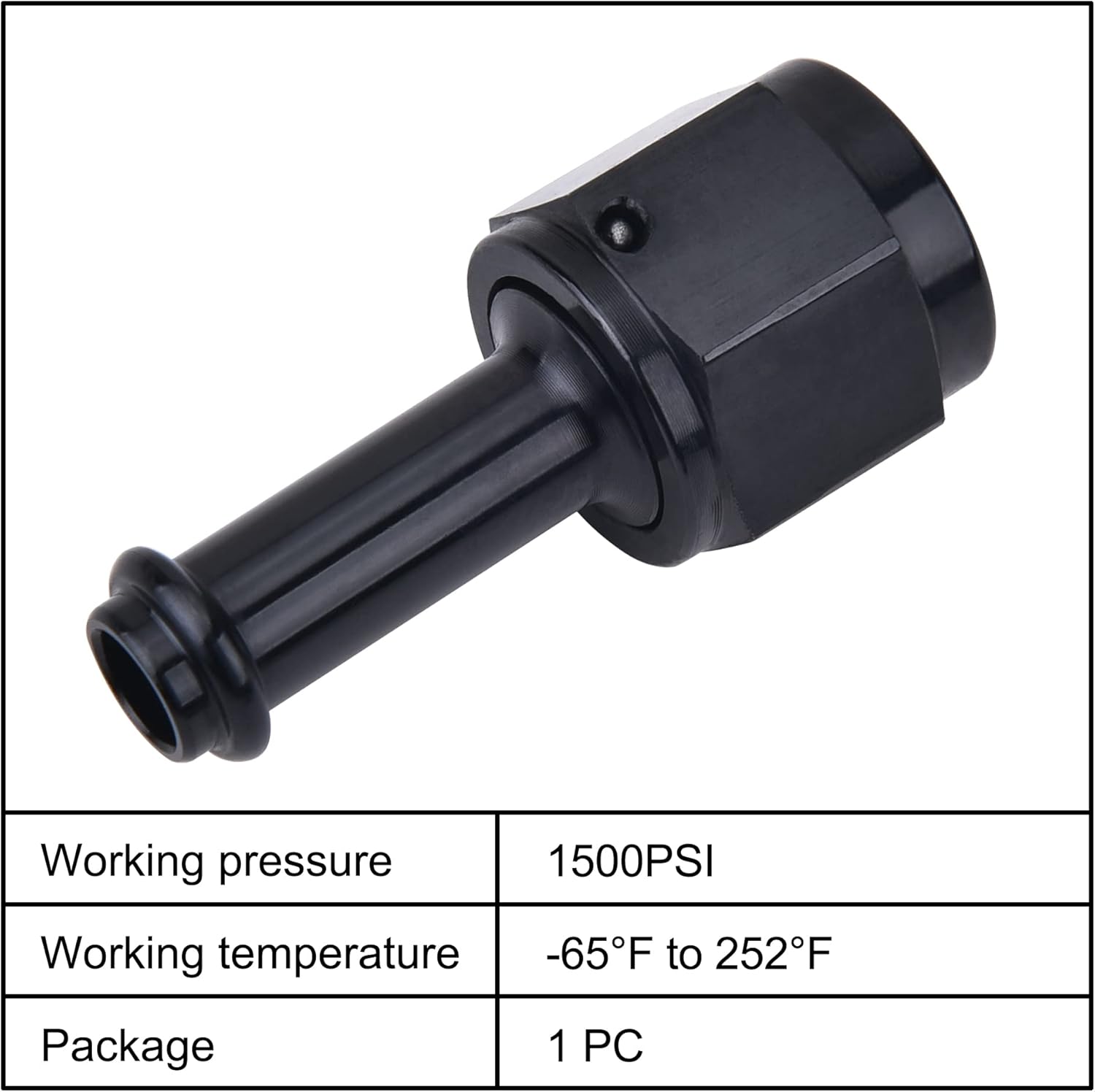

Parameter: Working pressure: 1500PSI; Working temperature: -65°F-252°F.

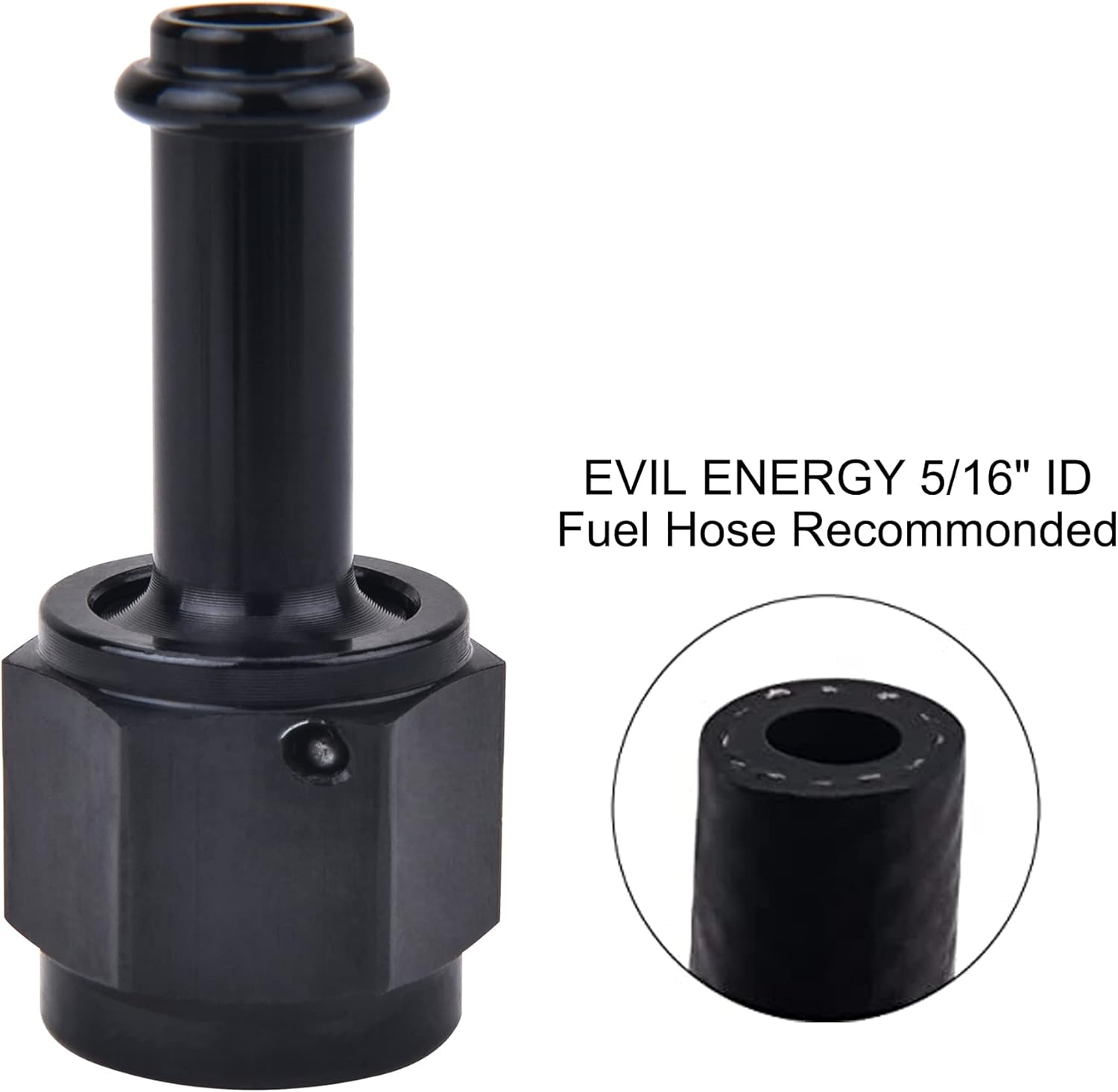

Easy installation: Just push the barb end of the fitting into the hose. It is recommended to use clamps to ensure a tight seal.
