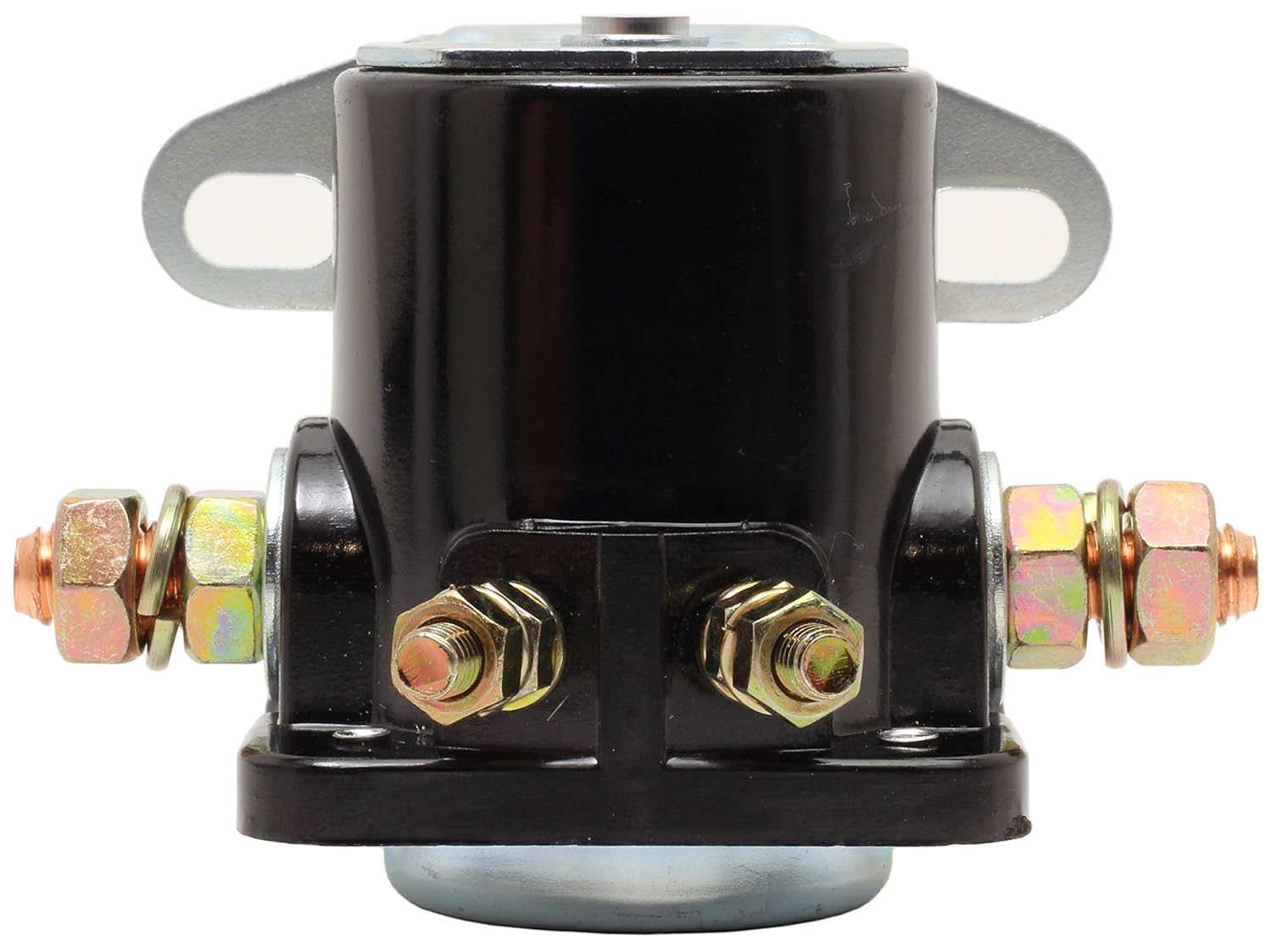

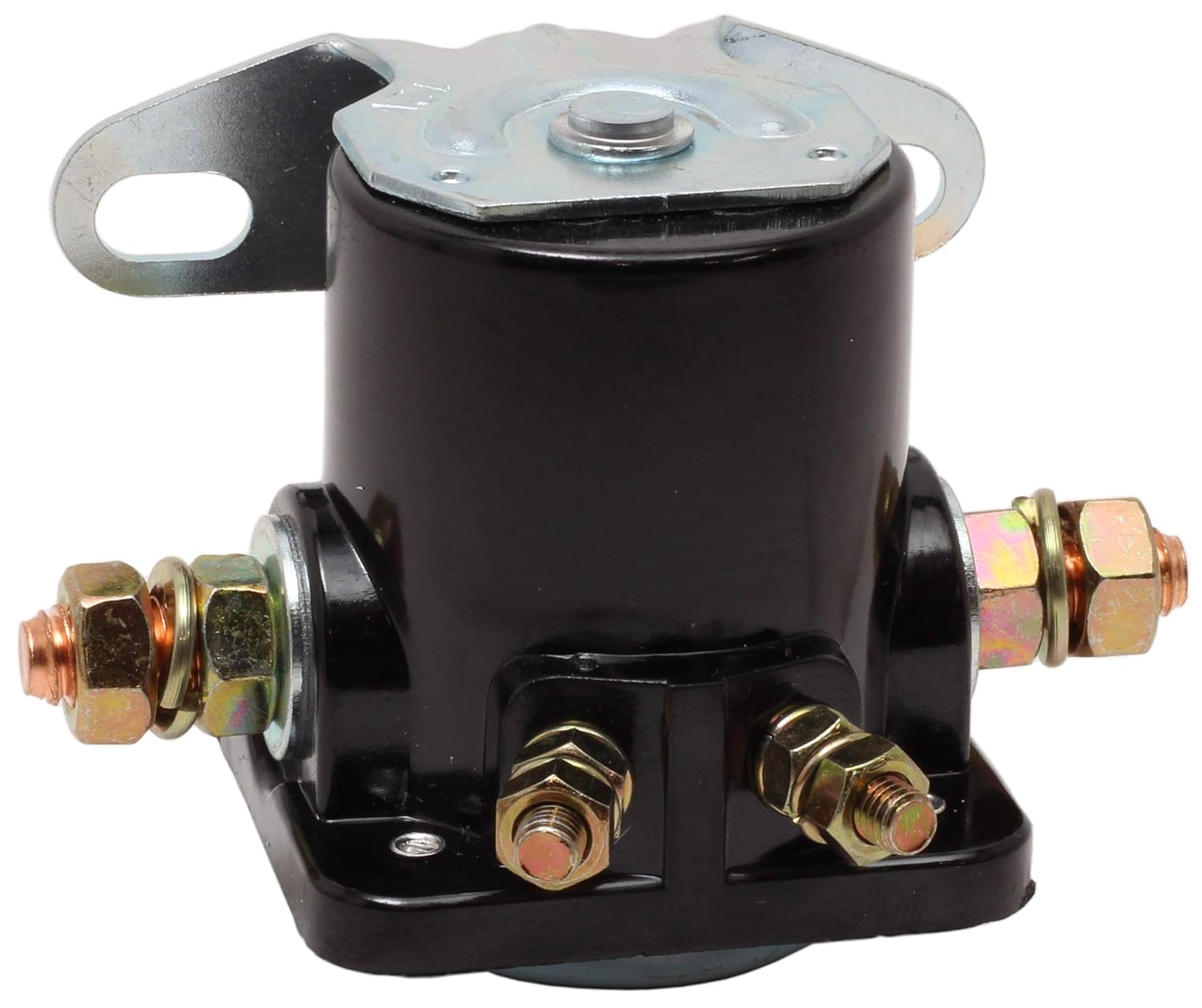

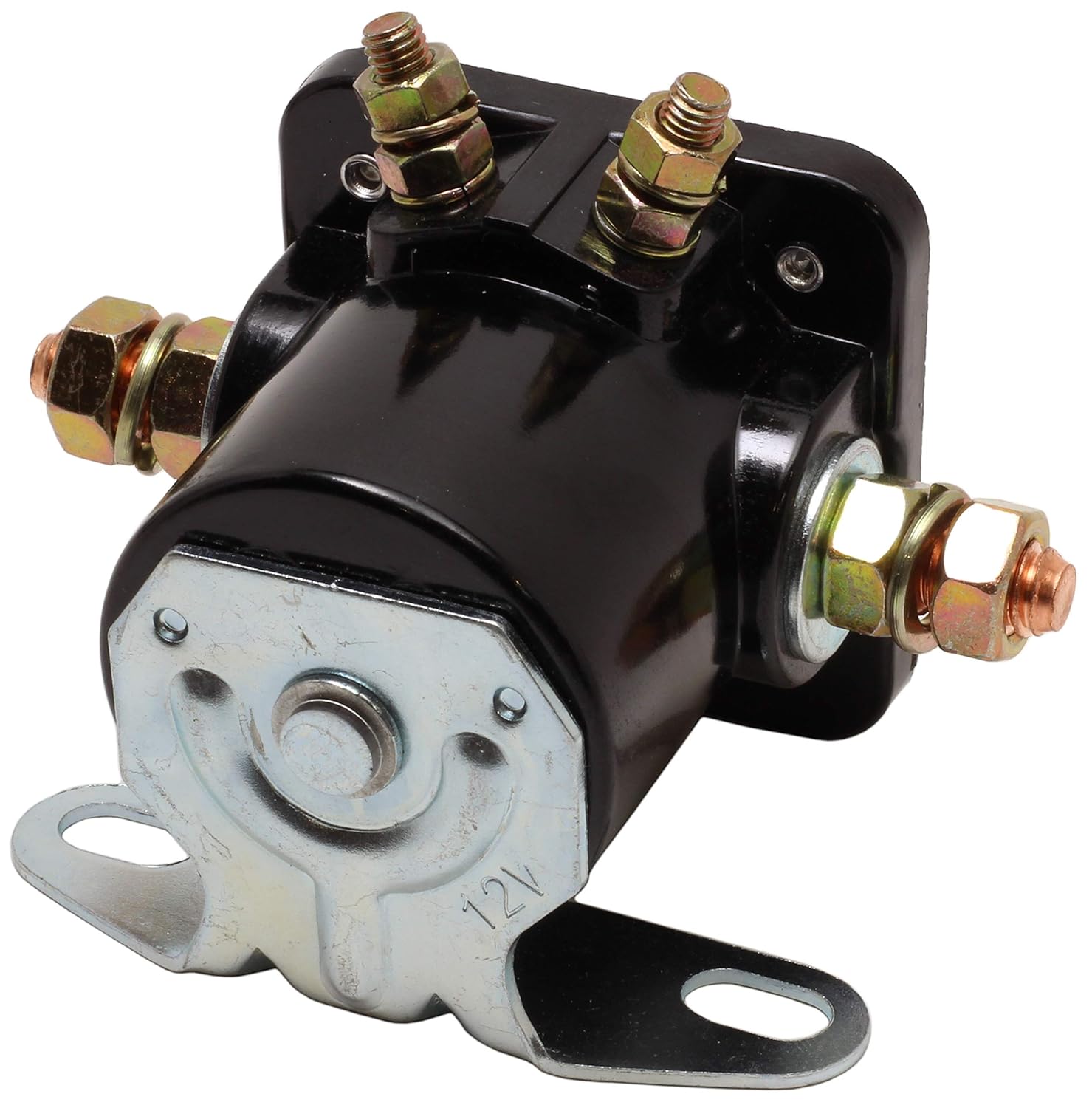

Fastronix Heavy Duty 200A Starter Solenoid

Product description

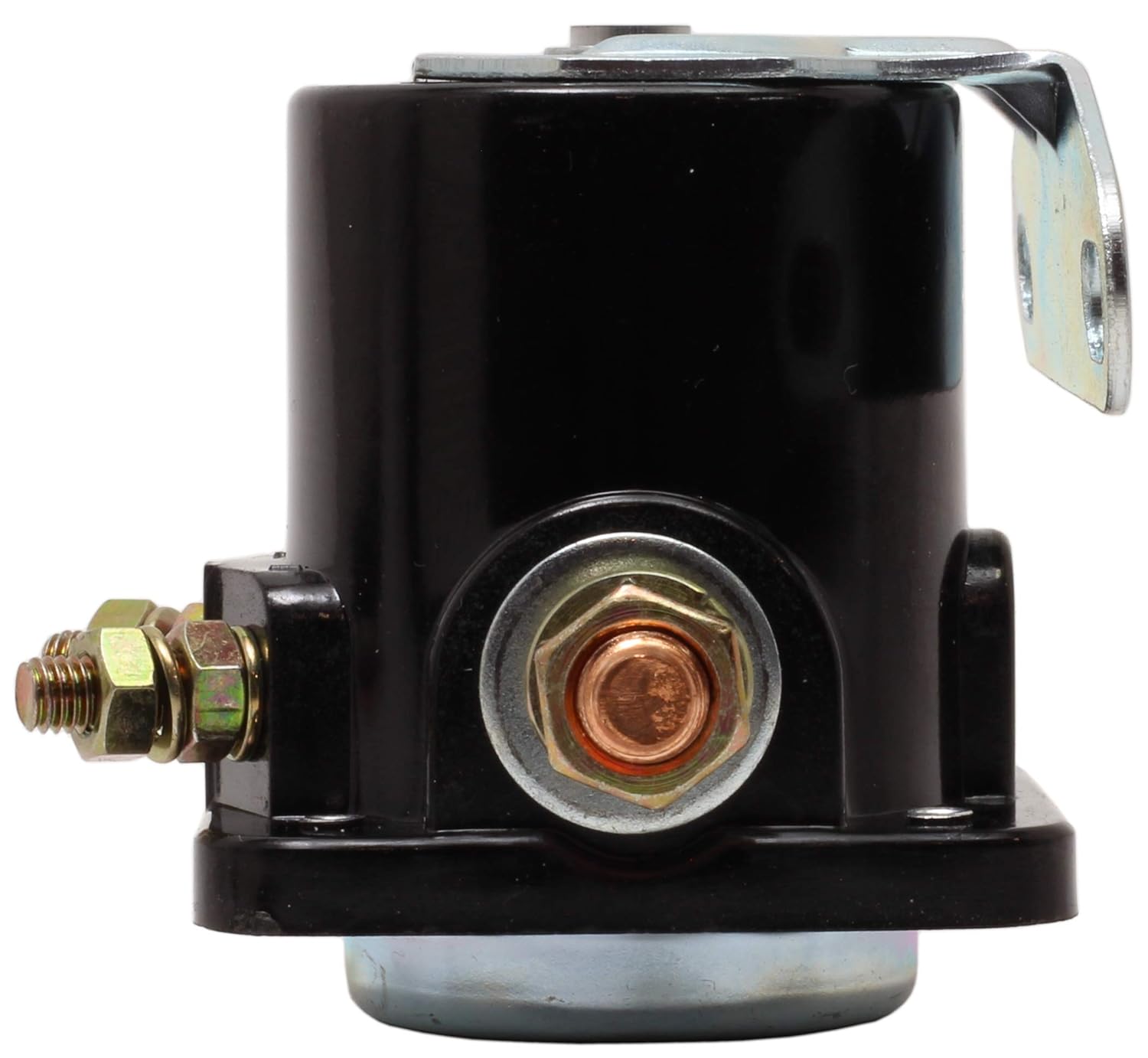

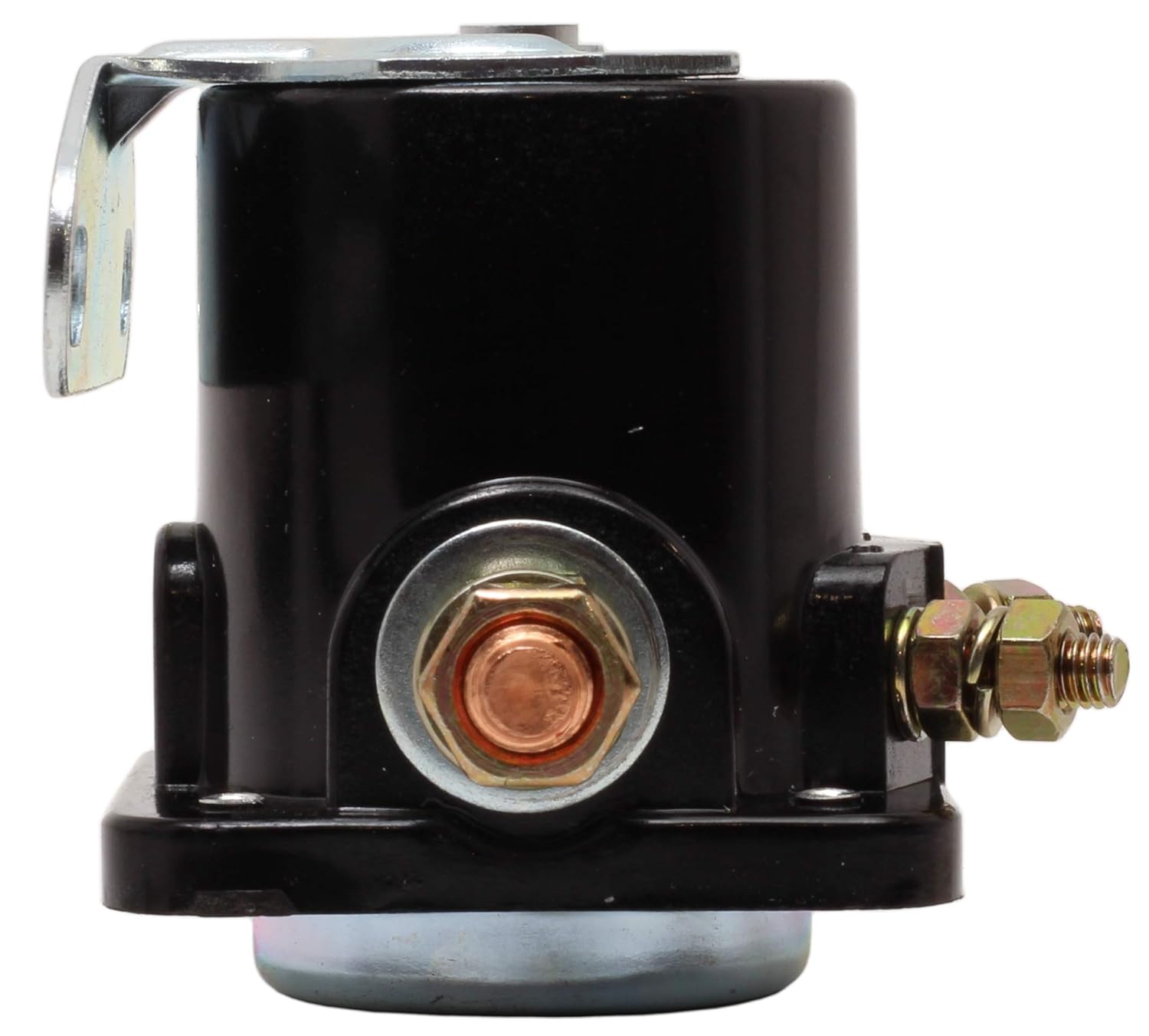

5/16″ Copper Main Power Studs

Use with terminals up to 3/16″ Thick.

Capable of handling 200A of intermittent starting power.

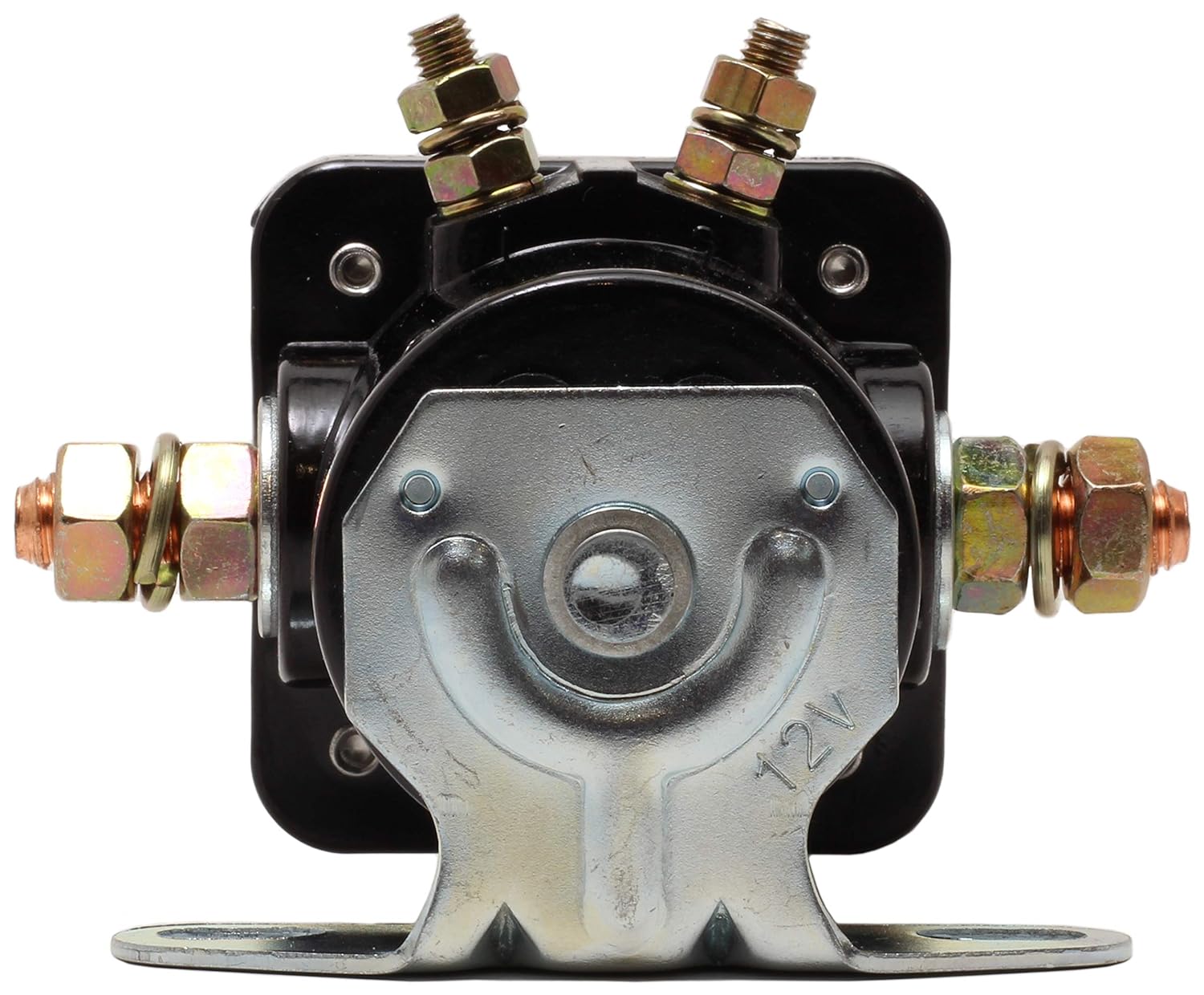

Durable Metal Case and Heavy Duty Mounting Tab

Mounts in any orientation using 1/4″ Bolts.

Must be mounted to grounded metal surface or have ground wire attached with mounting bolts.

#10-32 Actuator Studs

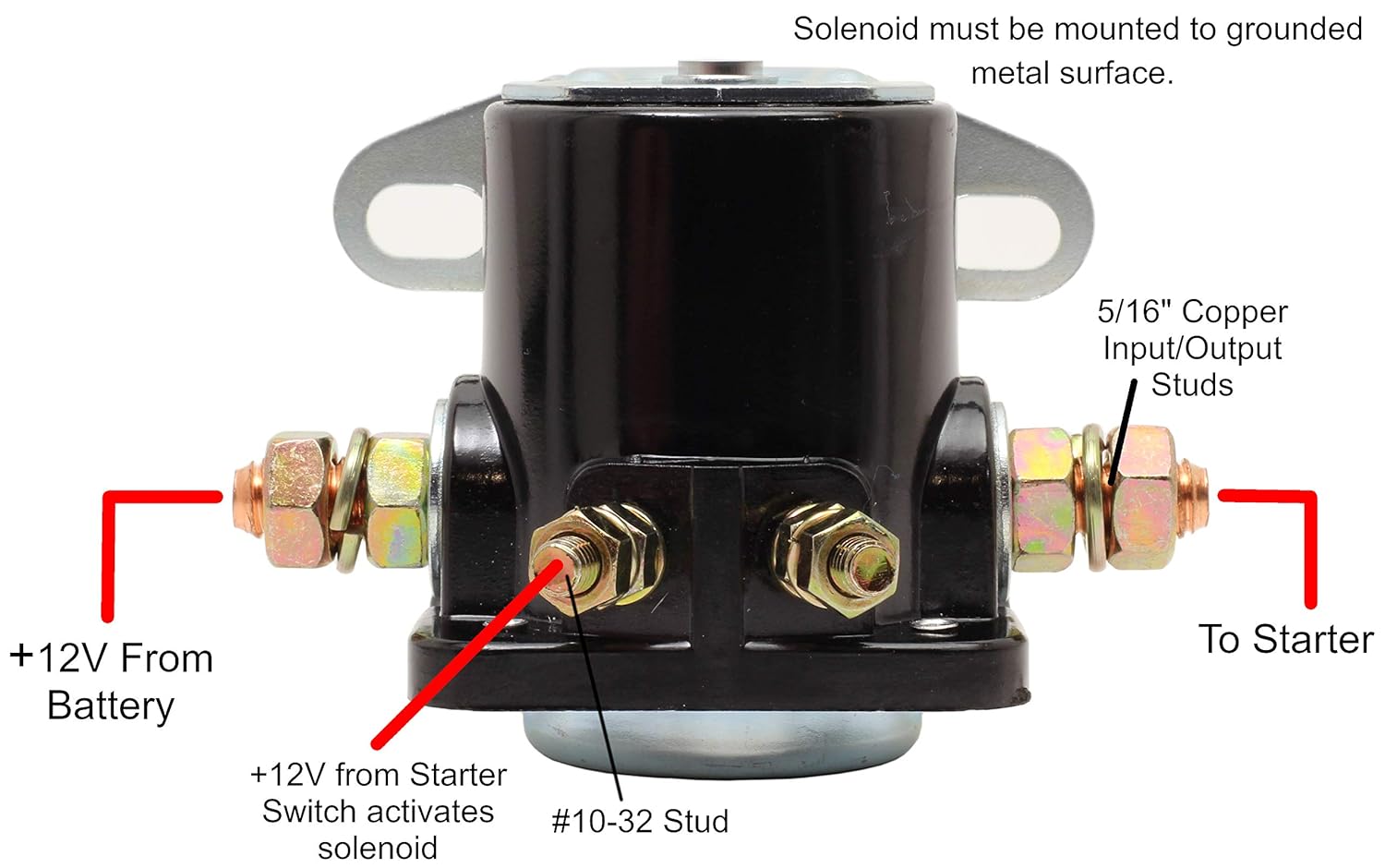

Connect the power wire from your starter switch to the actuator stud on the solenoid.

Multiple start switches can be connected to this terminal to allow starter actuation from different locations on the vehicle.

Universal Application

Can be used in a variety of starting applications on many types of vehicles.

Ford Style Solenoid Rated to 200 Amps Starting Power at 12V
5/16″ Copper Main Studs and #10-32 Trigger Stud
Can be Mounted in ANY Orientation with 1/4″ Bolts
Instructions/Wiring Diagram Included
Use with Fastronix 404-112 Terminal Covers and 405-012 Copper Lugs
