MokerLink 8 Port 2.5 Gigabit PoE Switch with 10G SFP, 8 x 2.5G Ethernet Ports, 8 Port PoE IEEE802.3af/at, 120W, Compatible with 10/100/1000Mbps, Unmanaged Fanless Wall Mountable Network Switch

Product description

POE-2G08110GS is an unmanaged 2.5G PoE switch, It has 8* 2.5G PoE ports and 1* 10G SFP+ port, providing seamless connection to 10/100/1000M/2.5G ethernet for easy management and maintenance. The 1-8 PoE ports support IEEE802.3af/at PoE standard and PoE QoS Priority.

8x 2.5G Connection

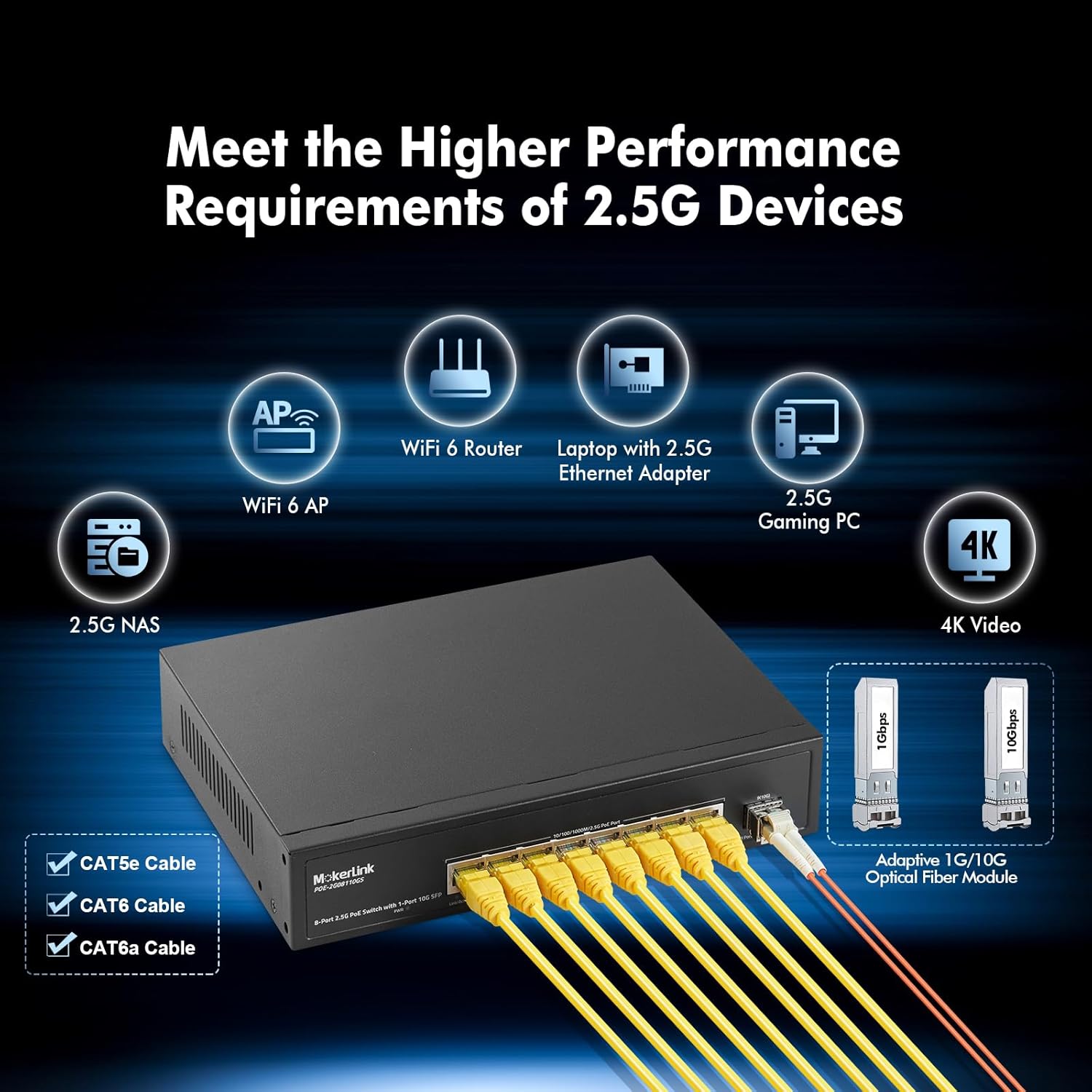

Offers high-bandwidth connectivity with 8× 2.5Gbps RJ45 ports and unlock the full potential of NAS and WiFi6 APs.

10G SFP+ Uplink

The switch features with 1× 10Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.

Smart PoE+(IEEE802.3af/at)

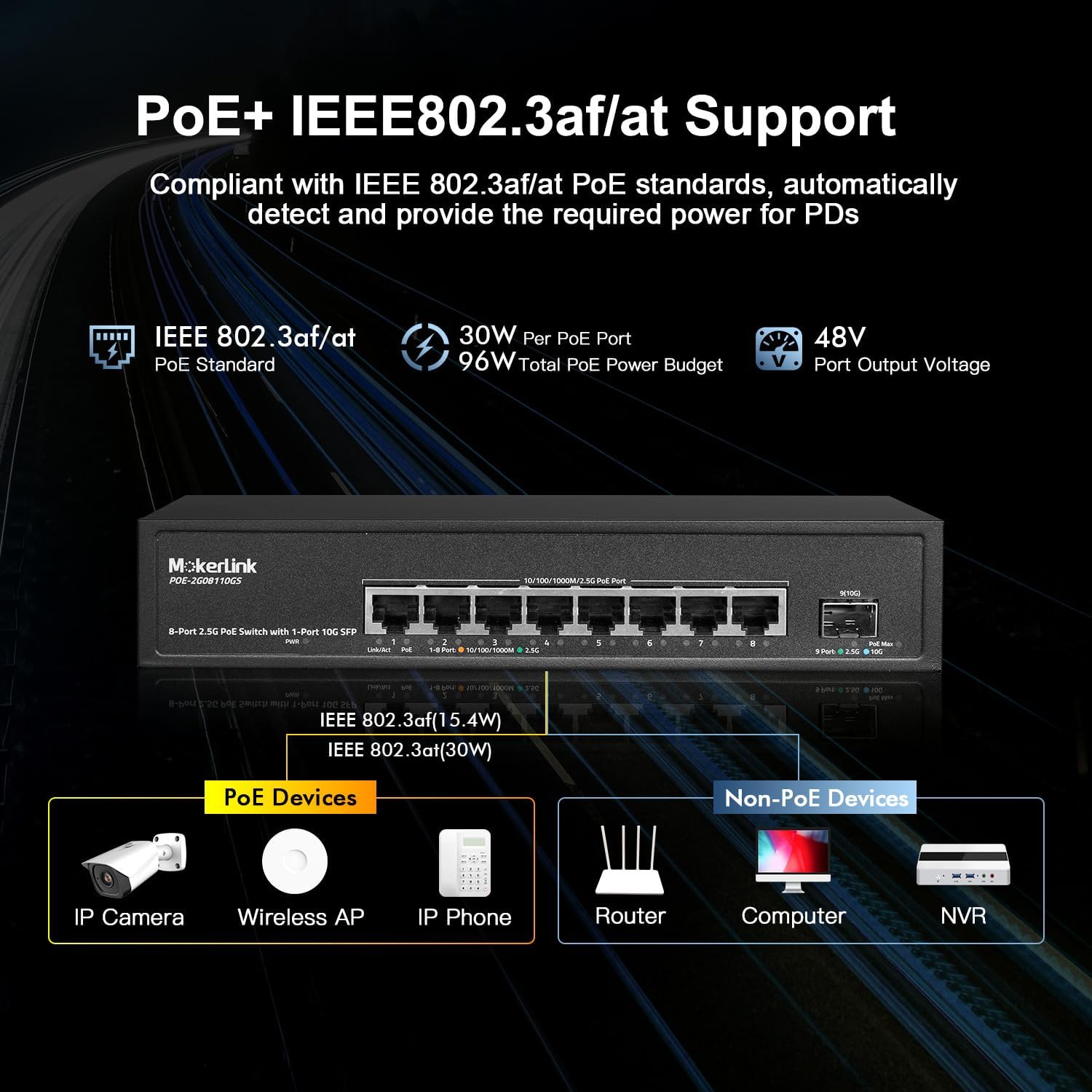

Port 1-8 compatible with IEEE802.3af/at standard, PoE switch determines and delivers the exact power supply to PoE devices. Support PoE QoS priority.

Hassle-Free Cabling

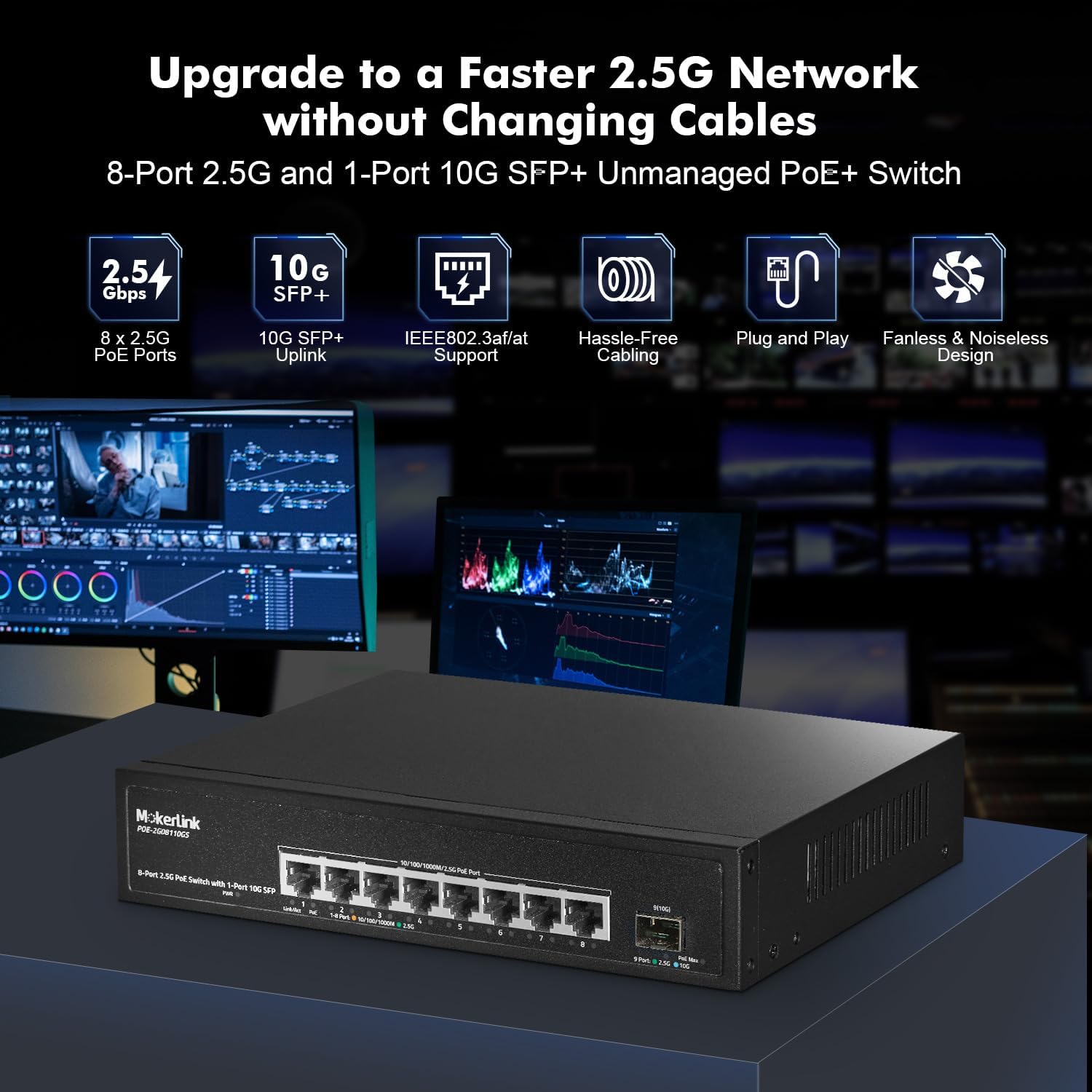

Upgrade to 2.5 Gbps speed without changing cabling, you can use Cat 5e and above cables.

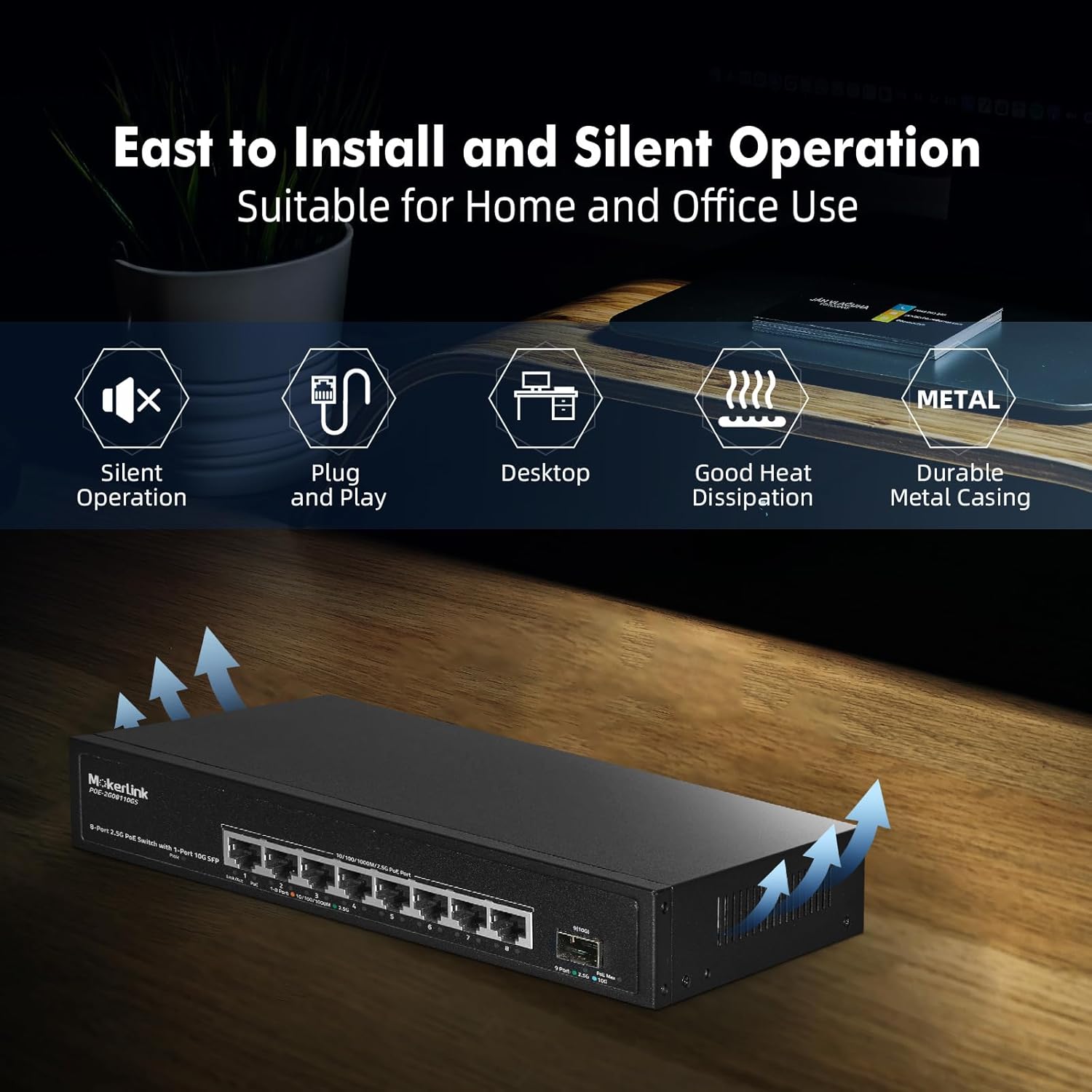

Fanless & Silent Operation

The 2.5G switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.

Plug and Play

plug and play, No configuring is required. Auto MDI/MDI-X crossover on PoE ports eliminate the need for crossover cables.

Lighting Protection

The switch has built-in mine-proof circuits, effectively reducing the impact of thunderstorms on network systems.

Wall Mountable

You can mount the switch on the wall or desktop, perfect solution for a variety of environments.

Product Specifications

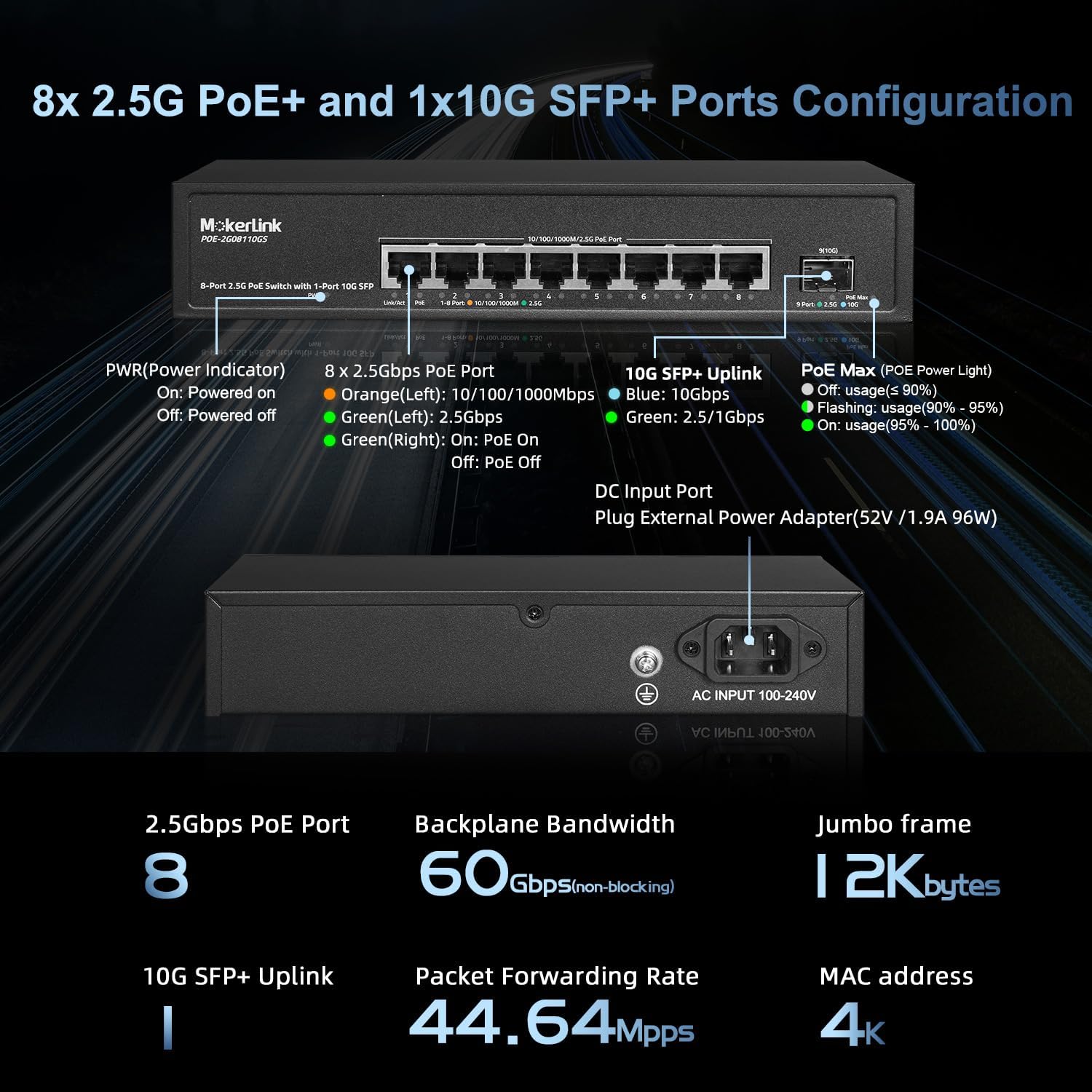

Model POE-2G08110GS Ethernet 8*2.5G PoE ports + 1*10G SFP+ ports Bandwidth 60Gbps Pack forward rate 44.64Mpps Forwarding mode Store forward MAC address 4K PoE protocol IEEE802.3af (15.4W) IEEE802.3at (30W) POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6- Network Protocol IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) Network Medium 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m), 100Base-TX: Cat5 or higher UTP/STP(≤100m), 1000Base-TX: Cat5 or higher UTP/STP(≤100 M) Optical fiber medium Multimode optical fiber: 50/125, 62.5/125, 100/140um, Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um Working environment Operating temperature: -10~50°C, Storage temperature: -40~70°C, Operating humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation LED Indicator PWR(Power) On: Powered on, Off: Powered off; 1-8 Port Green Light On: 2.5G Link normal, Off: Link blocked, Flashing: Data transmitting; 1-8 Port Yellow Light On: 10/100/1000M Link normal, Off: Link blocked, Flashing: Data transmitting; 9 Port Green Light Blue Light Blue on: 10G link, Green on：1000/2500M link Off: Link blocked, Flashing: Data transmitting; 1-8 PoE Light On：PoE power supply Off：PoE not powered; POE Max Power light Off: ≤ 90%, Flashing: 90% – 95%, On: 95% – 100% Structure Size Product Dimensions: 220*161*44mm Package Dimensions: 315*215*85mm Product N.W: 0.91KG Product G.W: 1.23KG Power Voltage Input voltage : AC 100-240 V 50/60HZ Supply power: DC 52V/ 1.92A, Product power: maximum 10W POE power: maximum 90W Packing List Switch 1pc, Specification 1pc, Power adapter 1pc

Compare 2.5G Switches

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 289

4.3 out of 5 stars 325

4.0 out of 5 stars 83

4.2 out of 5 stars 80

4.4 out of 5 stars 289

3.8 out of 5 stars 46

4.3 out of 5 stars 325

Price

$79.99$79.99

$54.99$54.99

—

—

$59.99$59.99

—

$258.99$258.99

Ethernet

8×2.5G PoE + 1x10G SFP+

8×2.5G RJ45 + 1x10G SFP+

8×2.5G RJ45 + 1x10G SFP+

5×2.5G RJ45 + 1x10G SFP+

5×2.5G PoE + 1x10G SFP+

5×2.5G RJ45 + 1x10G SFP+

24×2.5G RJ45 + 2x10G SFP+

Managed Support

✘

✘

✔

✘

✘

✔

✘

PoE Support

✔

✘

✘

✘

✔

✘

✘

PoE Protocol

IEEE802.3af/at (Max 30W)

–

–

–

IEEE802.3af/at (Max 30W)

–

–

Total Power Budget

DC 52V/1.25A(65W)

DC 12V/2A(24W)

DC 12V/2A(24W)

DC 12V/1A(12W)

DC 52V/1.25A(65W)

DC 12V/1A(12W)

AC 12V/4A(48W)

Backplane bandwidth

60Gbps

60Gbps

60Gbps

48Gbps

48Gbps

48Gbps

160Gbps

Packet forwarding rate

44.64Mpps

44.64Mpps

44.64Mpps

33.48Mpps

33.48Mpps

33.48Mpps

119.04Mpps

Structural dimension

220*161*44mm / 0.88kg

190*100*28mm / 0.49KG

190*100*28mm / 0.49KG

140*93*28mm / 0.33kg

200*118*44mm / 0.63kg

140*93*28mm / 0.33kg

—

Managed Function

–

–

L2 Function(VLAN, QoS, etc)

–

–

L2 Function(VLAN, QoS, etc)

–

Mount Way

Desktop / Wall Mount

Desktop / Wall Mount

Desktop / Wall Mount

Desktop / Wall Mount

Desktop / Wall Mount

Desktop / Wall Mount

Desktop / Rack Mount

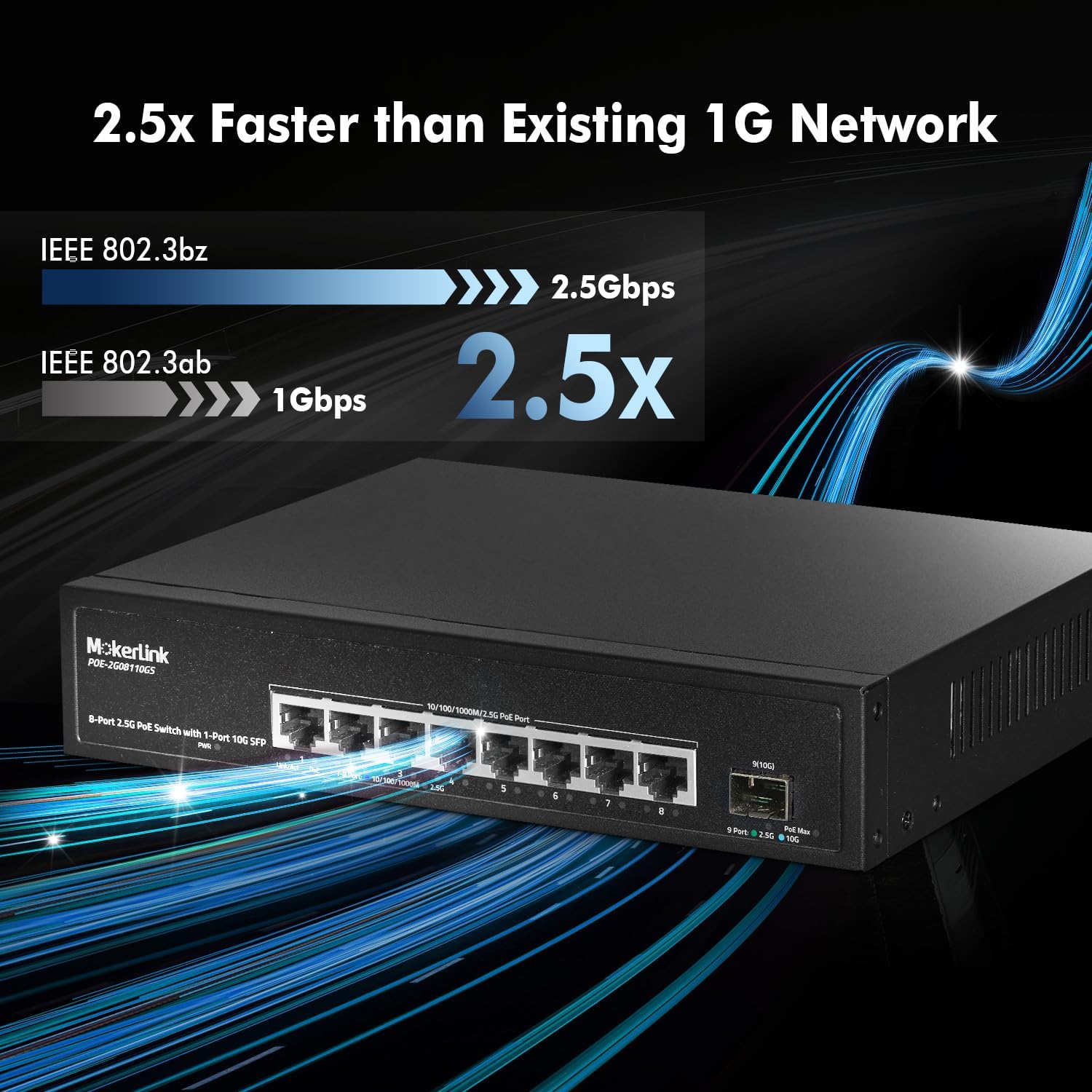

2.5G Ports: The network switch has 8 x 2.5Gigabit Ethernet Ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 1 x 10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 60Gbps backplane bandwidth, excellent data forwarding performance
Support POE Ports: Maximum support 120W high output power, built-in power supply makes installation easier. Support IEEE 802.3af/at PoE, each port max power supply reached 30W. *Please note: not support passive 24V PoE.*
Easy to Use: Unmanaged Plug and Play, just plug in the power cord, connect the ethernet cable directly to the device, auto MDI/MDIX, auto-negotiation rate, without any configuration. With durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation
Easy to Maintain: Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple
Widely Used: desktop/wall-mounting design, well-suited for various environments, such as home entrainment and office, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.
