Pair of 24Volt RS775 Fast Motor Gearbox for Power Wheels Motor Upgrade,2PCS 12V-24V High Torque 775 DC Motors for Kids Ride on Toy Cars Replacement Parts Gear Upgrade

Product description

RS775 Tachometer performance at different voltages

Motor Speed

Voltage is 12V, the motor speed 13500RPM

Motor Speed

Voltage is 18V, the motor speed 20250RPM

Motor Speed

Voltage is 24V, the motor speed 27000RPM

Gearbox output

180RPM

Gearbox output

270RPM

Gearbox output

360RPM

Please pay attention to the comparison size before buying…

Steel Gear+Bearing Gear+High-Power Motor

Universal voltage across the entire range & Performance under different voltages

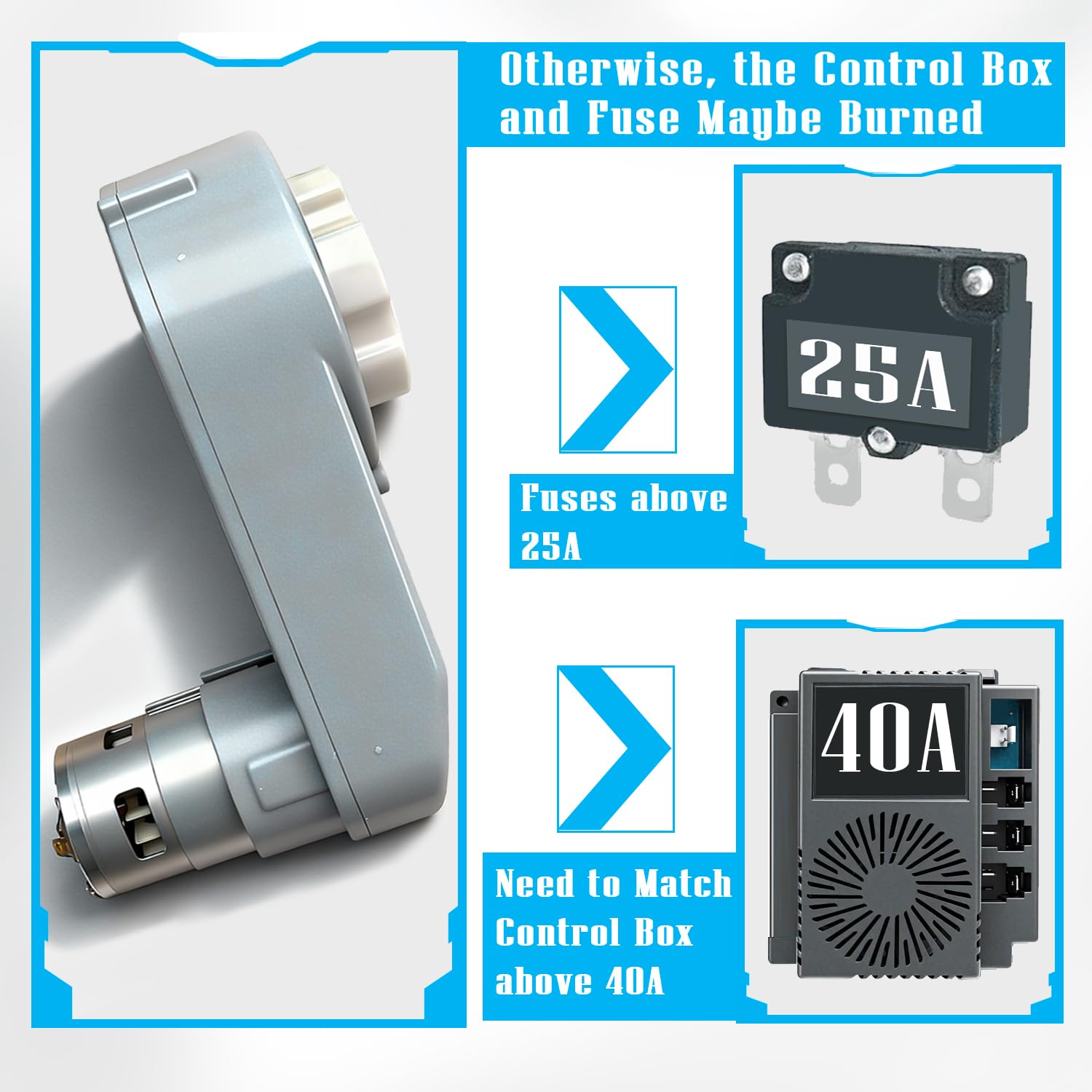

Suggest using it in conjunction with a 40A high-power controller and a 25A fuse

What is the voltage range of the motor?

The voltage range of the motor is 12V-24V. Do not use a power supply exceeding 24V. When you use a 12V power supply, the speed will slow down. When you use a 24V power supply, the speed will reach its optimal state.

Which vehicles does it match with？

This motor is not completely universal, it is suitable for DIY modification or prototype replacement. When upgrading this motor, you need to carefully measure the data.

Do you need professional installation?

No professional installation is required, you can assemble it yourself, but be sure to carefully measure the motor size and compare it with the size of the model!

Do you have installation instructions

Requires matching with a controller of 40A or above and a fuse of 25A or above. The motor itself does not need to distinguish between the left and right sides, and if there is a steering error, only the motor cable sequence needs to be changed.

Can it be used outdoors?

This is a power wheel upgrade motor, which can also be used for some DIY electrical projects, and of course, it can be used outdoors. You can gallop in any environment!

What do customers usually say?

Other customers are also reminded to compare the size data. The RS775 motor size is larger than the ordinary RS550 motor gearbox size. Please ensure that it can be installed perfectly!

What else should I pay attention to?

Please make sure to compare the size, voltage, and power before purchasing.

.

2PCS RS775 24 Volt 280 Wat Drive Engine With Gear Box For Power Wheel Motor Upgrade 18V.Ultra High Power and Torque Require Matching with Control box of 40A or Above and Fuse of 25A or Above, Otherwise there is Risk of Damaging the Capacitor

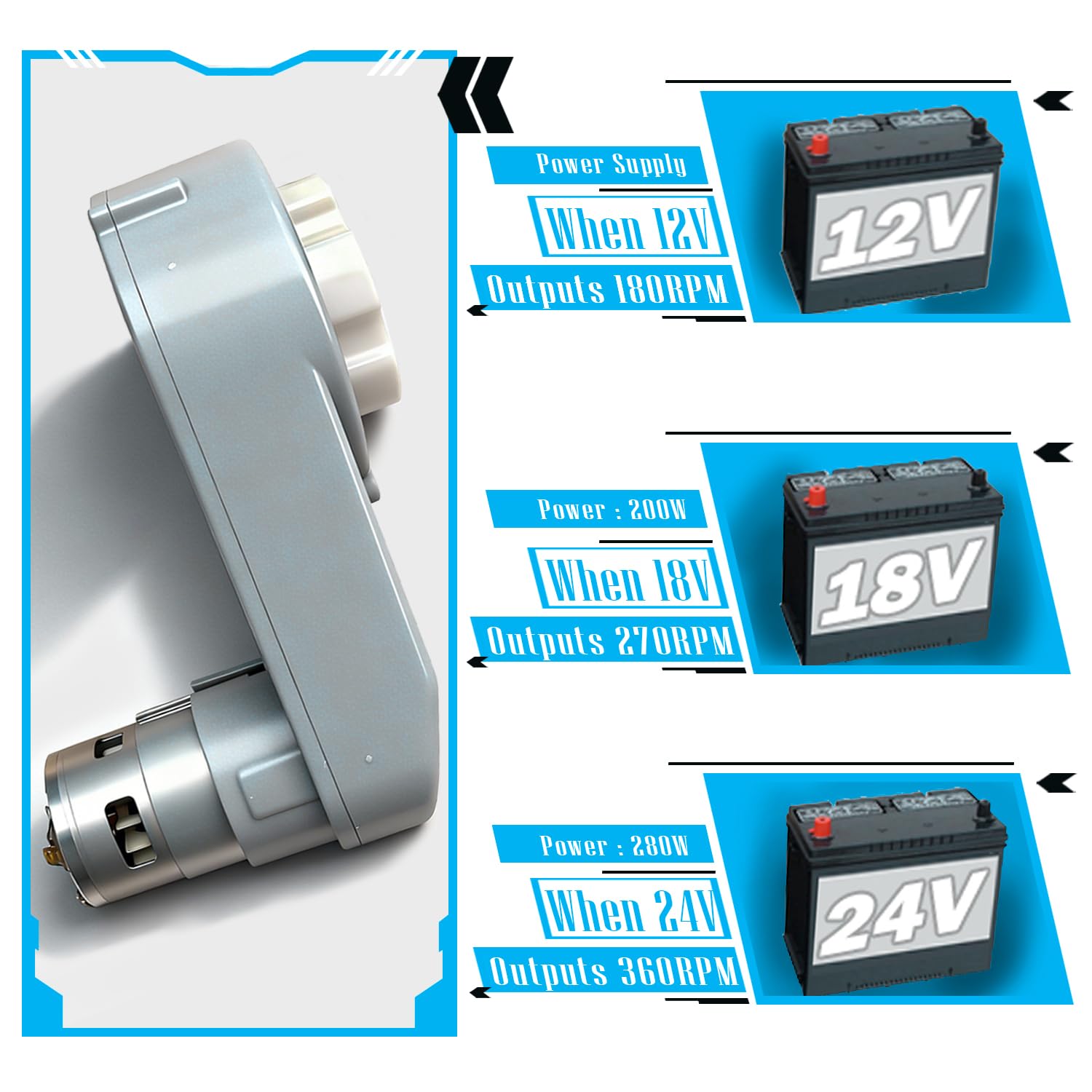

18V DC Motor Engine for Power Wheel Ride On Cars Upgrade. When 24V Power Supply, Power is 280W, And the Gearbox Outputs 360RPM Per Minute. When 18V Power Supply, The Power is 200W, And the Gearbox Outputs 270RPM Per Minute. When 12V Power Supply, The Gearbox Outputs 180RPM Per Minute

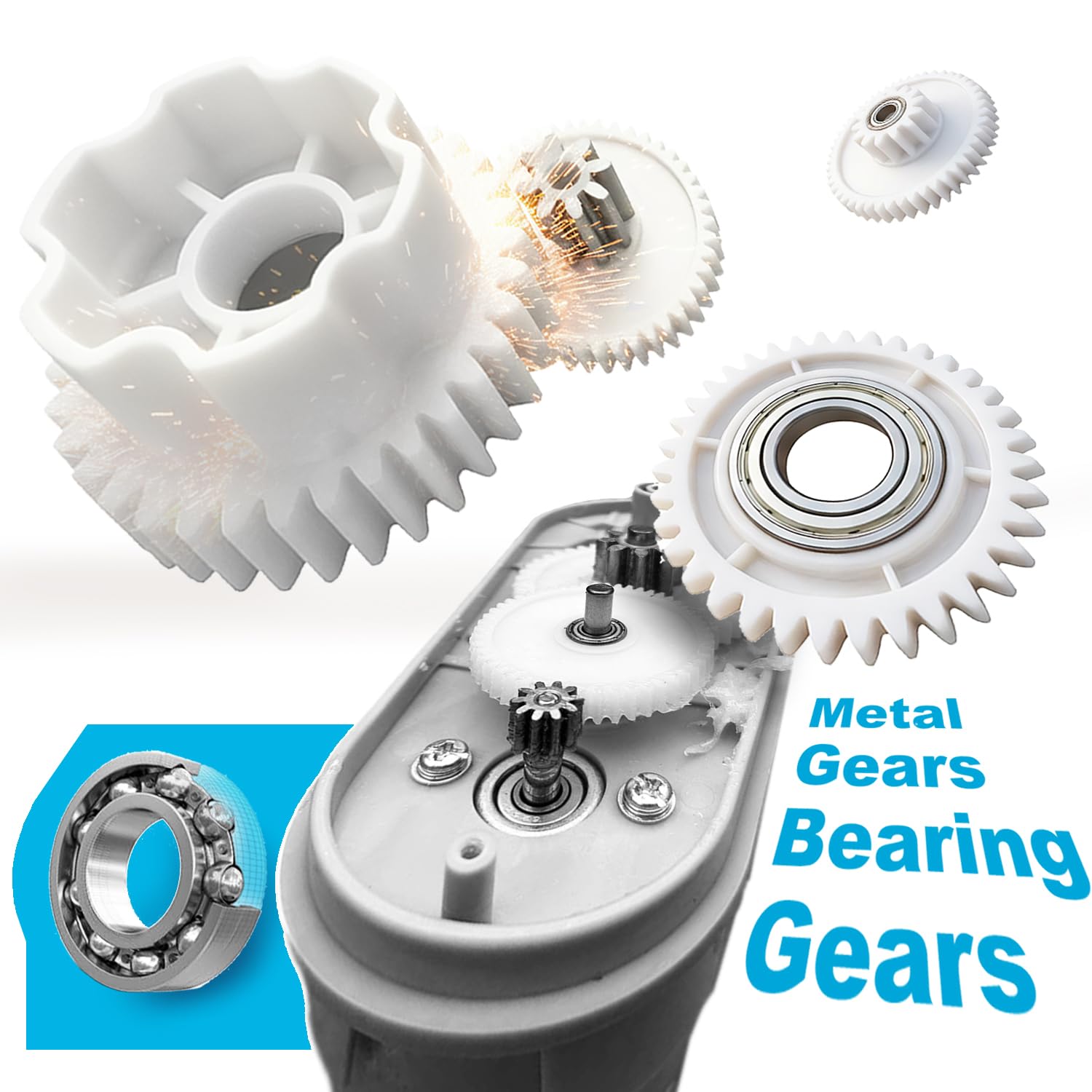

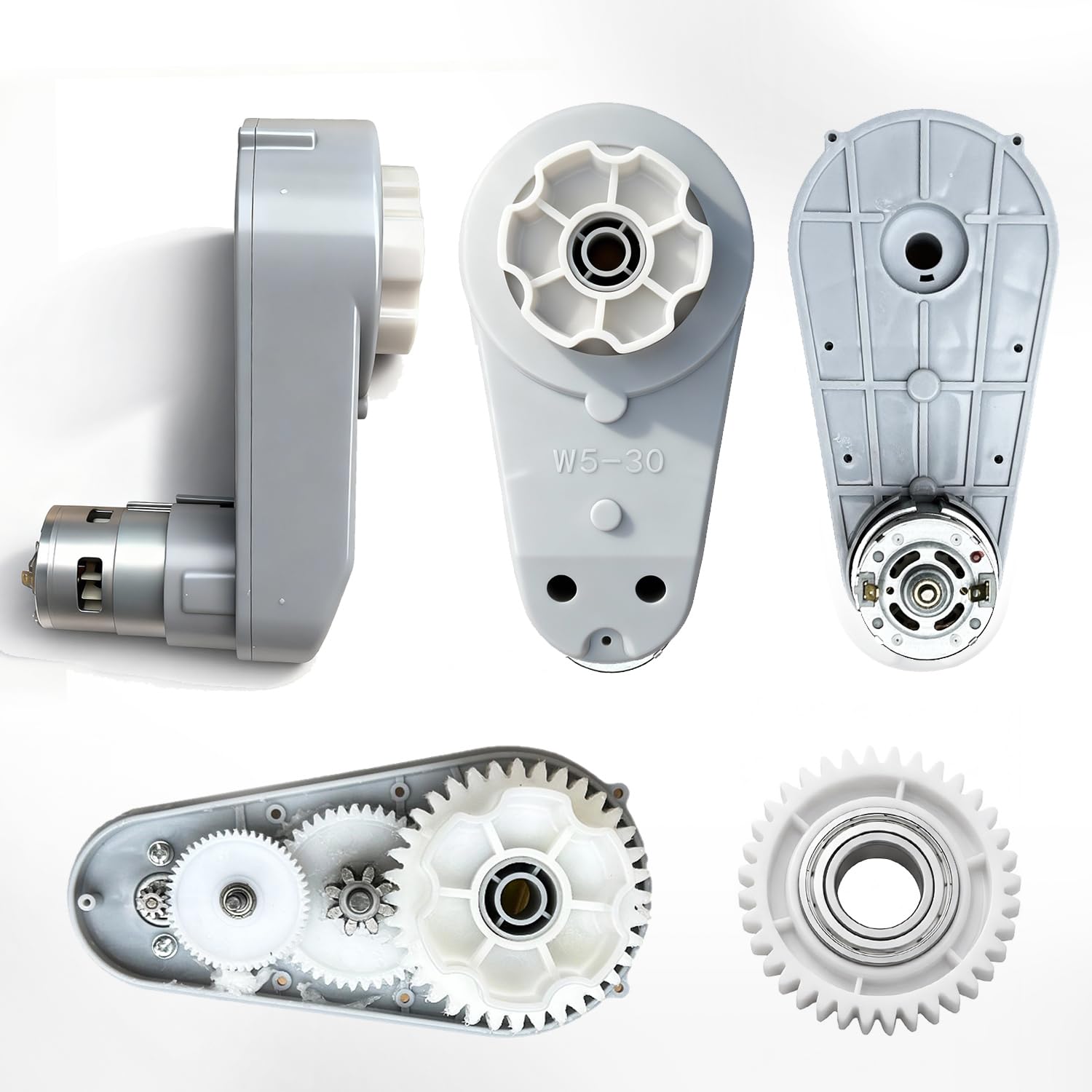

The GearBox Shell Uses High-Strength Composite Materials, Which Are Not Deformed and Stronger. Both the Small and Large Gears Have Built-in Bearings to Reduce Friction and Improve Service Life. The Middle Gear Adopts Metal Gear
The Gearbox Speed Ratio Is 1:75, The High Speed Ratio Makes The Output Higher Speed.The Motor Power Is 280W, And The High-Power Motor Guarantees A Higher Torque Output.

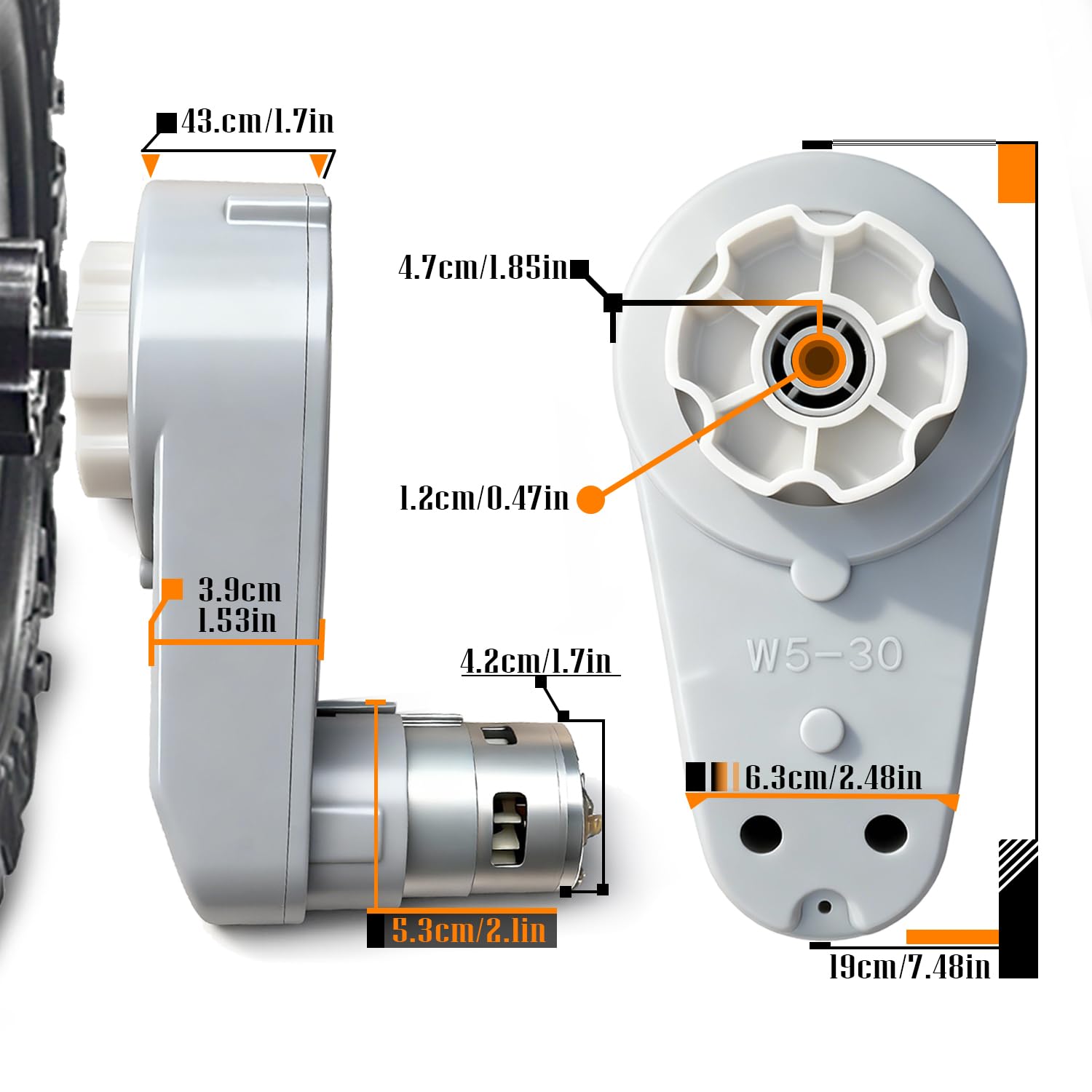

Please Carefully Compare The Size of Original Motor Gearbox，Shaft Hole Diameter: 12mm (0.47″); Length: 185mm(7.28″) Max Width: 92mm(3.62″); Motor Diameter: 40mm(1.574″),One-Click Installation Wires,Item Is Easy To Replace And Is For Kids Ride On Cars,It Is Suitable For Replacing The Gearbox With 6 Plum Blossoms
It is Designed To Be Used With 24V Battery. If Your Toy Car Is 12V, It Can Also Be Used With 12V Battery, But The Speed Will Be Reduced By Half. Due To The Design Of The Gearbox, It Will Still Provide A Very Fast Speed.
The Installation Holes for the Motor Gearbox of this Motor will be Larger than Those of RS550 (Due to the Larger Diameter of the Motor). Please Carefully Measure all Dimensional Data before Purchasing to Ensure a Perfect Installation
