PEMENOL 12V Red Fahrenheit Digital Temperature Meter -76F~999F LED Display with Industrial Grade 0.5m K-Type Thermocouple Temperature Sensor M6

Product description

K-type Thermocouple Thermometer

Fahrenheit thermometer

Stainless steel M6 probe

Red Digital LED Display

High Temperature Tester

Use steps

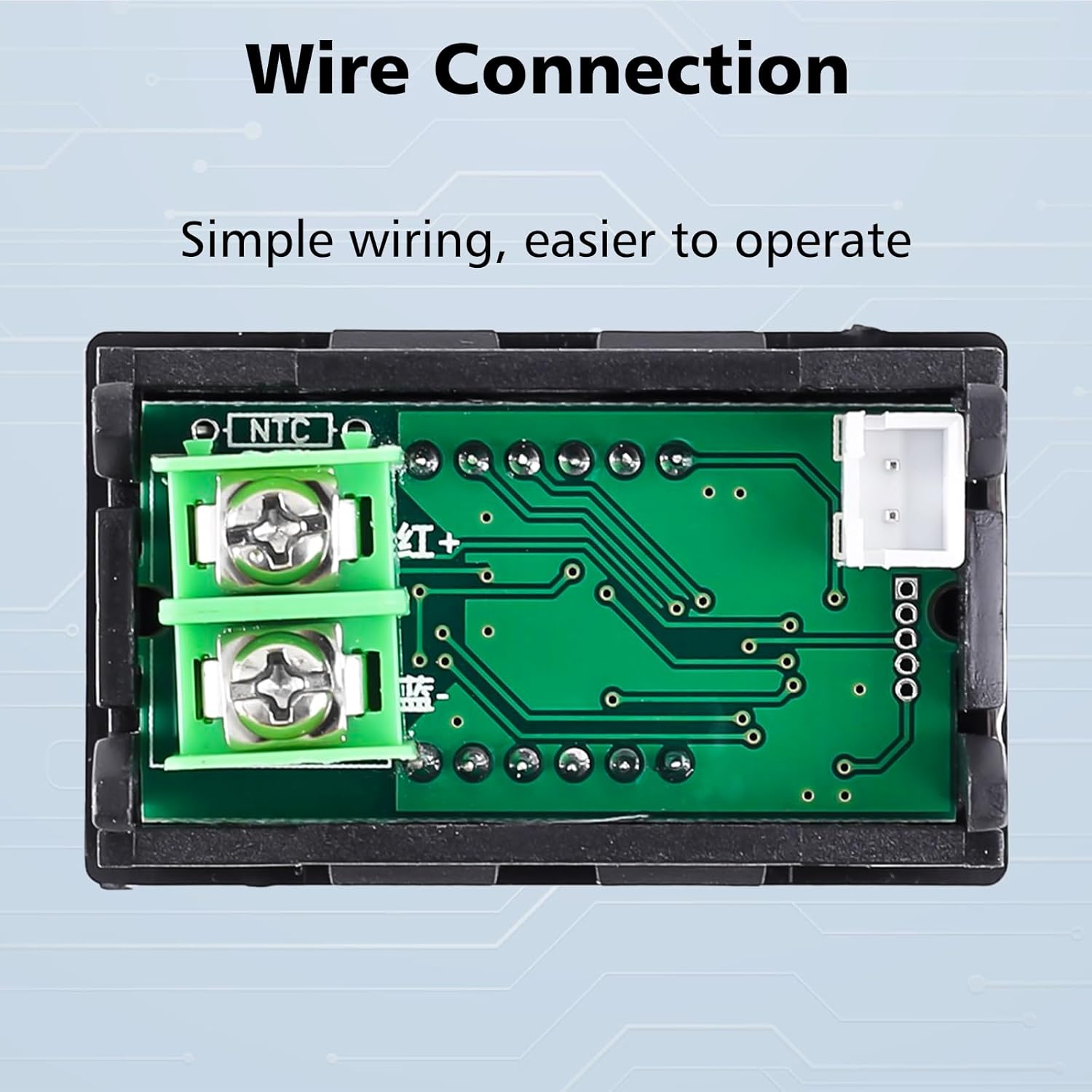

1>.Connect sensor to display screen in right terminal.

2>.Place the sensor in the correct position.

3>.Connect to power supply white socket.Pay attention to the connect direction.

K-type thermocouple

Features

Use industrial grade K-Type sensor

Red Digital LED Display

Measuring temperature range is wide

High precision detection

Display in Fahrenheit

With temperature compensation function

Effectively avoids the influence of ambient temperature on the sensor, and the temperature measurement is more accurate.

Sensor wire should not be connected incorrectly Power wire attention direction Temperature error rate: 1% The measurement temperature error is normal within 10℃

Parameters

Product name: K-Type High Temperature Thermometer

Work voltage:DC 4.0V-28V

Temperature type:Fahrenheit

Measure range:-76F~999F

LED Display:Red 3Bit

Length of sensor:0.5meter

Probe thread:M6

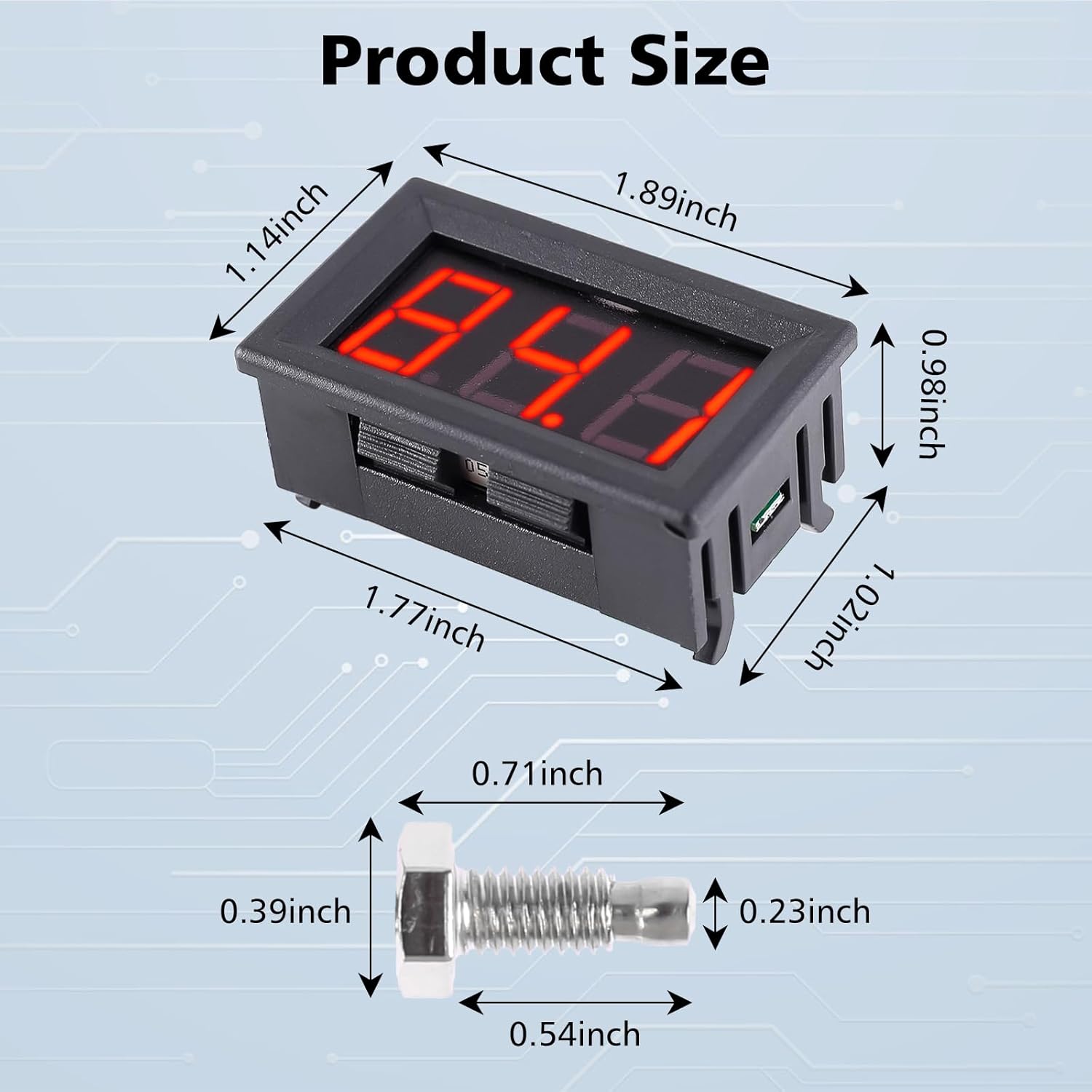

Size for display:48*29*25mm

Measurement accuracy:1F(It is 0.1F when temperature is -9.9~99.9F)

Package:

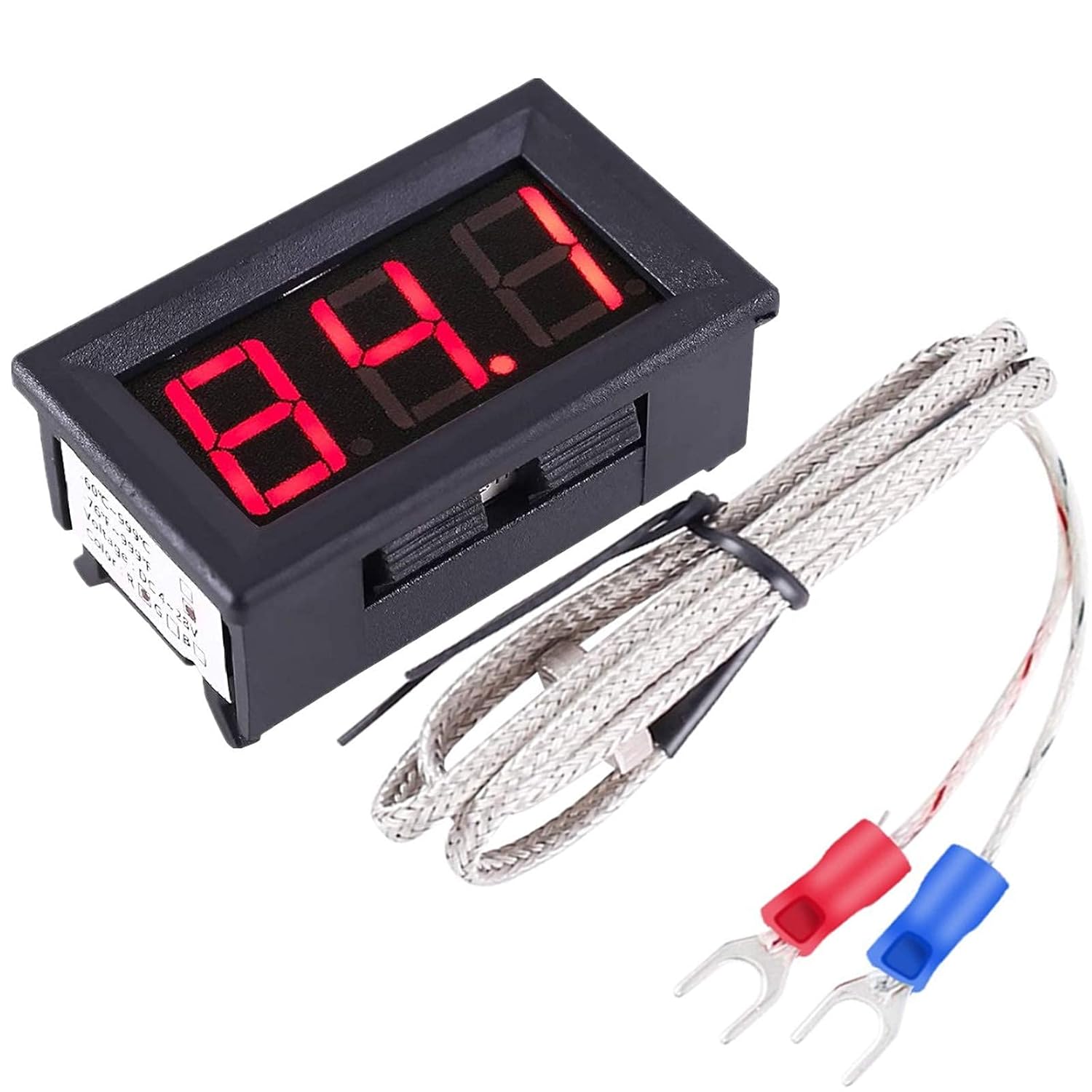

1pcs K-Type High Temperature Thermometer

1pcs K-Type Thermocouple

1pcs 15cm 2P XH2.54-2P Cable

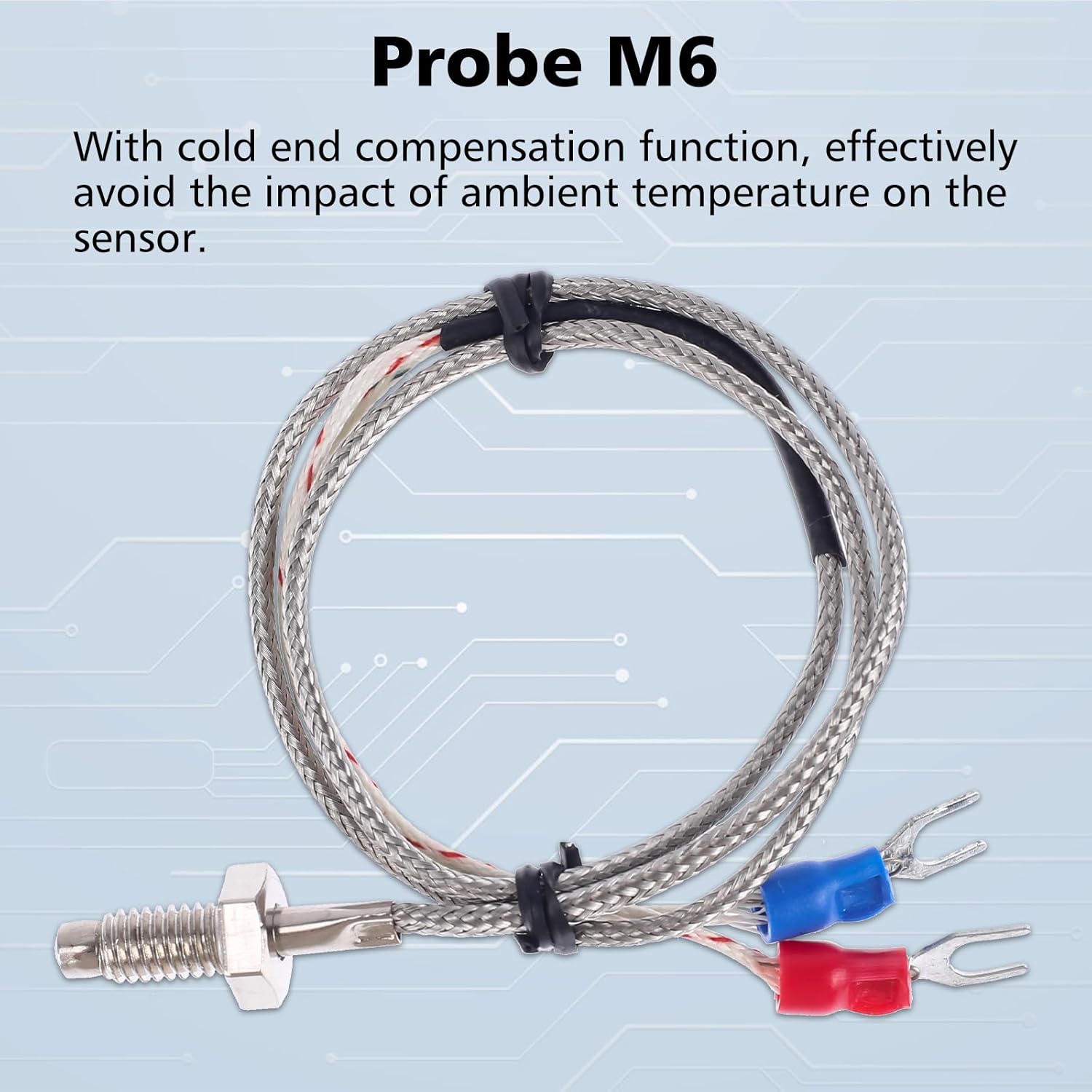

M6 K type thermocouple temperature sensor high temperature probe

0.5M K-type thermocouple

Metal shielded wire, more durable

Threaded probe, easy to install

Firm wiring nose, not easy to fall off

The sensor probe uses a moderate length stainless steel protective outer cover which is shrink-wrapped to wires at the display side and terminates into the probe at the sensor side. The sensor/probe has a threaded sleeve that permits a solid contact to the material being measured, being this way a person would be able to glue a bolt to the contact area and thread the sensor into that until the probe made contact.

Oven Temperature Detection

Home Temperature Detection

Vegetable Cultivation

Industrial Temperature Measurement

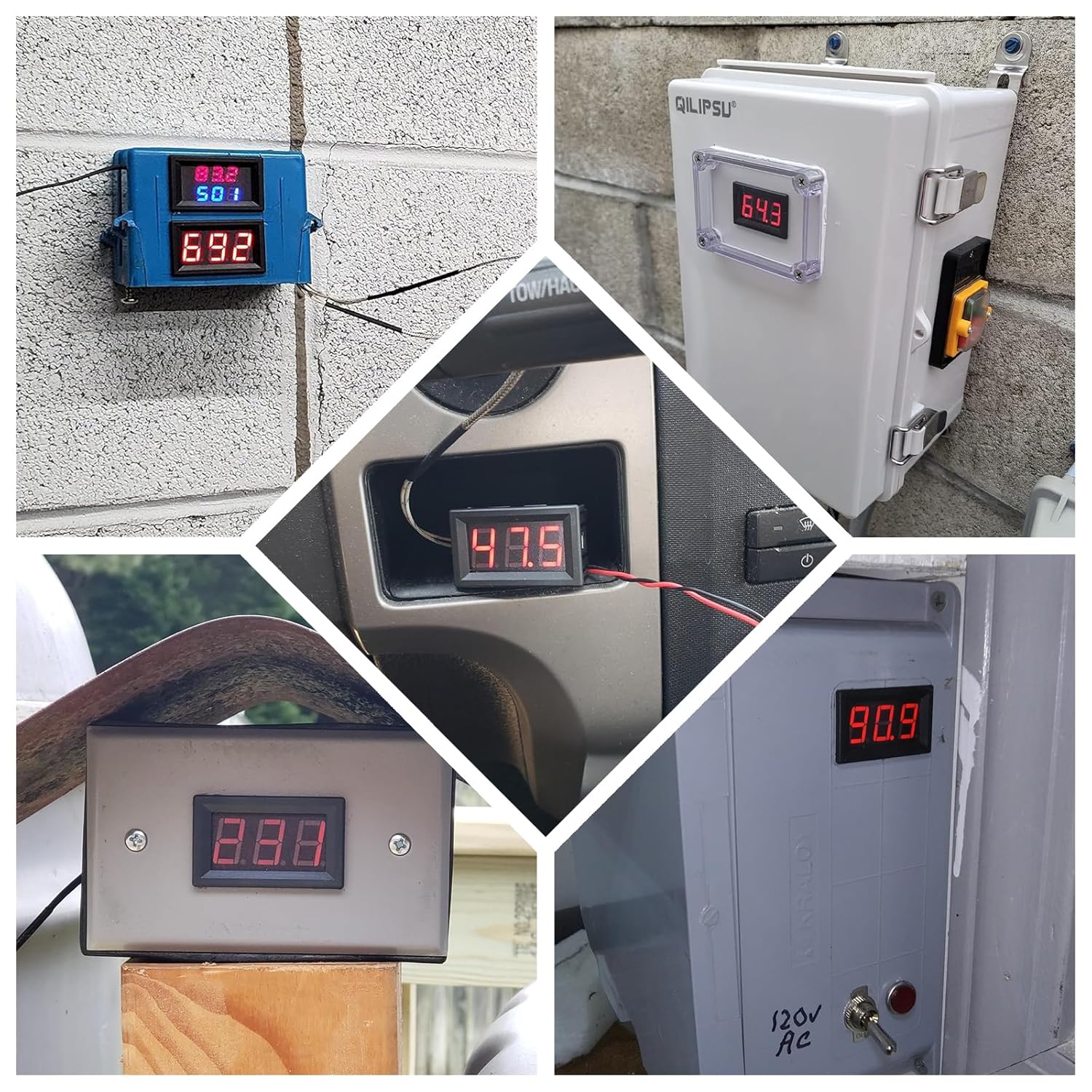

Application

Vegetable cultivation

Production workshop

Industrial temperature measurement

Measurement of temperature in the life

Applied to the measurement of boilers, air, liquids, etc

It can be embedded in an instrument to measure certain specific temperatures

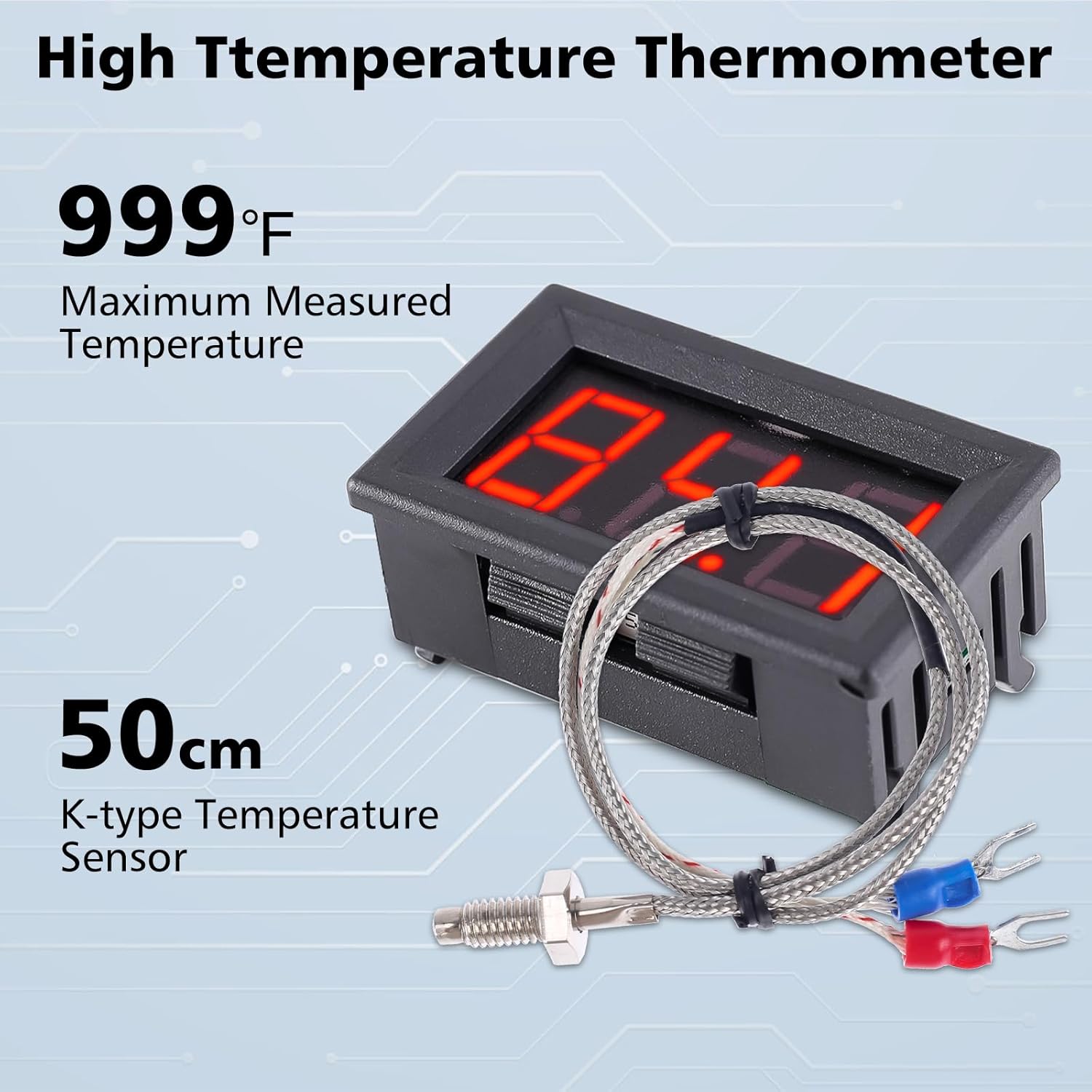

High Temperature Measurement: The K-type thermocouple thermometer is capable of measuring temperatures ranging from -76°F to 999°F. For temperature measurements within the range of -9.9°F to 99.9°F, the minimum temperature measurement increment is 0.1°F, while for other temperature ranges, the increment is 1°F. The thermometer requires a DC power supply voltage of 4V to 28V.
LED Digital Display: Equipped with a LED digital display, this device boasts a larger and brighter font, which makes it effortless to observe the temperature status. Whether in dimly lit or bright environments, the display is easily visible, providing accurate readings at a glance.
Industrial Grade K-type Thermocouple M6 Probe: The thermometer utilizes a K-type thermocouple sensor that incorporates a cold junction compensation function, effectively minimizing the influence of ambient temperature on the sensor and resulting in highly accurate temperature measurements. However, due to the wide temperature measurement range, some measurement errors may occur, which is considered normal within a range of ±10℉/1%.
NOTE: We highly recommend wrapping the probe with insulating tape to prevent static interference. If possible, it is better to use an insulated probe to ensure accurate temperature readings. Taking these precautions will help maintain the reliability and precision of the thermometer.
Application: This thermometer finds wide application in industrial temperature measurement. It can be used for measuring temperature in boilers, air, liquids, and various other mediums. Its versatility and accuracy make it an essential tool for industrial and personal use alike.
