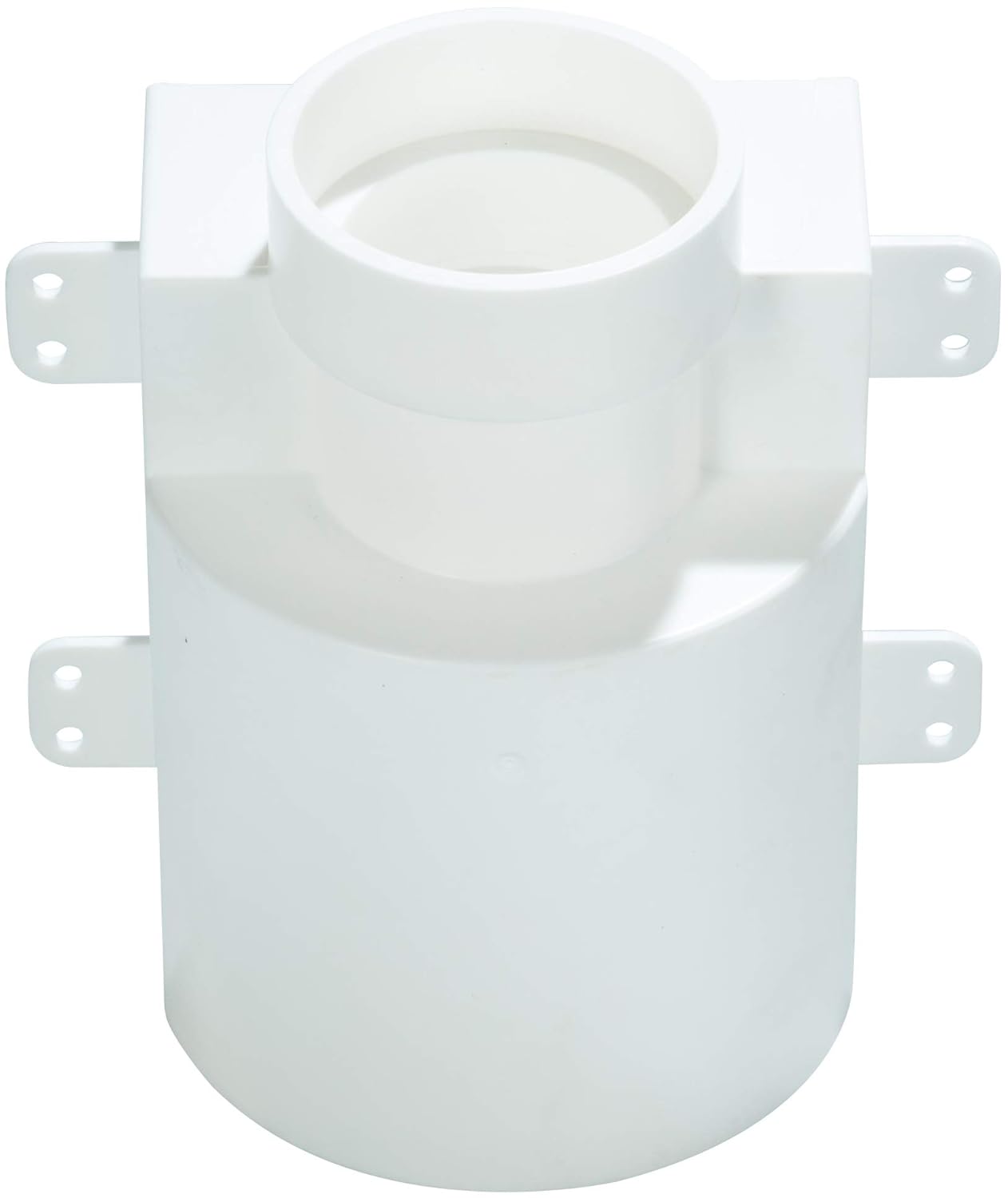

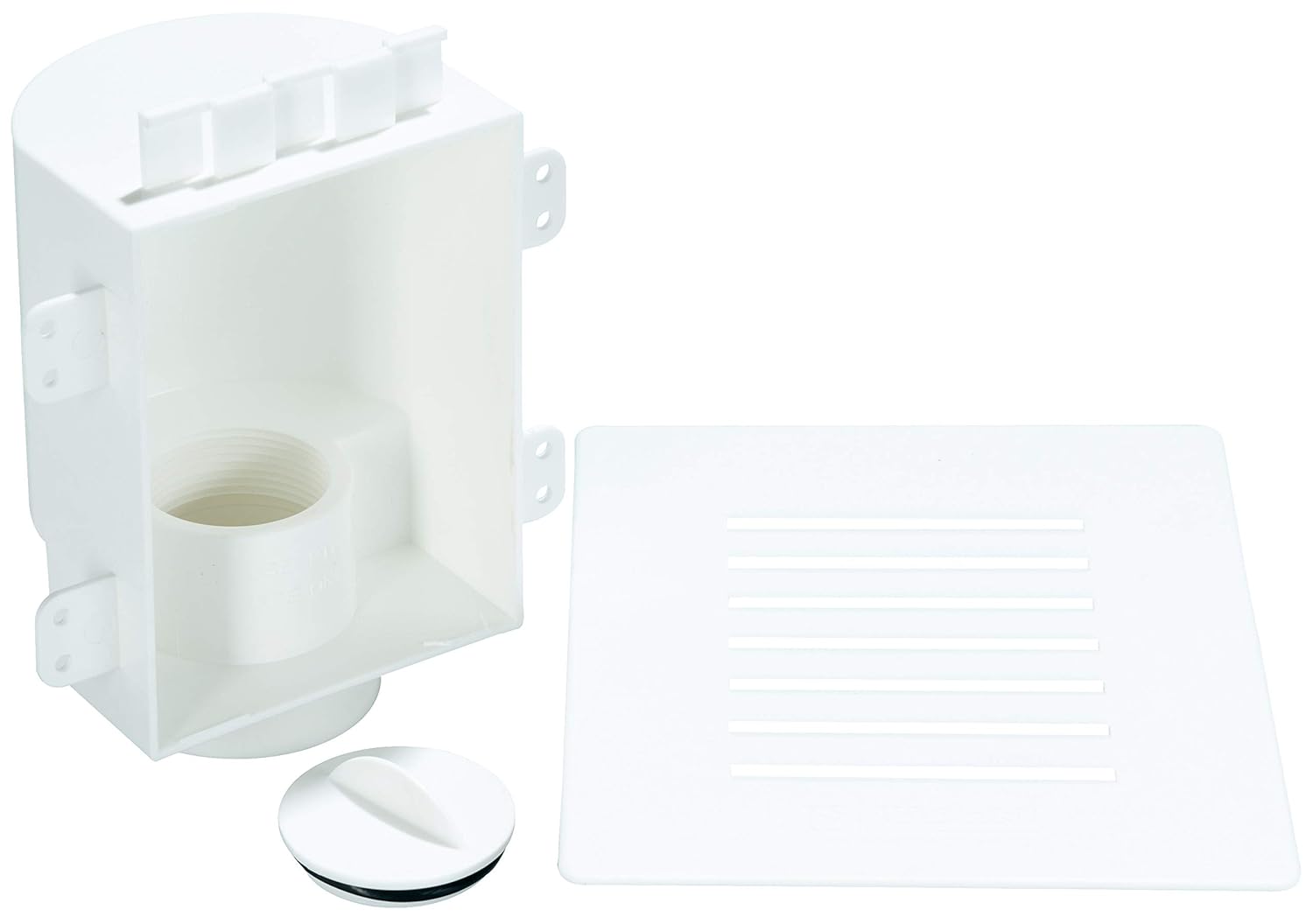

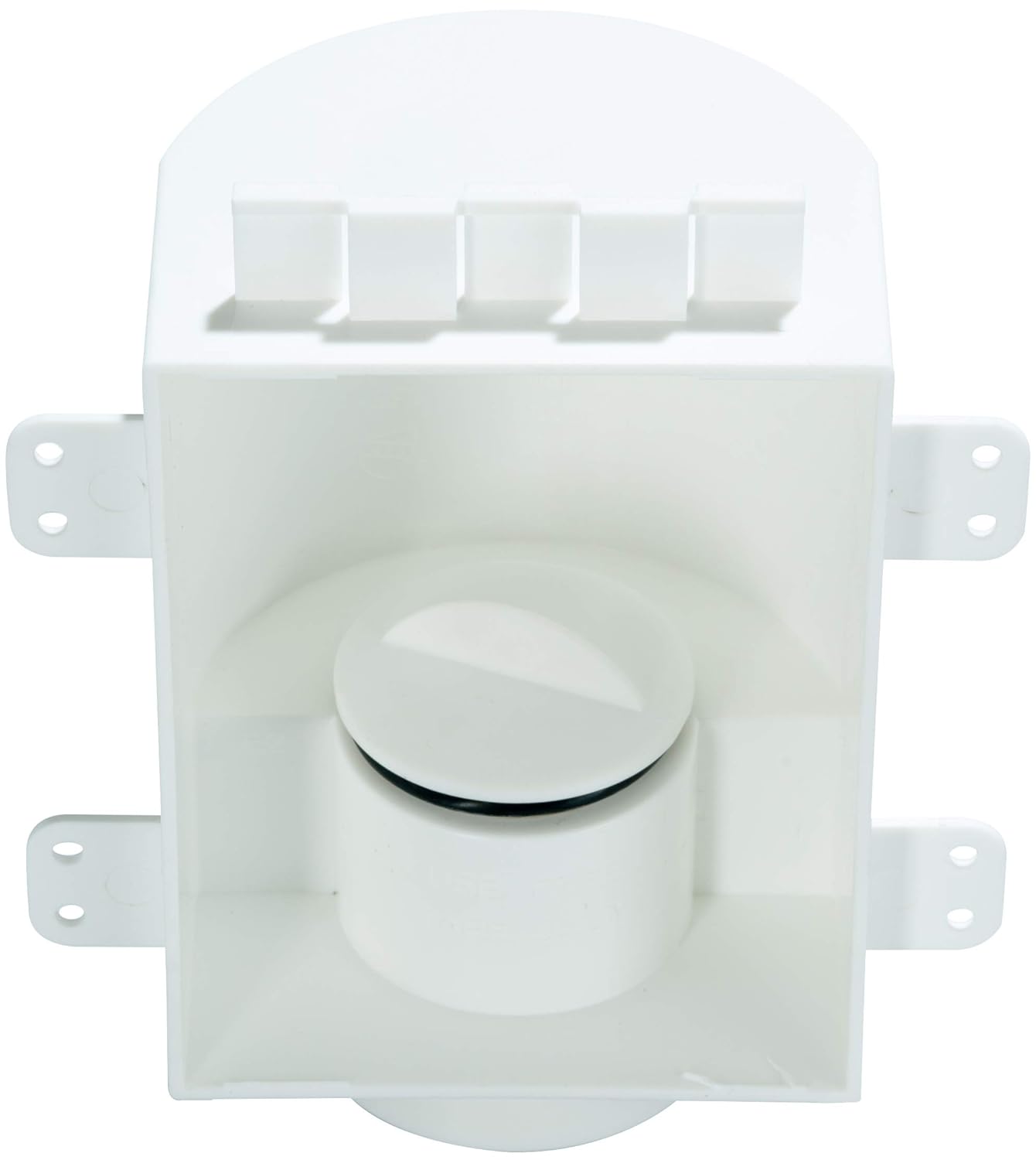

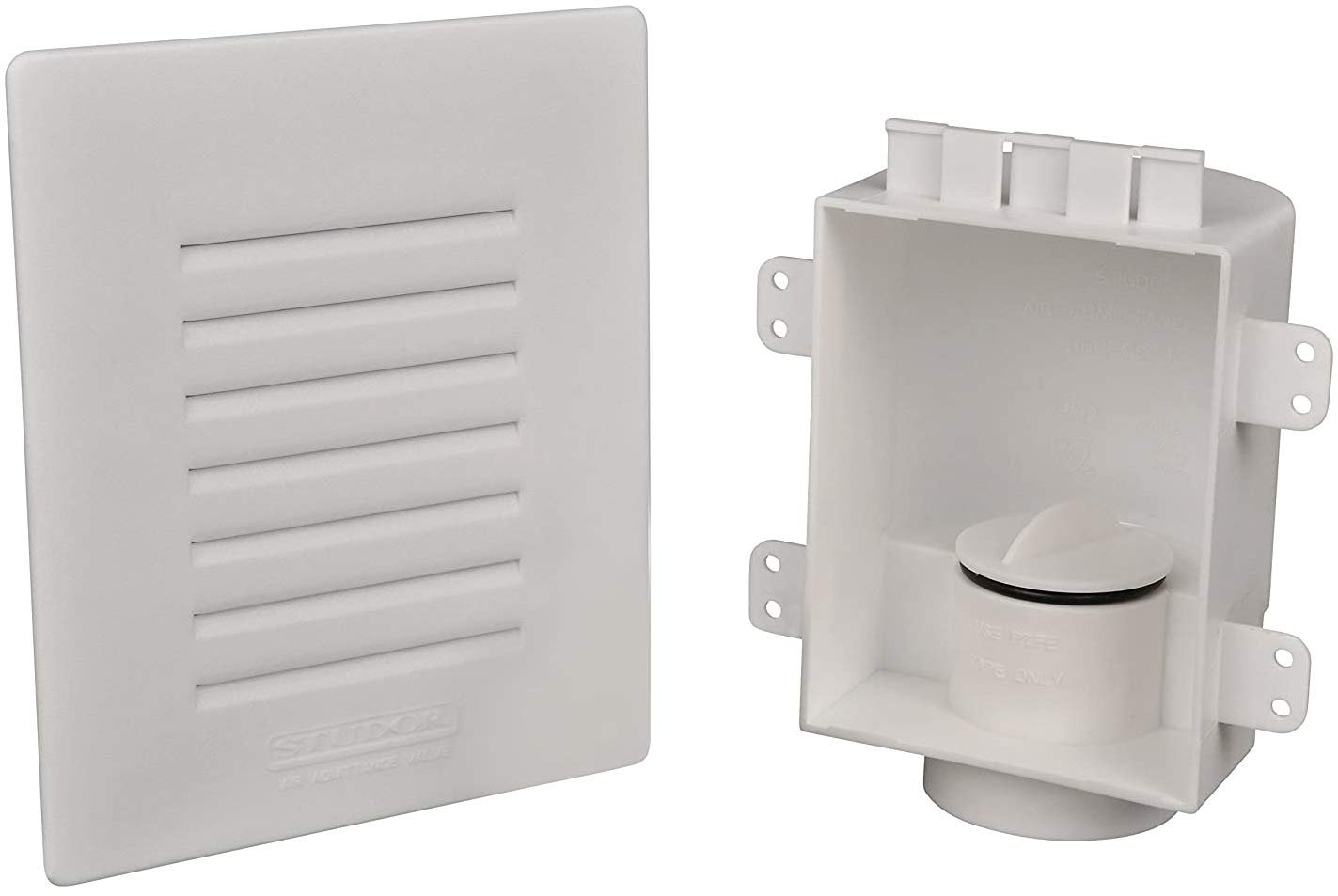

Studor 20380 Recessed Air Admittance Valve Box and Grill

When installation of a Studor Air Admittance Valve is not feasible in an existing cabinet, the Studor Recessed Box aesthetically conceals valves while providing accessibility as required by local codes. The small, low profile box is easy to install and contains a sleek grille for a clean finish. Its integral test cap is an industry first. Studor Mini Recess Box with Redi-Vent, Length: 3.625 Inch, Width: 5.875 Inch, Height: 7.125 Inch, 8 x 6.625 Inch Grill, Includes: One-Piece Snap-On Grille, For Use With: Mini-Vent®, Tec-Vent or Redi-Vent Air Admittance Valves.
Works with Mini-Vent, Tec-Vent or Redi-Vent Air Admittance Valves
Connects to 1-1/2-inch or 2-inch ABS or PVC piping
One-piece construction includes built-in mounting flange and needs no additional framing or support when installed in stud bay

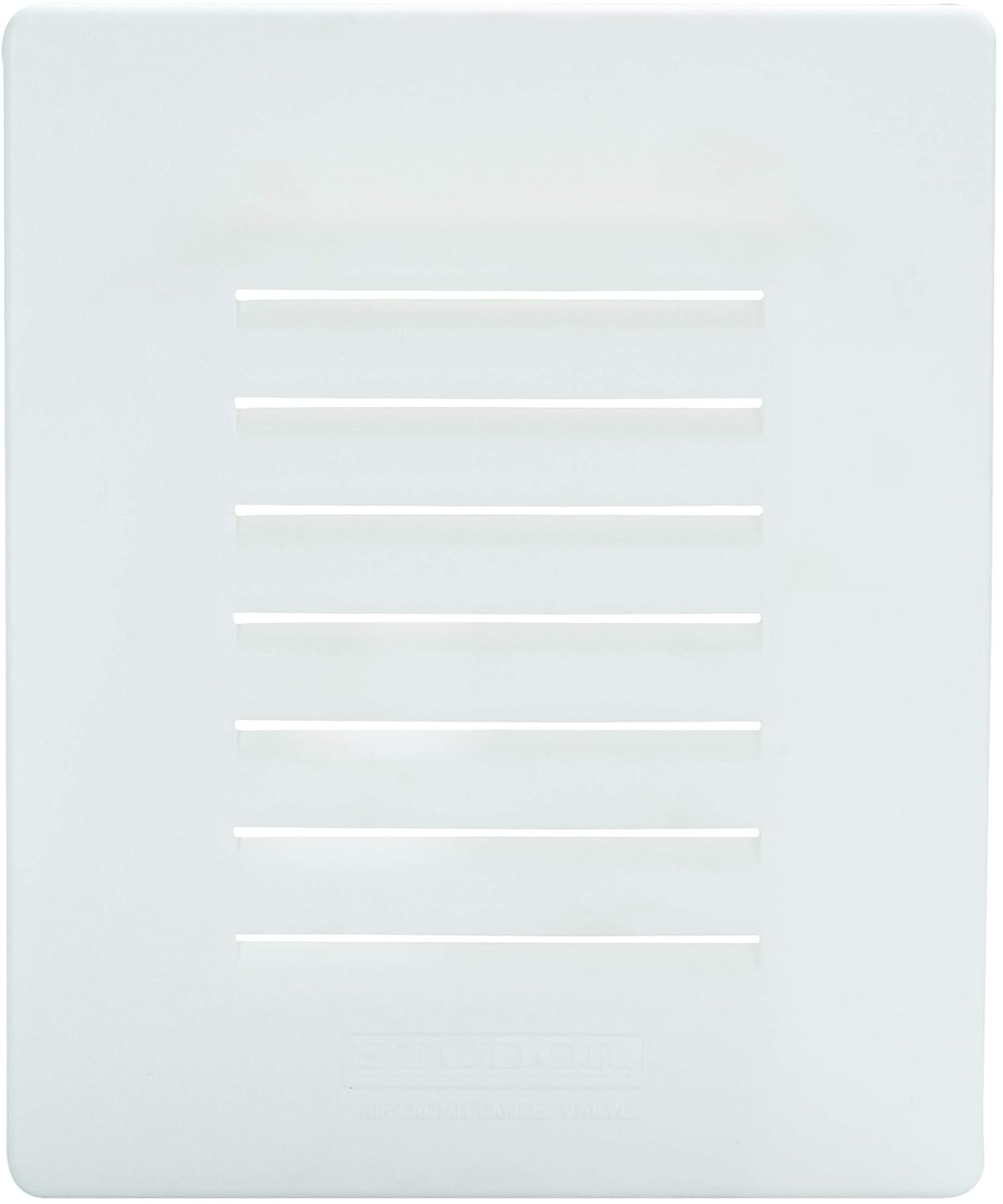

Snap-on grill included; conceals AAV (not included) from view and allows accessibility as required by code
White box (with grill) measures 6-5/8 inches wide by 8 inches high
