Taiss Rotary Switch 4 Position 3 Speed Fan Switch 12A 250V/16A 125V Metal Fan Heater Speed Selector Switch with Knob and terminals F-040

Product description

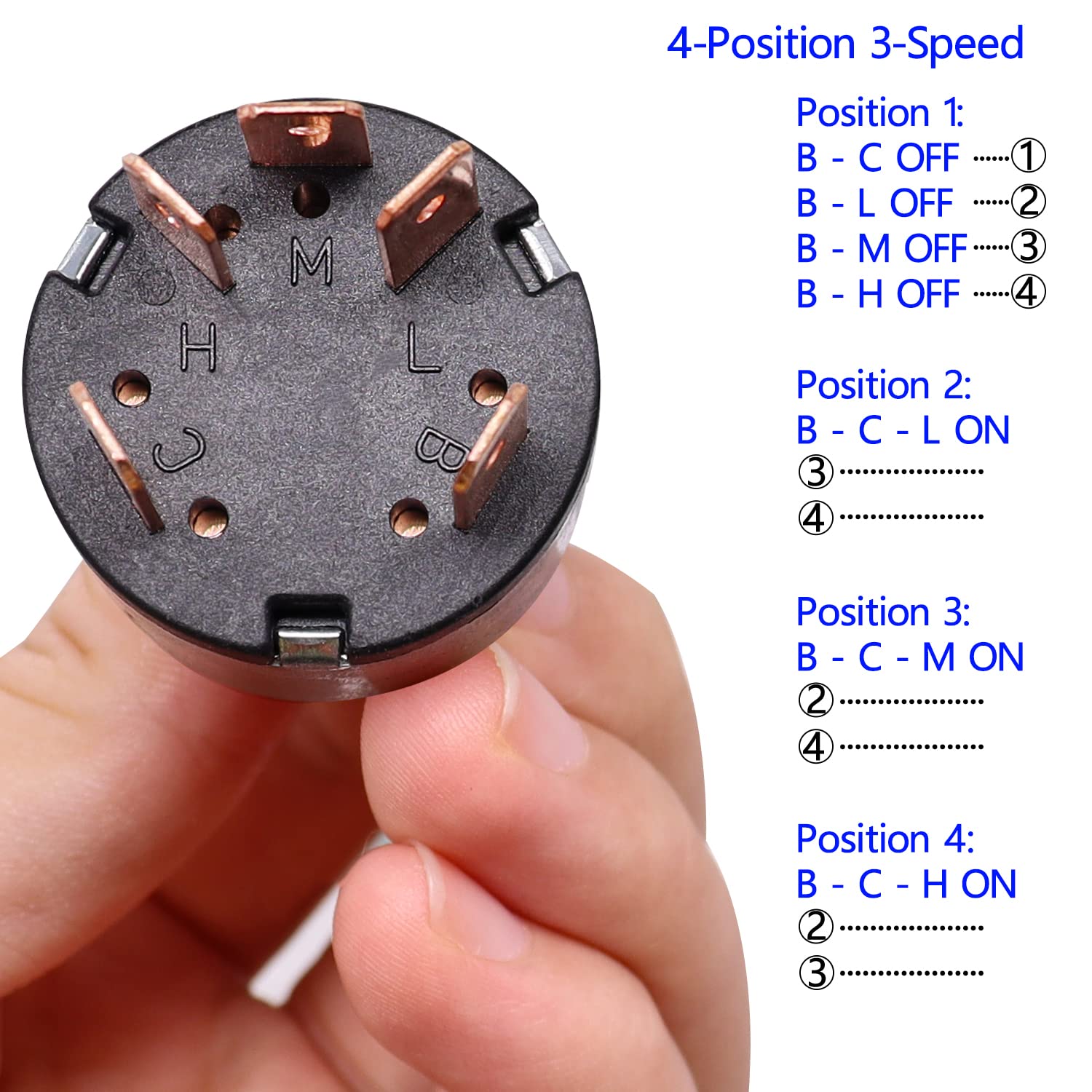

Position 1:(B – C)/(B – L)/(B – M)/(B – H)OFF Position 2:(B – C – L)ON,(B – M)/(B – H) OFF Position 3:(B -C – M)ON,(B – L)/(B – H)OFF Position 4: (B – C – H)ON,(B – L )/(B – M)OFF

Materials: Plastic,metal.4 Position 3 SpeedRated Voltage & Current:16A 120VAC/12A 250VAC;5 terminals.Mechanical life:10,000 cycles

Product description About products

Product name:4 Position Rotary Switch(4 Position 3 Speed);Action Type:latching.

Product size

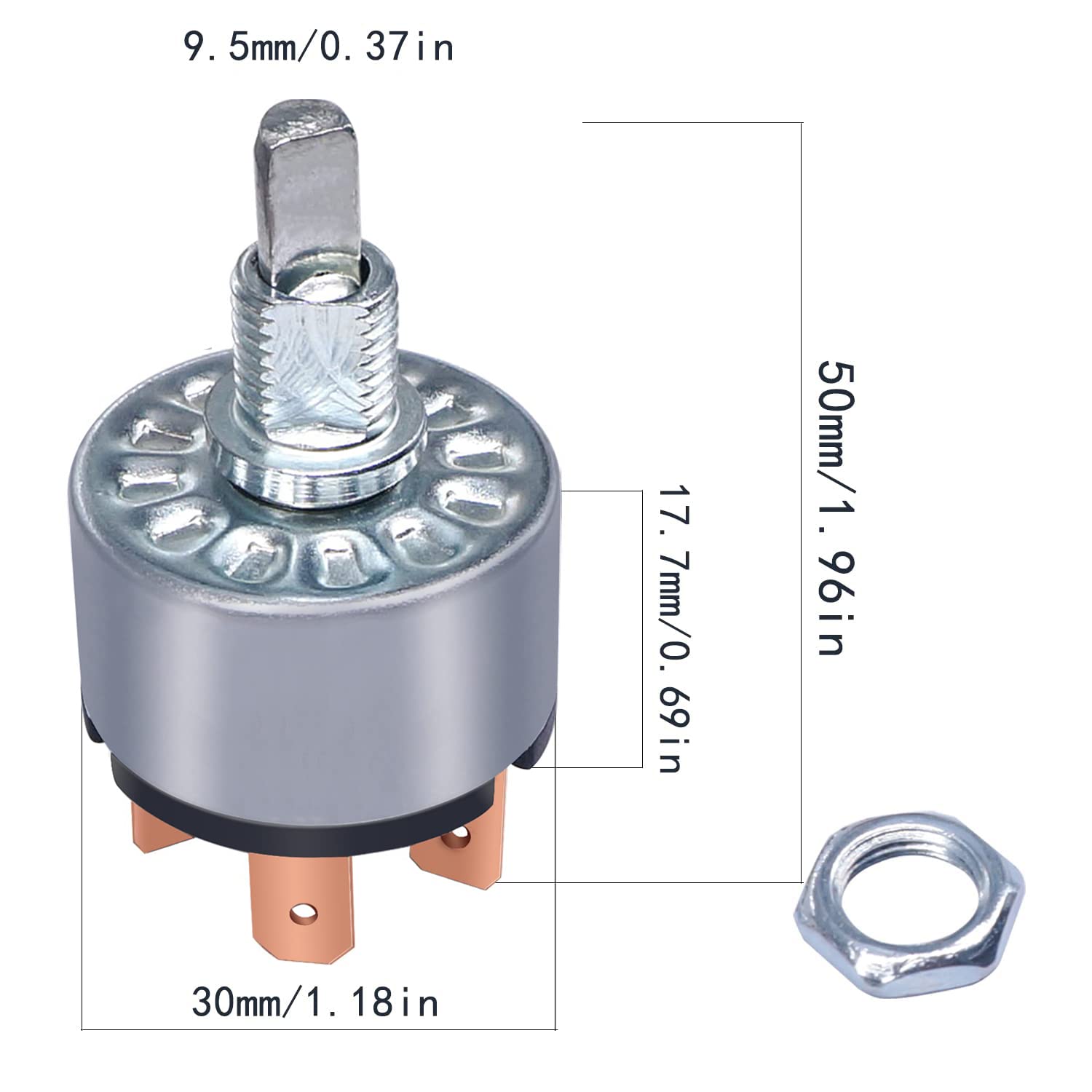

Overall dimensions:50.5mm/30mm/30mm(2in/1.2in/1.2in);Thread diameter:9.7mm/0.38in.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.5 out of 5 stars 380

4.5 out of 5 stars 380

4.2 out of 5 stars 475

4.2 out of 5 stars 475

Price

$9.99$9.99 $31.99$31.99 $15.99$15.99 $21.99$21.99

Position
5 Position 3 Position Coaxial Cable Stripper,coax cable crimper,with 20 PCS F Style RG6 Compression connectors Coaxial Cable Compression Tool Kit,with 20 PCS F Style RG6 Compression connectors

Action Type
latching latching no data
no data

Model
LW26-20-4/2 LW26-63/3 no data
no data

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 457

4.6 out of 5 stars 91

4.7 out of 5 stars 129

4.6 out of 5 stars 152

Price

$7.99$7.99 $24.99$24.99 $7.99$7.99 $8.99$8.99

Action Type
latching Momentary Universal Automotive ground straps 4 Styles shelf pegs

Voltage and current
13A-125V/10A-250V 12V DC 13″ x 1/2″ and 10″x 1/2″ 4 Styles shelf pegs,L-shaped bracket/Flat Spoon shelf pegs/Cylindrical Shaped Shelf Pins/Dowel Pin

Product name:4 Position Rotary Switch(4 Position 3 Speed);Action Type:latching.
Product size:Overall dimensions:50.5mm/30mm/30mm(2in/1.2in/1.2in);Thread diameter:9.7mm/0.38in.Materials: Plastic,metal.
Product parameters:Mechanical life:10,000 cycles;Rated Voltage & Current:16A 120VAC/12A 250VAC;5 terminals.
Easy to use:4 positions(0-1-2-3):Position 1:(B – C)/(B – L)/(B – M)/(B – H)OFF;Position 2:(B – C – L)ON,(B – M)/(B – H) OFF;Position 3:(B -C – M)ON,(B – L)/(B – H)OFF;Position 4: (B – C – H)ON,(B – L )/(B – M)OFF.

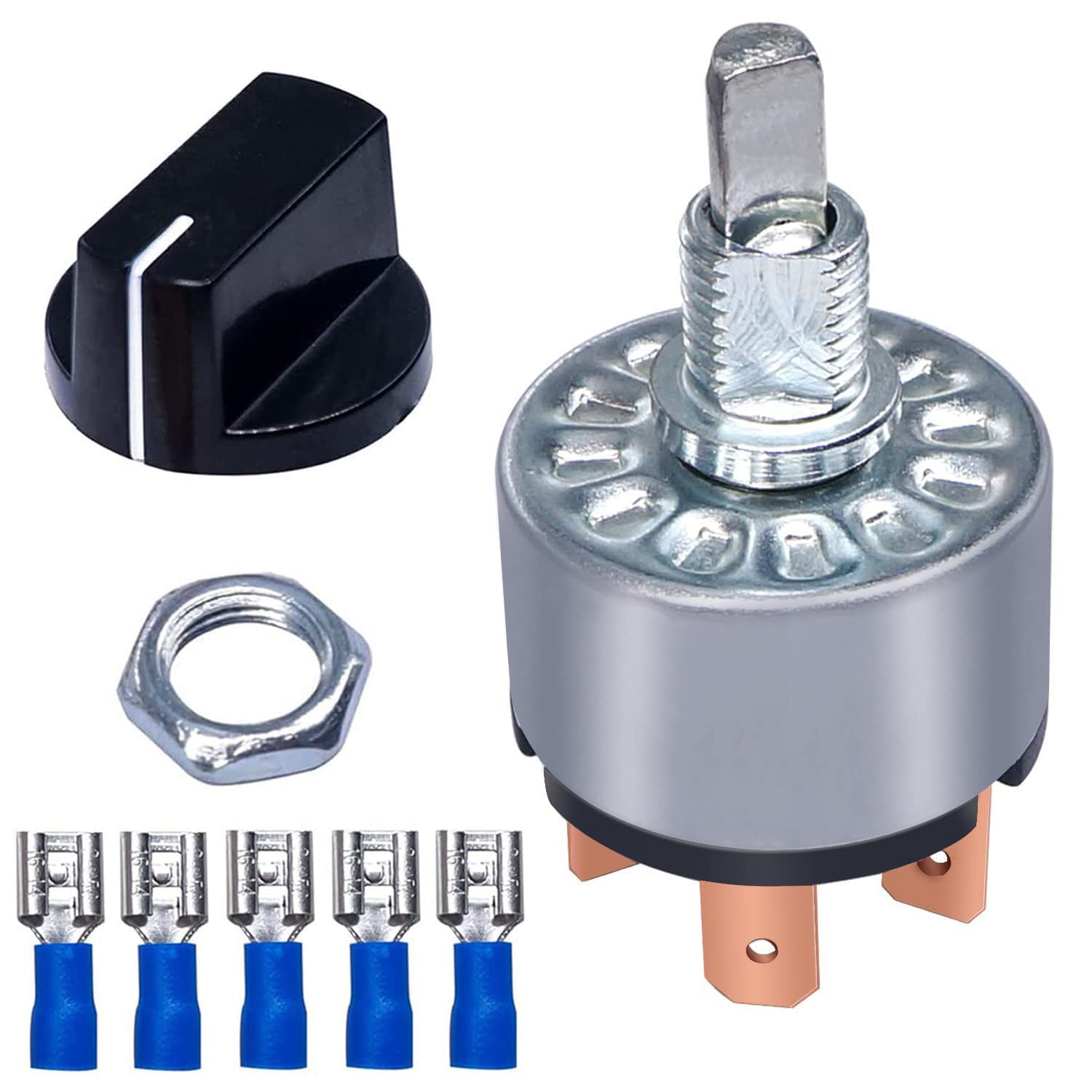

Product packaging:1 x Rotary Switch+1 x Knob+1 x nut + 5 x terminals.
